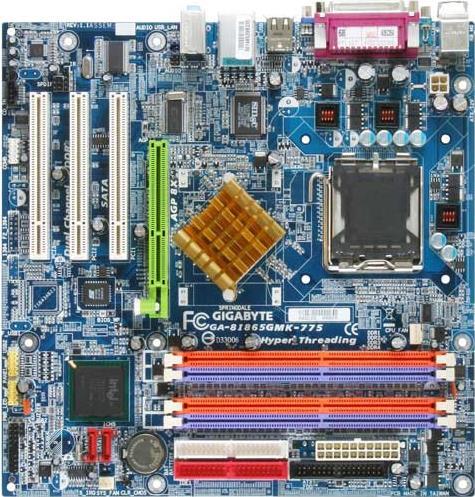

GA-8I865GMK-775 (Rev. 1.0)

Rev. 1.0Rev. 1.1Rev. 2.0
OverviewSpecificationsSupportNews & Awards

Specifications

  • CPU
    1. LGA 775 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 800 / 533 MHz FSB
  • Chipset
    1. North Bridge : Intel® 865G GMCH
    2. South Bridge : Intel® ICH5
    3. ADI AD1888 CODEC
    4. EP82562G chip (10/100Mbit)
  • Memory
    1. Type: Dual Channel DDR 400 / 333 / 266 support
    2. Max capacity: 4 GB (Please read FAQ for further information)
    3. DIMM slots: 4

    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Expansion Slots
    1. 1 x AGP 8x slot
    2. 3 x PCI slots
  • Internal I/O Connectors
    1. 2 x Serial ATA ports
    2. 2 x USB 2.0 connectors (4 ports by cable)
    3. S/P DIF out connector
    4. 2 x IDE connection (UDMA 33/ATA 66/ATA 100)
    5. 1 x FDD port
    6. CD in connector
    7. 1 x COM port
    8. 1 X front audio connector
    9. 1 x IR connector
  • Back Panel Connectors
    1. 1 x VGA port
    2. 4 x USB 2.0 ports
    3. 1 x RJ45 LAN port
    4. 1 x LPT port supporting Normal/EPP/ECP mode
    5. 3 x Audio ports (Line-in / Line-out / MIC)
    6. 1 x COM port
    7. 2 x PS/2 ports (Keyboard/Mouse)
  • H/W Monitoring
    1. System voltage detection
    2. CPU / System temperature detection
    3. CPU / System fan speed detection
    4. CPU Smart fan control
  • BIOS
    1. Use of licensed AWARD BIOS
    2. Supports Q-Flash
  • Form Factor
    1. Micro ATX
    2. 24.4cm x 24.4cm
  • Other Features
    1. EasyTune™ 5
    2. @BIOS
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
