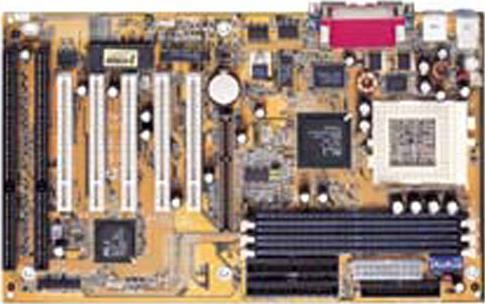

GA-5AX (Rev. 5.2)

EspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Socket 7 for Intel® MMX™, AMD K6® -2, K6® -3, IBM® /Cyrix® , IDT™ processors
    2. Supports CPU multiplier 1.5/2.0....../6.0 for future processors
    3. 66/75*/83*/95/100/105*/110*/115*/120*/125*/130*/135*/140* MHz FSB
    4. CPU voltage 1.3V~3.5V
  • Chipset
    1. ALi Aladdin V (M1541 & M1543C) AGPset
  • Memoria
    1. 8MB to 768MB SDRAM size
    2. 3 x 3.3V DIMM sockets
    3. Supports 8/16/32/64/128/256 MB EDO/SDRAM DIMM module
    4. Supports ECC Type DIMM module (72 bits)
  • Puertos de Expansión
    1. 1 x AGP Slot Supports 66/133 MHz speed
    2. 5 x PCI slots supports 33MHz & PCI 2.2 compliant
    3. 2 x ISA slots
  • Controlador de E/S
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
  • BIOS
    1. 1Mbit flash RAM
    2. AWARD BIOS with enhanced ACPI feature for PC98/Win98 compliance, Green, PnP, DMI, INT 13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Diseño
    1. ATX, 4 layer PCB (30.7*18.4 cm)
  • Controlador
    1. ALi Ultra DMA 33/66 Bus Master IDE driver
    2. ALi AGP GART VxD driver
  • Otras Características
    1. Includes Wake-On-LAN header (WOL)
    2. Poly fuse for keyboard & USB overcurrent protection
  • Energía
    1. ATX power connector
    2. Power-on by K/B, LAN, RTC, Modem & Switch
    3. Power-off by K/B, Windows 98 Shut down & Switch
    4. Stop CPU fan when entering suspend mode
    5. 3 level ACPI LED support
  • Otras Descripciones
  • These drivers are for PCB 3.x, 4.x, and 5.x.
  • Procesador
    1. Socket 7 for Intel® MMX™, AMD K6® -2, K6® -3, IBM® /Cyrix® , IDT™ processors
    2. Supports CPU multiplier 1.5/2.0....../6.0 for future processors
    3. 66/75*/83*/95/100/105*/110*/115*/120*/125*/130*/135*/140* MHz FSB
    4. CPU voltage 1.3V~3.5V
  • Chipset
    1. ALi Aladdin V (M1541 & M1543C) AGPset
  • Memoria
    1. 8MB to 768MB SDRAM size
    2. 3 x 3.3V DIMM sockets
    3. Supports 8/16/32/64/128/256 MB EDO/SDRAM DIMM module
    4. Supports ECC Type DIMM module (72 bits)
  • Puertos de Expansión
    1. 1 x AGP Slot Supports 66/133 MHz speed
    2. 5 x PCI slots supports 33MHz & PCI 2.2 compliant
    3. 2 x ISA slots
  • Controlador de E/S
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
  • BIOS
    1. 1Mbit flash RAM
    2. AWARD BIOS with enhanced ACPI feature for PC98/Win98 compliance, Green, PnP, DMI, INT 13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Diseño
    1. ATX, 4 layer PCB (30.7*18.4 cm)
  • Controlador
    1. ALi Ultra DMA 33/66 Bus Master IDE driver
    2. ALi AGP GART VxD driver
  • Otras Características
    1. Includes Wake-On-LAN header (WOL)
    2. Poly fuse for keyboard & USB overcurrent protection
  • Energía
    1. ATX power connector
    2. Power-on by K/B, LAN, RTC, Modem & Switch
    3. Power-off by K/B, Windows 98 Shut down & Switch
    4. Stop CPU fan when entering suspend mode
    5. 3 level ACPI LED support
  • Otras Descripciones
  • These drivers are for PCB 3.x, 4.x, and 5.x.

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
