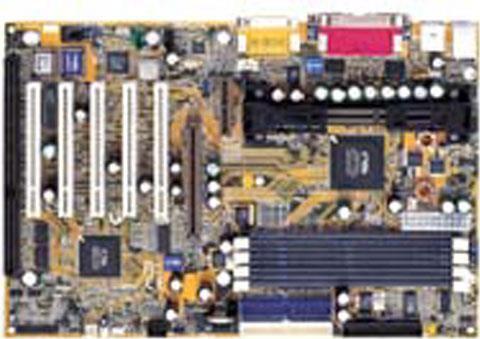

GA-6VX-4X

EspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Slot 1 for Intel® Pentium® II / III and Celeron™ Processors
    2. Clock multiplier 3.0~9.5 for future Processors
    3. 66/100/112*/124*/133/142*/152* MHz System Bus
    4. AUTO Detect CPU Voltage
  • Chipset
    1. VIA Apollo Pro Family AGPset
    2. Aureal AU8810 PCI Sound chip (optional)
  • Memoria
    1. 8MB to 1.5GB DRAM size
    2. 4 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • Puertos de Expansión
    1. 1 x AMR (Audio Modem Riser) Slot
    2. 1 x AGP Slot Supports 2X / 4X mode
    3. 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    4. 1 x ISA Slot
  • Controlador de E/S
    1. 2 x Ultra DMA33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB prots by cable (optional accessary)
    6. IrDA TX / RX Header ready
  • Monitorización H/W
    1. Auto speed down and Alarm when CPU overheat or Fan failure (OS independent & Driverless)
    2. 3 Fan Power & Speed Detection Connectors
    3. System Health status detect & report by BIOS
    4. H/W detect +5V, +12V, CPU Voltage & CMOS battery Status
  • BIOS
    1. Inlcudes DualBIOS™ technology ; 2Mbit Flash RAM
    2. AMI BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Diseño
    1. ATX , 4 layer PCB (30.5*20.3 cm)
  • Controlador
    1. VIA Ultra DMA 33/66 Bus Master IDE Driver
    2. VIA AGP GART VxD & Power Management Controller Driver
    3. VIA Patch 95 Driver
    4. VIA Windows R 98 IRQ Routing Driver
    5. Aureal PCI Sound Driver (optional)
  • Otras Características
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN Header (WOL) ; Includes Wake-On-Ring (WOR)
    3. Supports Internal / External modem wake on
    4. 3 Fan Power & Speed Detection Connectors
    5. Poly fuse for keyboard, USB, VGA & Game overcurrent protection
  • Energía
    1. ATX Power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95 / 98 Shut down & Switch
    4. Suspend / Wake-on by ACPI & APM device
    5. AC Recovery ON/OFF control ; 3 Level ACPI LED Support
    6. Stop CPU Fan during entering suspend mode
  • Procesador
    1. Slot 1 for Intel® Pentium® II / III and Celeron™ Processors
    2. Clock multiplier 3.0~9.5 for future Processors
    3. 66/100/112*/124*/133/142*/152* MHz System Bus
    4. AUTO Detect CPU Voltage
  • Chipset
    1. VIA Apollo Pro Family AGPset
    2. Aureal AU8810 PCI Sound chip (optional)
  • Memoria
    1. 8MB to 1.5GB DRAM size
    2. 4 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • Puertos de Expansión
    1. 1 x AMR (Audio Modem Riser) Slot
    2. 1 x AGP Slot Supports 2X / 4X mode
    3. 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    4. 1 x ISA Slot
  • Controlador de E/S
    1. 2 x Ultra DMA33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB prots by cable (optional accessary)
    6. IrDA TX / RX Header ready
  • Monitorización H/W
    1. Auto speed down and Alarm when CPU overheat or Fan failure (OS independent & Driverless)
    2. 3 Fan Power & Speed Detection Connectors
    3. System Health status detect & report by BIOS
    4. H/W detect +5V, +12V, CPU Voltage & CMOS battery Status
  • BIOS
    1. Inlcudes DualBIOS™ technology ; 2Mbit Flash RAM
    2. AMI BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Diseño
    1. ATX , 4 layer PCB (30.5*20.3 cm)
  • Controlador
    1. VIA Ultra DMA 33/66 Bus Master IDE Driver
    2. VIA AGP GART VxD & Power Management Controller Driver
    3. VIA Patch 95 Driver
    4. VIA Windows R 98 IRQ Routing Driver
    5. Aureal PCI Sound Driver (optional)
  • Otras Características
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN Header (WOL) ; Includes Wake-On-Ring (WOR)
    3. Supports Internal / External modem wake on
    4. 3 Fan Power & Speed Detection Connectors
    5. Poly fuse for keyboard, USB, VGA & Game overcurrent protection
  • Energía
    1. ATX Power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95 / 98 Shut down & Switch
    4. Suspend / Wake-on by ACPI & APM device
    5. AC Recovery ON/OFF control ; 3 Level ACPI LED Support
    6. Stop CPU Fan during entering suspend mode

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
