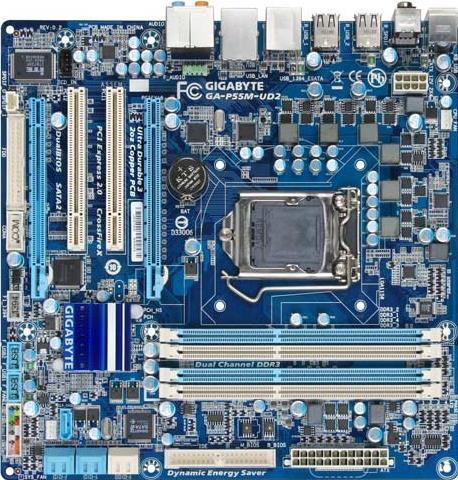

GA-P55M-UD2 (Rev. 1.1)

Rev. 1.1Rev. 1.0
Intel® P55 Chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosAprender másWhere to Buy

Especificación

  • Procesador
    1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor /Intel® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
    2. L3 cache varies with CPU
  • Chipset
    1. Intel® P55 Express Chipset
  • Memoria
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR3 2200/1600/1333/1066/800 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Go to GIGABYTE's website for the latest memory support list.)
  • Audio
    1. Realtek ALC888B codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • LAN
    1. 1 x RTL8111D chip (10/100/1000 Mbit)
  • Puertos de Expansión
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 2 x PCI slots
  • Tecnología Multi-Gráficos
    1. Support for ATI CrossFireX™ technology
  • Interfaz de Almacenamiento
  • Intel® P55 Express Chipset:
    1. 5 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4) supporting up to 5 SATA 3Gb/s devices
    2. 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device
    3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
    GIGABYTE SATA2 chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2. 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
    3. Support for SATA RAID 0, RAID 1, and JBOD
    iTE IT8720 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
    1. Integrated in the Chipset
    2. Up to 14 USB 2.0/1.1 ports (10 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • IEEE 1394
    1. T.I. TSB43AB23 chip
    2. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 7 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 1 x system fan header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x CD In connector
    11. 1 x S/PDIF In header
    12. 1 x S/PDIF Out header
    13. 2 x USB 2.0/1.1 headers
    14. 1 x IEEE 1394a header
    15. 1 x serial port header
    16. 1 x clearing CMOS jumper
  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard or PS/2 mouse port
    2. 1 x coaxial S/PDIF Out connector
    3. 1 x optical S/PDIF Out connector
    4. 10 x USB 2.0/1.1 ports
    5. 1 x eSATA 3Gb/s port
    6. 1 x IEEE 1394a port
    7. 1 x RJ-45 port
    8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
  • Controlador de E/S
    1. iTE IT8720 chip
  • Monitorización H/W
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
  • BIOS
    1. 2 x 16 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Características Únicas
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
    8. Support for Dynamic Energy Saver™ 2
    9. Support for Smart 6™
    10. Support for Q-Share
  • Software Incluido
    1. Norton Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Microsoft® Windows 7/Vista/XP
  • Diseño
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor /Intel® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
      2. L3 cache varies with CPU
    • Chipset
      1. Intel® P55 Express Chipset
    • Memoria
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
      2. Dual channel memory architecture
      3. Support for DDR3 2200/1600/1333/1066/800 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Go to GIGABYTE's website for the latest memory support list.)
    • Audio
      1. Realtek ALC888B codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF In/Out
      5. Support for CD In
    • LAN
      1. 1 x RTL8111D chip (10/100/1000 Mbit)
    • Puertos de Expansión
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      3. 2 x PCI slots
    • Tecnología Multi-Gráficos
      1. Support for ATI CrossFireX™ technology
    • Interfaz de Almacenamiento
    • Intel® P55 Express Chipset:
      1. 5 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4) supporting up to 5 SATA 3Gb/s devices
      2. 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device
      3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
      GIGABYTE SATA2 chip:
      1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
      2. 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
      3. Support for SATA RAID 0, RAID 1, and JBOD
      iTE IT8720 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
      1. Integrated in the Chipset
      2. Up to 14 USB 2.0/1.1 ports (10 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    • IEEE 1394
      1. T.I. TSB43AB23 chip
      2. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
    • Conectores Internos de E/S
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 7 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 1 x system fan header
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x CD In connector
      11. 1 x S/PDIF In header
      12. 1 x S/PDIF Out header
      13. 2 x USB 2.0/1.1 headers
      14. 1 x IEEE 1394a header
      15. 1 x serial port header
      16. 1 x clearing CMOS jumper
    • Conectores del Panel Trasero
      1. 1 x PS/2 keyboard or PS/2 mouse port
      2. 1 x coaxial S/PDIF Out connector
      3. 1 x optical S/PDIF Out connector
      4. 10 x USB 2.0/1.1 ports
      5. 1 x eSATA 3Gb/s port
      6. 1 x IEEE 1394a port
      7. 1 x RJ-45 port
      8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
    • Controlador de E/S
      1. iTE IT8720 chip
    • Monitorización H/W
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
    • BIOS
      1. 2 x 16 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Características Únicas
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune
      8. Support for Dynamic Energy Saver™ 2
      9. Support for Smart 6™
      10. Support for Q-Share
    • Software Incluido
      1. Norton Internet Security (OEM version)
    • Sistema Operativo
      1. Support for Microsoft® Windows 7/Vista/XP
    • Diseño
      1. Micro ATX Form Factor; 24.4cm x 24.4cm
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
