W793-ZU0-LA71

To be released

GPU Workstation - AMD EPYC™ 9005/9004 - UP 4 x PCIe Gen5 GPUs DLC
AIVisual ComputingHPCAI TrainingAI Inference
  • CPU+GPU closed-loop liquid cooling solution with leak detection
  • Supports up to 4 x liquid-cooled AMD Radeon™ AI PRO R9700 GPUs
  • Single AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 12 x DIMMs
  • 2 x 10Gb/s LAN ports via Intel® X550-AT2
  • 4 x 2.5" Gen5 NVMe hot-swap bays
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 3 x FHHL PCIe Gen5 x16 slots for NICs
  • 2+1 2400W liquid-cooled 80 PLUS Titanium redundant power supplies
AMD EPYC
Save
This model has been saved to favorite!
View Saved List
 Quote

New AMD EPYC™ Family of Processors
 Same Great SP5 Platform

The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.
Content Image

5th Generation AMD EPYC™ Processors for SP5 Socket

3nm
architecture
Increased transistor density alongside a reduction in power consumption
Up to 192
CPU cores
Dedicated “Zen 5” & “Zen 5c” cores increase compute density
Up to 512MB
L3 cache
An L3 cache increase helps to reduce latency in data-intensive operations
12
channels
Memory capacity up to 9TB in a 2 DIMM per channel configuration
Up to 160
PCIe lanes
Dual socket configuration adds a significant amount of I/O connectivity
CXL 2.0
support
Disaggregated compute architecture possible via Compute Express Link
• AMD EPYC™ 9005 Series processors require OEM enablement and a BIOS update from your server or motherboard manufacturer if used with a motherboard designed for the SP5 socketed AMD EPYC™ 9004 Series processors. Contact your system manufacturer prior to purchase to determine compatibility.
• CXL Type 1&2 devices and PCIe link encryption support dependent upon ecosystem readiness; type 2 PoC only.
• CXL peripheral support varies by product. Please refer to the QVL list for validated configurations.

Select GIGABYTE for the AMD EPYC™ 9005 Platform

Feature Icon

High Performance

Servers and motherboards by GIGABYTE are tested to ensure peak performance for demanding workloads while supporting the latest GPU and CXL technology.
Feature Icon

Compute Density

With 192 CPU cores per socket, GIGABYTE's 4-node servers support up to 1,536 CPU cores, allowing a far greater number of concurrent tasks to be done.
Feature Icon

Fast & Stable Connectivity

Keeping pace with the challenges for next gen technology, well designed GIGABYTE boards provide users the signal integrity for fast PCIe 5.0 speeds.
Feature Icon

Collaboration

AMD and GIGABYTE have maintained a healthy relationship that values shared knowledge and open communication in order to launch products in tandem.
Feature Icon

Optimal Price

Our broad portfolio of products tailored to applications allow customers to only select server features they require while doing so at a lower TCO.
Content Image

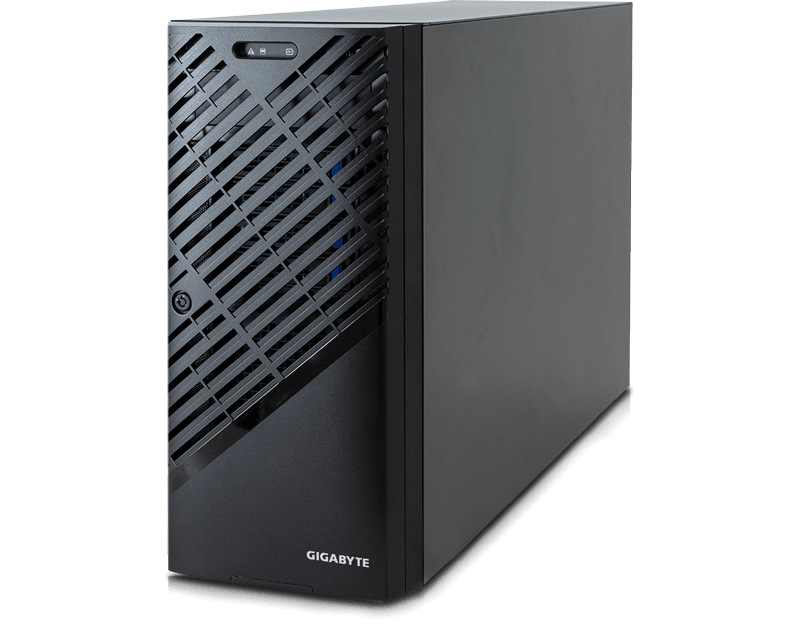

All-New Workstation Design

Guarding Your Professional Work Needs
  • Smooth edge design bold diagonal grid
  • Radiating a dominant yet stable style
  • Achieving a balance of functionality and aesthetics
  • Large perforations enhance heat dissipation
  • Iron meshes reinforcement prevents foreign objects
  • Lock holes ensure information security

W793-ZU0-LA71 Block Diagram

W793-ZU0-LA71 Product Overview

High Performance

Supports Multiple Multi-slot Accelerators

GIGABYTE Workstations have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for 3D rendering, deep learning and high-performance computing. The design enables content creators, data scientists, researchers, and engineers to tackle challenges that were once impossible.
Content Image
Content Image

Hardware Security

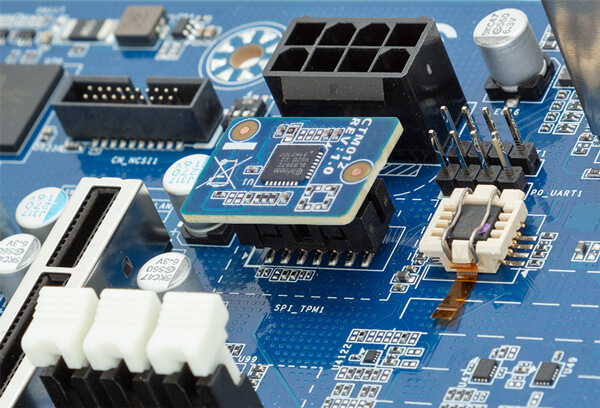

Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.
Content Image

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

  • Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
  • Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
  • Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.
Content Image

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI: A command-line interface for monitoring and managing remotely.
  • GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

Specifikace

Dimensions (WxHxD, mm)
Pedestal
218 x 449 x 780
Motherboard
MZU3-MG0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

[DLC] Single processor, cTDP up to 400W
- At 30°C ambient, cTDP up to 500W
Socket
1 x LGA 6096
Socket SP5
Chipset
System on Chip
Memory
12 x DIMM slots
Support DDR5 RDIMM
12-Channel memory per processor

AMD EPYC™ 9005:
Up to 6400 MT/s

AMD EPYC™ 9004:
Up to 4800 MT/s
LAN
Front (I/O board - CFPX142):
2 x 10Gb/s LAN (1 x Intel® X550-AT2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x Mini-DP
Audio
N/A
Storage
Front hot-swap:
4 x 2.5" Gen5 NVMe
RAID
N/A
Peripheral Drives
N/A
PCIe Expansion Slots
PCIe Cable x 7:
- [DLC] 4 x FHFL x16 (Gen5 x16), for GPUs
- 3 x FHHL x16 (Gen5 x16), for NICs

[Note] The system is only validated with a uniform GPU model.
Front I/O
I/O board - CFPX142:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
N/A
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
Power Supply[#1]
2+1 2400W 80 PLUS Titanium redundant power supplies
System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
System Fans
N/A

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.
