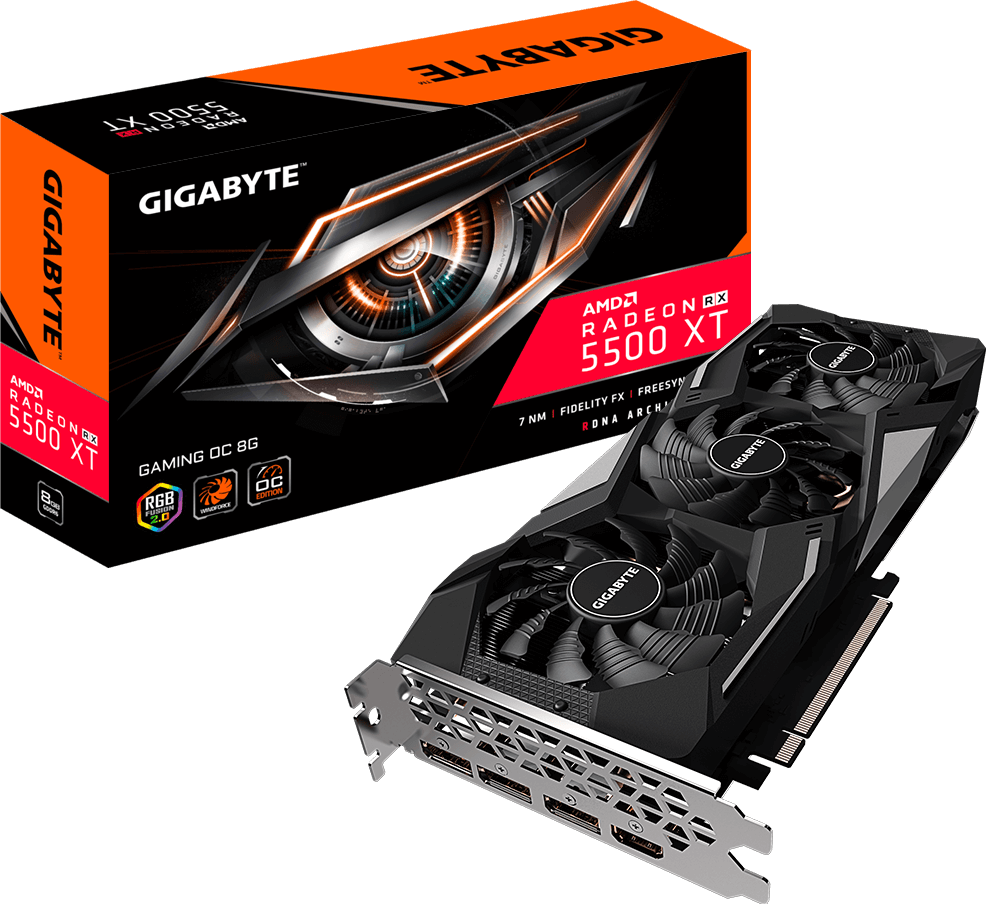

Radeon™ RX 5500 XT GAMING OC 8G
GV-R55XTGAMING OC-8GD
Especificación
- Graphics Processing
- Radeon™ RX 5500 XT
- Core Clock
- Boost Clock* : up to 1845 MHz
Game Clock* : up to 1737 MHz (Reference card: 1717 MHz)
- Stream Processors
- 1408
- Process Technology
- 7 nm
- Memory Clock
- 14000 MHz
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Bus
- 128 bit
- Memory Bandwidth (GB/sec)
- 224 GB/s
- Card Bus
- PCI-E 4.0
- Digital max resolution
- 7680x4320
- Multi-view
- 4
- Card size
- L=281 W=115 H=40 mm
- PCB Form
- ATX
- DirectX
- 12
- OpenGL
- 4.6
- Recommended PSU
- 450W
- Power Connectors
- 8 Pin*1
- Output
- DisplayPort 1.4 *3
HDMI 2.0b *1
- Accessories
- Quick Guide
- Note
- * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
- Graphics Processing
- Radeon™ RX 5500 XT
- Core Clock
- Boost Clock* : up to 1845 MHz
Game Clock* : up to 1737 MHz (Reference card: 1717 MHz)
- Stream Processors
- 1408
- Process Technology
- 7 nm
- Memory Clock
- 14000 MHz
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Bus
- 128 bit
- Memory Bandwidth (GB/sec)
- 224 GB/s
- Card Bus
- PCI-E 4.0
- Digital max resolution
- 7680x4320
- Multi-view
- 4
- Card size
- L=281 W=115 H=40 mm
- PCB Form
- ATX
- DirectX
- 12
- OpenGL
- 4.6
- Recommended PSU
- 450W
- Power Connectors
- 8 Pin*1
- Output
- DisplayPort 1.4 *3
HDMI 2.0b *1
- Accessories
- Quick Guide
- Note
- * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
