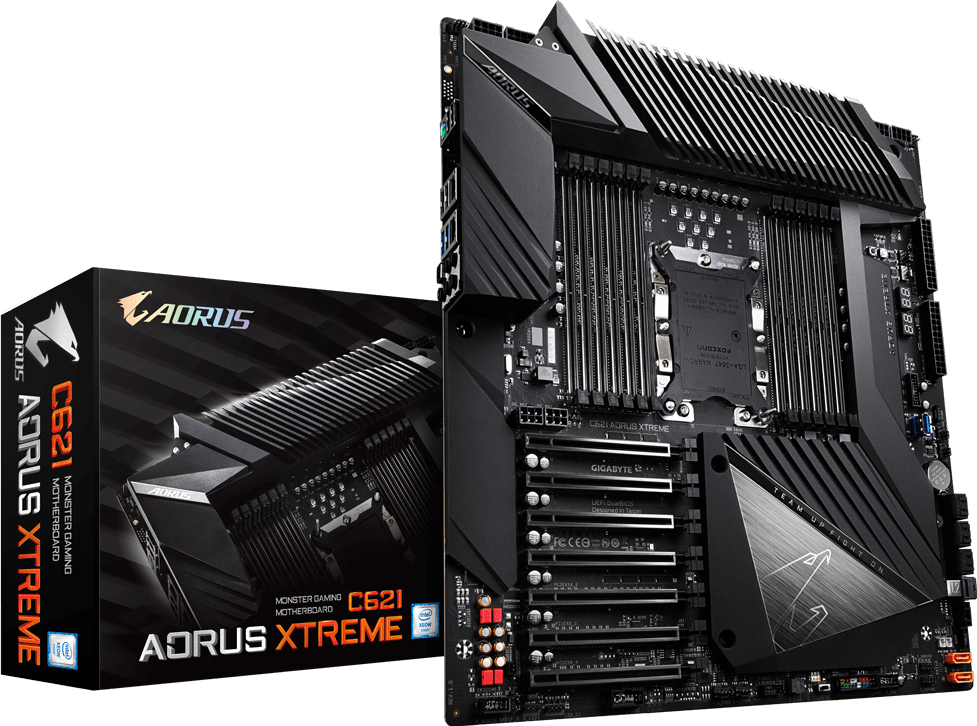

C621 AORUS XTREME (Rev. 1.0)

Intel® C621 Chipset
Características principalesEspecificaciónSoporte y DescargasAprender másWhere to Buy

Especificación

  • Procesador
    1. Support for Intel® Xeon® W-3175X Scalable processor in the LGA3647 Socket P (Narrow)
    2. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® C621 Chipset
  • Memoria
    1. 12 x DDR4 DIMM sockets supporting up to 192 GB of system memory
    2. 6 channel memory architecture
    3. Support for DDR4 4200(O.C.) / 4000(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz
    4. Support for ECC Registered DIMM memory modules
    5. Support for ECC Un-buffered DIMM memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Audio
    1. Realtek® ALC1220-VB codec
      * The back panel line out jack supports DSD audio.
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
  • Puertos de Expansión
    1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/2)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.
    2. 4 x PCI Express x16 slots, running at x8 (PCIEX8_1/2/3/4)
      * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_3 with PCIEX16_2. When PCIEX8_1/PCIEX8_3 is populated, PCIEX16_1/PCIEX16_2 operates at up to x8 mode.
    3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  • Tecnología Multi-Gráficos
    1. Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
    2. Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
  • Interfaz de Almacenamiento
  • Chipset:
    1. 8 x SATA 6Gb/s connectors
    2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    3. 1 x U.2 connector
  • USB
  • Chipset:
    1. 5 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header, 1 onboard)
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Conectores Internos de E/S
    1. 2 x 24-pin ATX main power connectors
    2. 4 x 8-pin ATX 12V power connectors
    3. 2 x OC_PEG power connectors
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 4 x system fan headers
    7. 2 x system fan/water cooling pump headers
    8. 2 x addressable LED strip headers
    9. 2 x addressable LED strip power select jumpers
    10. 2 x RGB LED strip headers
    11. 8 x SATA 6Gb/s connectors
    12. 1 x U.2 connector
    13. 2 x SATA power headers
    14. 2 x SATA detection headers
    15. 1 x power information detection header
    16. 1 x front panel header
    17. 1 x front panel audio header
    18. 1 x S/PDIF Out header
    19. 1 x USB 3.1 Gen 1 header
    20. 1 x USB 3.1 Gen 1 port
    21. 1 x USB 2.0/1.1 header
    22. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    23. 1 x Intel® VROC Upgrade Key header
    24. 1 x serial port header
    25. 1 x Clear CMOS jumper
    26. 1 x reset button
    27. 1 x power button
    28. 2 x temperature sensor headers
    29. 1 x BIOS switch
    30. 1 x buzzer
  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard/mouse port
    2. 4 x USB 2.0/1.1 ports
    3. 2 x USB 3.1 Gen 1 ports
    4. 2 x RJ-45 ports
    5. 1 x optical S/PDIF Out connector
    6. 5 x audio jacks
  • Controlador de E/S
    1. iTE® I/O Controller Chip
  • Monitorización H/W
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 2 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Características Únicas
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for RGB Fusion
    4. Support for System Information Viewer
  • Software Incluido
    1. Norton® Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Windows 10 64-bit
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Support for Intel® Xeon® W-3175X Scalable processor in the LGA3647 Socket P (Narrow)
      2. L3 cache varies with CPU
      (Please refer to "CPU Support List" for more information.)
    • Chipset
      1. Intel® C621 Chipset
    • Memoria
      1. 12 x DDR4 DIMM sockets supporting up to 192 GB of system memory
      2. 6 channel memory architecture
      3. Support for DDR4 4200(O.C.) / 4000(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz
      4. Support for ECC Registered DIMM memory modules
      5. Support for ECC Un-buffered DIMM memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Audio
      1. Realtek® ALC1220-VB codec
        * The back panel line out jack supports DSD audio.
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • LAN
      1. 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
    • Puertos de Expansión
      1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/2)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.
      2. 4 x PCI Express x16 slots, running at x8 (PCIEX8_1/2/3/4)
        * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_3 with PCIEX16_2. When PCIEX8_1/PCIEX8_3 is populated, PCIEX16_1/PCIEX16_2 operates at up to x8 mode.
      3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    • Tecnología Multi-Gráficos
      1. Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
      2. Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
    • Interfaz de Almacenamiento
    • Chipset:
      1. 8 x SATA 6Gb/s connectors
      2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      3. 1 x U.2 connector
    • USB
    • Chipset:
      1. 5 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header, 1 onboard)
      2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • Conectores Internos de E/S
      1. 2 x 24-pin ATX main power connectors
      2. 4 x 8-pin ATX 12V power connectors
      3. 2 x OC_PEG power connectors
      4. 1 x CPU fan header
      5. 1 x water cooling CPU fan header
      6. 4 x system fan headers
      7. 2 x system fan/water cooling pump headers
      8. 2 x addressable LED strip headers
      9. 2 x addressable LED strip power select jumpers
      10. 2 x RGB LED strip headers
      11. 8 x SATA 6Gb/s connectors
      12. 1 x U.2 connector
      13. 2 x SATA power headers
      14. 2 x SATA detection headers
      15. 1 x power information detection header
      16. 1 x front panel header
      17. 1 x front panel audio header
      18. 1 x S/PDIF Out header
      19. 1 x USB 3.1 Gen 1 header
      20. 1 x USB 3.1 Gen 1 port
      21. 1 x USB 2.0/1.1 header
      22. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      23. 1 x Intel® VROC Upgrade Key header
      24. 1 x serial port header
      25. 1 x Clear CMOS jumper
      26. 1 x reset button
      27. 1 x power button
      28. 2 x temperature sensor headers
      29. 1 x BIOS switch
      30. 1 x buzzer
    • Conectores del Panel Trasero
      1. 1 x PS/2 keyboard/mouse port
      2. 4 x USB 2.0/1.1 ports
      3. 2 x USB 3.1 Gen 1 ports
      4. 2 x RJ-45 ports
      5. 1 x optical S/PDIF Out connector
      6. 5 x audio jacks
    • Controlador de E/S
      1. iTE® I/O Controller Chip
    • Monitorización H/W
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Water cooling flow rate detection
      5. Overheating warning
      6. Fan fail warning
      7. Fan speed control
        * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    • BIOS
      1. 2 x 256 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Características Únicas
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for RGB Fusion
      4. Support for System Information Viewer
    • Software Incluido
      1. Norton® Internet Security (OEM version)
    • Sistema Operativo
      1. Support for Windows 10 64-bit
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
