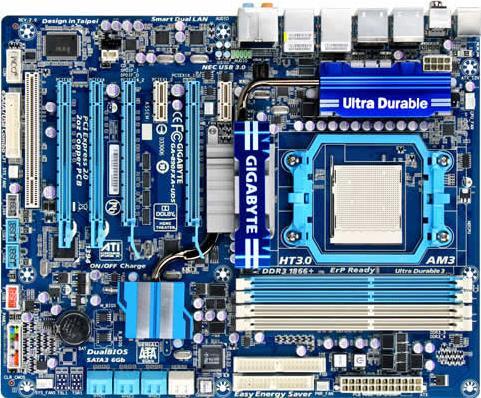

GA-890FXA-UD5 (Rev. 2.0)

Rev. 2.0Rev. 2.1Rev. 3.0Rev. 3.1

AMD 890FX + SB850 Chipset

Compare

Especificación

Procesador
1. Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor

Bus Hyper Transport
1. 5200 MT/s

Chipset
1. North Bridge: AMD 890FX
2. South Bridge: AMD SB850

Memoria
1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 1866(OC)(Note 2)/1333/1066 MHz memory modules (Note 2)

Audio
1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN
1. 2 x Realtek 8111D chip (10/100/1000 Mbit)
2. Support for Teaming
3. Support for Smart Dual LAN

Puertos de Expansión
1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) (Note 3)
2. 1 x PCI Express x16 slots, running at x8 (PCIEX8) (Note 4)
3. 1 x PCI Express x16 slots, running at x4 (PCIEX4)
4. 2 x PCI Express x1 slot (All PCI Express slots conform to PCI Express 2.0 Standard.)
5. 1 x PCI slot

Tecnología Multi-Gráficos
1. Support for 2-way/ 3-way ATI CrossFireX™ technology

Interfaz de Almacenamiento
South Bridge:
1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
2. Support for SATA RAID 0, RAID 1, RAID5, RAID 10 and JBOD
* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

GIGABYTE SATA2 Chip:
1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, and JBOD
JMicron JMB362 chip:
1. 2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel supporting up to 2 SATA 3Gb/s devices
2. Support for SATA RAID 0, RAID 1 and JBOD
ITE 8720 chip:
1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB
South Bridge:
1. Up to 14 USB 2.0/1.1 ports (8 on the back panel, including 2 eSATA/USB Combo, 6 via the USB brackets connected to the internal USB headers)
NEC D720200F1 Chip:
1. Up to 2 USB 3.0/2.0 ports on the back panel
* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.

IEEE 1394
T.I. TSB43AB23 chip
1. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Conectores Internos de E/S
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 2 x SATA 3Gb/s connectors
6. 6 x SATA 6Gb/s connectors
7. 1 x CPU fan header
8. 2 x system fan header
9. 1 x North Bridge fan header
10. 1 x power fan header
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x CD In connector
14. 1 x S/PDIF In header
15. 1 x S/PDIF Out header
16. 1 x IEEE 1394a header
17. 3 x USB 2.0/1.1 headers
18. 1 x serial port header
19. 1 x parallel port header
20. 1 x clearing CMOS jumper
21. 1 x clearing CMOS button
22. 1 x power button
23. 1 x reset button

Conectores del Panel Trasero
1. 1 x PS/2 keyboard/ mouse port
2. 1 x optical S/PDIF Out connector
3. 1 x coaxial S/PDIF out connector
4. 2 x IEEE 1394a port
5. 6 x USB 2.0/1.1 ports
6. 2 x USB 3.0/2.0 ports
7. 2 x eSATA/USB Combo connectors
8. 2 x RJ-45 port
9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

Controlador de E/S
1. ITE IT8720 chip

Monitorización H/W
System voltage detection
1. CPU/System temperature detection
2. CPU/System fan speed detection
3. CPU overheating warning
4. CPU/System fan fail warning
5. CPU/System fan speed control (Note 5)

BIOS
1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Características Únicas
1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 6)
8. Support for Easy Energy Saver
9. Support for Smart Recovery
10. Support for Auto Green
11. Support for ON/OFF Charge
12. Support for Q-Share

Software Incluido
1. Norton Internet Security (OEM version)

Sistema Operativo
1. Support for Microsoft Windows 7/ Vista/ XP

Diseño
1. ATX Form Factor; 30.5cm x 24.4cm

Nota
(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To reach DDR3 1866MHz or above, you must install two memory modules and install them in the DDR3_3 and DDR3_4 memory sockets.
(Note 3) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
(Note 4) The PCIEX8 slot shares bandwidth with the PCIEX16_1 slot. When PCIEX8 is populated with a PCI Express graphics card, the PCIEX16_1 slot will operate at up to x8 mode.
(Note 5) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.
(Note 6) Available functions in EasyTune may differ by motherboard model.

Otras Descripciones
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Procesador
1. Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor

Bus Hyper Transport
1. 5200 MT/s

Chipset
1. North Bridge: AMD 890FX
2. South Bridge: AMD SB850

Memoria
1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 1866(OC)(Note 2)/1333/1066 MHz memory modules (Note 2)

Audio
1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN
1. 2 x Realtek 8111D chip (10/100/1000 Mbit)
2. Support for Teaming
3. Support for Smart Dual LAN

Puertos de Expansión
1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) (Note 3)
2. 1 x PCI Express x16 slots, running at x8 (PCIEX8) (Note 4)
3. 1 x PCI Express x16 slots, running at x4 (PCIEX4)
4. 2 x PCI Express x1 slot (All PCI Express slots conform to PCI Express 2.0 Standard.)
5. 1 x PCI slot

Tecnología Multi-Gráficos
1. Support for 2-way/ 3-way ATI CrossFireX™ technology

Interfaz de Almacenamiento
South Bridge:
1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
2. Support for SATA RAID 0, RAID 1, RAID5, RAID 10 and JBOD
* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

GIGABYTE SATA2 Chip:
1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, and JBOD
JMicron JMB362 chip:
1. 2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel supporting up to 2 SATA 3Gb/s devices
2. Support for SATA RAID 0, RAID 1 and JBOD
ITE 8720 chip:
1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB
South Bridge:
1. Up to 14 USB 2.0/1.1 ports (8 on the back panel, including 2 eSATA/USB Combo, 6 via the USB brackets connected to the internal USB headers)
NEC D720200F1 Chip:
1. Up to 2 USB 3.0/2.0 ports on the back panel
* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.

IEEE 1394
T.I. TSB43AB23 chip
1. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Conectores Internos de E/S
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 2 x SATA 3Gb/s connectors
6. 6 x SATA 6Gb/s connectors
7. 1 x CPU fan header
8. 2 x system fan header
9. 1 x North Bridge fan header
10. 1 x power fan header
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x CD In connector
14. 1 x S/PDIF In header
15. 1 x S/PDIF Out header
16. 1 x IEEE 1394a header
17. 3 x USB 2.0/1.1 headers
18. 1 x serial port header
19. 1 x parallel port header
20. 1 x clearing CMOS jumper
21. 1 x clearing CMOS button
22. 1 x power button
23. 1 x reset button

Conectores del Panel Trasero
1. 1 x PS/2 keyboard/ mouse port
2. 1 x optical S/PDIF Out connector
3. 1 x coaxial S/PDIF out connector
4. 2 x IEEE 1394a port
5. 6 x USB 2.0/1.1 ports
6. 2 x USB 3.0/2.0 ports
7. 2 x eSATA/USB Combo connectors
8. 2 x RJ-45 port
9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

Controlador de E/S
1. ITE IT8720 chip

Monitorización H/W
System voltage detection
1. CPU/System temperature detection
2. CPU/System fan speed detection
3. CPU overheating warning
4. CPU/System fan fail warning
5. CPU/System fan speed control (Note 5)

BIOS
1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Características Únicas
1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 6)
8. Support for Easy Energy Saver
9. Support for Smart Recovery
10. Support for Auto Green
11. Support for ON/OFF Charge
12. Support for Q-Share

Software Incluido
1. Norton Internet Security (OEM version)

Sistema Operativo
1. Support for Microsoft Windows 7/ Vista/ XP

Diseño
1. ATX Form Factor; 30.5cm x 24.4cm

Nota
(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To reach DDR3 1866MHz or above, you must install two memory modules and install them in the DDR3_3 and DDR3_4 memory sockets.
(Note 3) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
(Note 4) The PCIEX8 slot shares bandwidth with the PCIEX16_1 slot. When PCIEX8 is populated with a PCI Express graphics card, the PCIEX16_1 slot will operate at up to x8 mode.
(Note 5) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.
(Note 6) Available functions in EasyTune may differ by motherboard model.

Otras Descripciones
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.

* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
