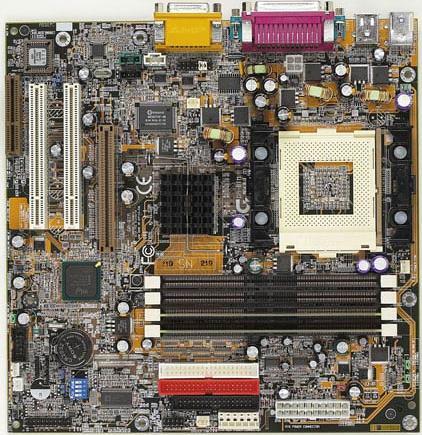

GA-8TM (Rev. 1.x)

EspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. PGA 423-pin socket for Intel® Pentium ® 4 processor
    2. Supports 100/105*/110*/133* MHz system bus (400MHz data bus, 200MHz address bus frequency)
    3. AUTO detect CPU voltage
  • Chipset
    1. Intel ® 850 AGPset + ICH2
    2. Sigmatel STAC9700T AC97 codec
    3. Winbond W83627HF LPCIO + health monitoring
  • Memoria
    1. 64MB to 2GB memory size
    2. 4 x RIMM sockets; Dual RAMBUS channel support
    3. Supports 64/128/256/512 MB RAMBUS RIMM module
    4. Supports ECC type RIMM module
  • Puertos de Expansión
    1. 1 x AGP 4X slot, 1 x CNR (Communication Networking Riser)
    2. 2 x PCI slots support 33MHz & PCI 2.2 compliant
  • Controlador de E/S
    1. 2 x UDMA ATA 100/66/33 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 4 x USB ports (2 on board and another 2 by optional cable)
    5. IrDA header ready
  • Monitorización H/W
    1. Auto speed down and alarm when CPU overheat or fan failure
    2. 3 fan power & speed detection connectors
    3. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. FWH(Firm Ware Hub) ROM BIOS with enhanced ACPI feature for PC99/Win98/WinME/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. Auto-detect & report system health status
    4. Supports @BIOS ™ Live Update
  • Diseño
    1. Micro ATX, 6 layer PCB (24.4*24.4 cm)
  • Controlador
    1. Gigabyte Windows Utility Manager
    2. Sigmatel AC97 sound drivers
  • Otras Características
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN header (WOL); Includes Wake-On-Ring (WOR)
    3. Poly fuse for keyboard, USB & game overcurrent protection
  • Energía
    1. ATX power connector, ATX 12V connector, 3.3V AUX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & switch
    3. Power-off by Windows 98/ME/2000 shut down & switch
    4. Supports USB device wake-up
    5. Suspend / Wake-on by ACPI & APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support
  • Procesador
    1. PGA 423-pin socket for Intel® Pentium ® 4 processor
    2. Supports 100/105*/110*/133* MHz system bus (400MHz data bus, 200MHz address bus frequency)
    3. AUTO detect CPU voltage
  • Chipset
    1. Intel ® 850 AGPset + ICH2
    2. Sigmatel STAC9700T AC97 codec
    3. Winbond W83627HF LPCIO + health monitoring
  • Memoria
    1. 64MB to 2GB memory size
    2. 4 x RIMM sockets; Dual RAMBUS channel support
    3. Supports 64/128/256/512 MB RAMBUS RIMM module
    4. Supports ECC type RIMM module
  • Puertos de Expansión
    1. 1 x AGP 4X slot, 1 x CNR (Communication Networking Riser)
    2. 2 x PCI slots support 33MHz & PCI 2.2 compliant
  • Controlador de E/S
    1. 2 x UDMA ATA 100/66/33 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 4 x USB ports (2 on board and another 2 by optional cable)
    5. IrDA header ready
  • Monitorización H/W
    1. Auto speed down and alarm when CPU overheat or fan failure
    2. 3 fan power & speed detection connectors
    3. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. FWH(Firm Ware Hub) ROM BIOS with enhanced ACPI feature for PC99/Win98/WinME/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. Auto-detect & report system health status
    4. Supports @BIOS ™ Live Update
  • Diseño
    1. Micro ATX, 6 layer PCB (24.4*24.4 cm)
  • Controlador
    1. Gigabyte Windows Utility Manager
    2. Sigmatel AC97 sound drivers
  • Otras Características
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN header (WOL); Includes Wake-On-Ring (WOR)
    3. Poly fuse for keyboard, USB & game overcurrent protection
  • Energía
    1. ATX power connector, ATX 12V connector, 3.3V AUX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & switch
    3. Power-off by Windows 98/ME/2000 shut down & switch
    4. Supports USB device wake-up
    5. Suspend / Wake-on by ACPI & APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
