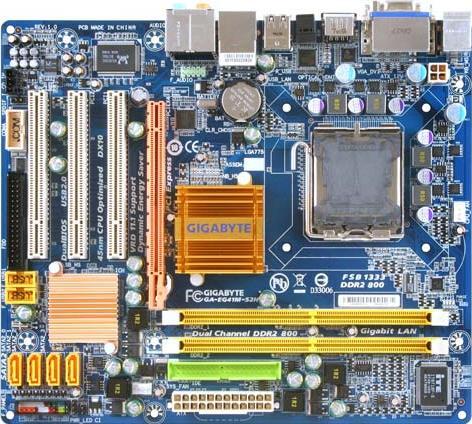

GA-EG41M-S2H (Rev. 1.0)

Intel®G41 + ICH7 Chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® Dual-Core processo/Intel® Celeron® processor in the LGA 775 package
    2. L2 cache varies with CPU
  • Front Side Bus
    1. 1333/1066/800 MHz FSB
  • Chipset
    1. North Bridge: Intel® G41 Chipset
    2. South Bridge: Intel® ICH7
  • Memoria
    1. 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR2 1066(OC)/800/667 MHz memory modules
  • Gráficos Integrados
  • North Bridge:
    1. 1 x D-Sub port
    2. 1 x DVI-D port (Note 2)
    SiI1392 chip*:
    1. 1 x HDMI port*
  • Audio
    1. Realtek ALC888 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • LAN
    1. Realtek 8110SC chip (10/100/1000 Mbit)
  • Puertos de Expansión
    1. 1 x PCI Express x16 slot, running at x4 (Refer to the graphics cards support list.)
    2. 3 x PCI slots
  • Interfaz de Almacenamiento
  • South Bridge:
    1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
    2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
    1. Integrated in the South Bridge
    2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 4 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 1 x system fan header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x CD In connector
    11. 1 x S/PDIF In header
    12. 1 x S/PDIF Out header
    13. 2 x USB 2.0/1.1 headers
    14. 1 x serial port header
    15. 1 x power LED header
    16. 1 x chassis intrusion header
  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x DVI-D port
    5. 1 x HDMI port
    6. 1 x optical S/PDIF Out connector
    7. 4 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line out/Microphone)
  • Controlador de E/S
    1. iTE IT8718 chip
  • Monitorización H/W
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control (Note 3)
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Características Únicas
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Virtual Dual BIOS
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 4)
    8. Support for Dynamic Energy Saver Advanced
    9. Support for Time Repair
    10. Support for Q-Share
  • Software Incluido
    1. Norton Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Microsoft® Windows Vista/XP
  • Diseño
    1. Micro ATX Form Factor; 24.4cm x 20.7cm
  • Nota
  • (Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) The DVI-D port does not support D-Sub connection by adapter.
    (Note 3) Whether the CPU/System fan speed control function is supported will depend on the CPU/ System cooler you install.
    (Note 4) Available functions in EasyTune may differ by motherboard model.
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® Dual-Core processo/Intel® Celeron® processor in the LGA 775 package
      2. L2 cache varies with CPU
    • Front Side Bus
      1. 1333/1066/800 MHz FSB
    • Chipset
      1. North Bridge: Intel® G41 Chipset
      2. South Bridge: Intel® ICH7
    • Memoria
      1. 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
      2. Dual channel memory architecture
      3. Support for DDR2 1066(OC)/800/667 MHz memory modules
    • Gráficos Integrados
    • North Bridge:
      1. 1 x D-Sub port
      2. 1 x DVI-D port (Note 2)
      SiI1392 chip*:
      1. 1 x HDMI port*
    • Audio
      1. Realtek ALC888 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF In/Out
      5. Support for CD In
    • LAN
      1. Realtek 8110SC chip (10/100/1000 Mbit)
    • Puertos de Expansión
      1. 1 x PCI Express x16 slot, running at x4 (Refer to the graphics cards support list.)
      2. 3 x PCI slots
    • Interfaz de Almacenamiento
    • South Bridge:
      1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
      2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
      iTE IT8718 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
      1. Integrated in the South Bridge
      2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    • Conectores Internos de E/S
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 4 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 1 x system fan header
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x CD In connector
      11. 1 x S/PDIF In header
      12. 1 x S/PDIF Out header
      13. 2 x USB 2.0/1.1 headers
      14. 1 x serial port header
      15. 1 x power LED header
      16. 1 x chassis intrusion header
    • Conectores del Panel Trasero
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x D-Sub port
      4. 1 x DVI-D port
      5. 1 x HDMI port
      6. 1 x optical S/PDIF Out connector
      7. 4 x USB 2.0/1.1 ports
      8. 1 x RJ-45 port
      9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line out/Microphone)
    • Controlador de E/S
      1. iTE IT8718 chip
    • Monitorización H/W
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control (Note 3)
    • BIOS
      1. 2 x 8 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Características Únicas
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Virtual Dual BIOS
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune (Note 4)
      8. Support for Dynamic Energy Saver Advanced
      9. Support for Time Repair
      10. Support for Q-Share
    • Software Incluido
      1. Norton Internet Security (OEM version)
    • Sistema Operativo
      1. Support for Microsoft® Windows Vista/XP
    • Diseño
      1. Micro ATX Form Factor; 24.4cm x 20.7cm
    • Nota
    • (Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      (Note 2) The DVI-D port does not support D-Sub connection by adapter.
      (Note 3) Whether the CPU/System fan speed control function is supported will depend on the CPU/ System cooler you install.
      (Note 4) Available functions in EasyTune may differ by motherboard model.
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
