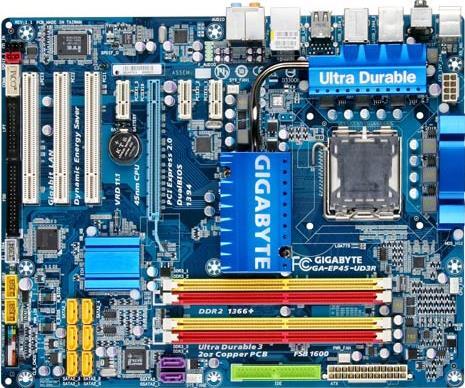

GA-EP45-UD3R (Rev. 1.1)

Rev. 1.1Rev. 1.0
Intel® P45 + ICH10R Chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosAprender másWhere to Buy

Especificación

  • Procesador
    1. Support for an Intel Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package
      (Refer to CPU support list for more information)
    2. L2 cache varies with CPU
  • Front Side Bus
    1. 1600/1333/1066/800 MHz FSB
  • Chipset
    1. North Bridge: Intel P45 Express Chipset
    2. South Bridge: Intel ICH10R
  • Memoria
    1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR2 1366+*/1066/800/667 MHz memory modules
    * Refer to Memory Support List for more information.
  • Audio
    1. Realtek ALC889A codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • LAN
    1. 1 x Realtek 8111C chips (10/100/1000 Mbit)
  • Puertos de Expansión
    1. 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard)
    2. 3 x PCI Express x1 slot
    3. 3 x PCI slots
  • Interfaz de Almacenamiento
  • South Bridge:
    1. 6x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
    2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
    GIGABYTE SATA2 chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2. 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
    3. Support for SATA RAID 0, RAID 1 and JBOD
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
    1. Integrated in the South Bridge
    2. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • IEEE 1394a
    1. T.I. TSB43AB23 chip
    2. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 8 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 1 x S/PDIF Out header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x IEEE 1394a header
    16. 1 x parallel port header
    17. 1 x serial port header
    18. 1 x power LED header
    19. 1 x chassis intrusion header
  • Conectores del Panel Trasero
    1. 1 x PS/2 mouse port
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x optical S/PDIF Out connector
    4. 1 x coaxial S/PDIF Out connector
    5. 8 x USB 2.0/1.1 ports
    6. 2 x IEEE 1394a ports
    7. 1 x RJ-45 ports
    8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line
  • Controlador de E/S
    1. iTE IT8718 chip
  • Monitorización H/W
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for Dual BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Características Únicas
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Dual BIOS
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune 6
    8. Support for Dynamic Energy Saver Advanced
    9. Support for Time Repair
    10. Support for Q-Share
  • Software Incluido
    1. Norton Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Microsoft Windows Vista/XP
  • Diseño
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Support for an Intel Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package
        (Refer to CPU support list for more information)
      2. L2 cache varies with CPU
    • Front Side Bus
      1. 1600/1333/1066/800 MHz FSB
    • Chipset
      1. North Bridge: Intel P45 Express Chipset
      2. South Bridge: Intel ICH10R
    • Memoria
      1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
      2. Dual channel memory architecture
      3. Support for DDR2 1366+*/1066/800/667 MHz memory modules
      * Refer to Memory Support List for more information.
    • Audio
      1. Realtek ALC889A codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF In/Out
      5. Support for CD In
    • LAN
      1. 1 x Realtek 8111C chips (10/100/1000 Mbit)
    • Puertos de Expansión
      1. 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard)
      2. 3 x PCI Express x1 slot
      3. 3 x PCI slots
    • Interfaz de Almacenamiento
    • South Bridge:
      1. 6x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
      2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
      GIGABYTE SATA2 chip:
      1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
      2. 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
      3. Support for SATA RAID 0, RAID 1 and JBOD
      iTE IT8718 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
      1. Integrated in the South Bridge
      2. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    • IEEE 1394a
      1. T.I. TSB43AB23 chip
      2. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
    • Conectores Internos de E/S
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 8 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 2 x system fan headers
      8. 1 x power fan header
      9. 1 x front panel header
      10. 1 x front panel audio header
      11. 1 x CD In connector
      12. 1 x S/PDIF In header
      13. 1 x S/PDIF Out header
      14. 2 x USB 2.0/1.1 headers
      15. 1 x IEEE 1394a header
      16. 1 x parallel port header
      17. 1 x serial port header
      18. 1 x power LED header
      19. 1 x chassis intrusion header
    • Conectores del Panel Trasero
      1. 1 x PS/2 mouse port
      2. 1 x PS/2 keyboard/mouse port
      3. 1 x optical S/PDIF Out connector
      4. 1 x coaxial S/PDIF Out connector
      5. 8 x USB 2.0/1.1 ports
      6. 2 x IEEE 1394a ports
      7. 1 x RJ-45 ports
      8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line
    • Controlador de E/S
      1. iTE IT8718 chip
    • Monitorización H/W
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System/Power fan speed detection
      4. CPU overheating warning
      5. CPU/System/Power fan fail warning
      6. CPU/System fan speed control
    • BIOS
      1. 2 x 8 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for Dual BIOS
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Características Únicas
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Dual BIOS
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune 6
      8. Support for Dynamic Energy Saver Advanced
      9. Support for Time Repair
      10. Support for Q-Share
    • Software Incluido
      1. Norton Internet Security (OEM version)
    • Sistema Operativo
      1. Support for Microsoft Windows Vista/XP
    • Diseño
      1. ATX Form Factor; 30.5cm x 24.4cm
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
