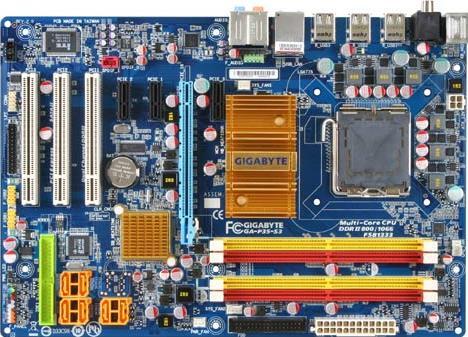

GA-P35-S3 (Rev. 2.0)

Rev. 2.0Rev. 1.0
Intel® P35 + ICH9 Chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme/ Intel® Pentium® D processors
    2. Supports1333/1066/800 MHz FSB
  • Chipset
    1. Northbridge: Intel® P35 Express Chipset
    2. Southbridge: Intel® ICH9
    3. Gigabit Lan Controller
    4. 8 Channels ALC889A Audio controller
  • Memoria
    1. Supports DDR2 1066*/800/667 memory
    2. Dual Channel architecture supports up to 8GB by 4 DIMM slots
    * Please refer "Memory Support List" for memory support information.
  • Puertos de Expansión
    1. 1 PCI Express X16 slot
    2. 3 PCI Express X1 slots
    3. 3 PCI slots
  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 2 x USB 2.0/1.1 connectors ( supports 4 ports)
    14. 1 x chassis intrusion header
    15. 1 x power LED header
  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x coaxial S/PDIF Out connector
    5. 1 x optical S/PDIF Out connector
    6. 1 x serial port
    7. 8 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • BIOS
    1. Supports Virtual DualBIOS
    2. 1 x 8 Mbit flash
    3. Use of licensed AWARD BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
  • Características Únicas
    1. Over-clocking Enhanced
  • Diseño
    1. ATX form factor, 305 x 210mm
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
    3. To enable hot plug capability for the SATA connectors controlled by the ICH9 South Bridge, you must install Windows Vista (on ICH9, hot plug is supported in Windows Vista only) and configure the SATA connectors for AHCI mode. (Refer to manual Chapter 2, "BIOS Setup," "Integrated Peripherals," for details on enabling AHCI.)
  • Procesador
    1. Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme/ Intel® Pentium® D processors
    2. Supports1333/1066/800 MHz FSB
  • Chipset
    1. Northbridge: Intel® P35 Express Chipset
    2. Southbridge: Intel® ICH9
    3. Gigabit Lan Controller
    4. 8 Channels ALC889A Audio controller
  • Memoria
    1. Supports DDR2 1066*/800/667 memory
    2. Dual Channel architecture supports up to 8GB by 4 DIMM slots
    * Please refer "Memory Support List" for memory support information.
  • Puertos de Expansión
    1. 1 PCI Express X16 slot
    2. 3 PCI Express X1 slots
    3. 3 PCI slots
  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 2 x USB 2.0/1.1 connectors ( supports 4 ports)
    14. 1 x chassis intrusion header
    15. 1 x power LED header
  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x coaxial S/PDIF Out connector
    5. 1 x optical S/PDIF Out connector
    6. 1 x serial port
    7. 8 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • BIOS
    1. Supports Virtual DualBIOS
    2. 1 x 8 Mbit flash
    3. Use of licensed AWARD BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
  • Características Únicas
    1. Over-clocking Enhanced
  • Diseño
    1. ATX form factor, 305 x 210mm
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
    3. To enable hot plug capability for the SATA connectors controlled by the ICH9 South Bridge, you must install Windows Vista (on ICH9, hot plug is supported in Windows Vista only) and configure the SATA connectors for AHCI mode. (Refer to manual Chapter 2, "BIOS Setup," "Integrated Peripherals," for details on enabling AHCI.)

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
