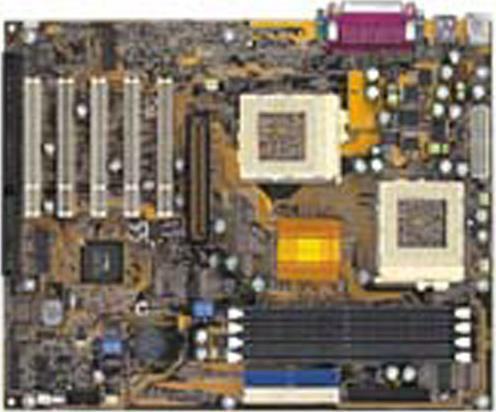

GA-6VXDC7 (Rev. 1.0 / 5.0)

SpecificationsSupportNews & Awards

Specifications

  • CPU
    1. Dual Socket 370 for Intel® FC-PGA Pentium® III or other compatible processors(1)
    2. 66*/100/112*/124*/133/142*/152* MHz FSB
    3. AUTO detect CPU voltage
  • Chipset
    1. VIA Apollo Pro Family AGPset
  • Memory
    1. 4 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Expansion Slots
    1. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x ISA slot
  • I/O Controller
    1. 2 x Ultra DMA 33/66 bus master IDE ports on board/ 2 x Ultra DMA 66/100 Bus Master IDE ports on board (for revision 5.0 only)
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
    4. 2 x USB ports by cable (optional accessary)
    5. IrDA TX / RX header ready
  • H/W Monitoring
    1. CPU/System fan speed detect
    2. CPU/System temperature detect
    3. System voltage detect (Vcore,VDD ,Vcc,+12V)
    4. CPU overheat shutdown detect
  • BIOS
    1. 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control
    5. Auto-detect & report system health status
  • Form Factor
    1. ATX , 4 layer PCB (30.4*24.3 cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
  • Other Features
    1. Support Wake-On-LAN (WOL)
    2. Support Internal/External modem ring on
    3. Support USB K/B or mouse wake up from S3
    4. Includes 4 fan power connectors
    5. Poly fuse for keyboard over-current protection
    6. Support STR (Suspend-To-RAM) function2
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 shut down & switch
  • CPU
    1. Dual Socket 370 for Intel® FC-PGA Pentium® III or other compatible processors(1)
    2. 66*/100/112*/124*/133/142*/152* MHz FSB
    3. AUTO detect CPU voltage
  • Chipset
    1. VIA Apollo Pro Family AGPset
  • Memory
    1. 4 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Expansion Slots
    1. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x ISA slot
  • I/O Controller
    1. 2 x Ultra DMA 33/66 bus master IDE ports on board/ 2 x Ultra DMA 66/100 Bus Master IDE ports on board (for revision 5.0 only)
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
    4. 2 x USB ports by cable (optional accessary)
    5. IrDA TX / RX header ready
  • H/W Monitoring
    1. CPU/System fan speed detect
    2. CPU/System temperature detect
    3. System voltage detect (Vcore,VDD ,Vcc,+12V)
    4. CPU overheat shutdown detect
  • BIOS
    1. 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control
    5. Auto-detect & report system health status
  • Form Factor
    1. ATX , 4 layer PCB (30.4*24.3 cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
  • Other Features
    1. Support Wake-On-LAN (WOL)
    2. Support Internal/External modem ring on
    3. Support USB K/B or mouse wake up from S3
    4. Includes 4 fan power connectors
    5. Poly fuse for keyboard over-current protection
    6. Support STR (Suspend-To-RAM) function2
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 shut down & switch

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
