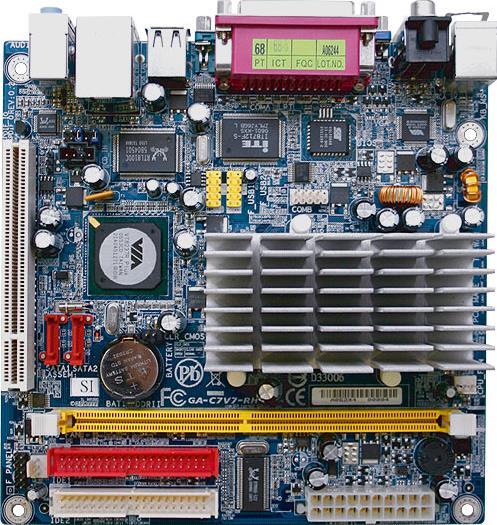

C7V7-CSILegacy | Software updates supported
VIA C7 1.5GHz + CN700 + VT8237R Plus
- Mini-ITX form factor addresses slim nettops, affordable all-in-one PCs, thin-client PCs.
- Passively cooled VIA C7 1.5GHz processor onboard.
- Integrated VIA graphic engine.
- Support 1 DIMM of DDR2 533MHz memory.
- AC97 5.1 channel audio codec.
- 10/100Mbps Fast Ethernet.
Specifications
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
- Onboard VIA C7 1.5GHz fanless processor
Chipset
- VIA CN700 chipset with VIA VT8237R Plus
Memory
- 1 DDR2 DIMM socket
- 533MHz up to 1GB
LAN
- 1 10/100 Fast Ethernet (Realtek RTL8100C)
Video
- VIA UniChrome Pro (VIA CN700)
Audio
- AC'97 5.1 channel (Realtek ALC653)
SATA
- 2 ports SATA 3Gbps via VIA VT8237R Plus
IDE/ SCSI
- 1 39pin IDE
- 1 40pin IDE
Expansion Slots
- 1 PCI
Internal I/O
- 1 COM
- 4 USB
Rear I/O
- 3 Audio
- 1 COM
- 1 LPT
- 2 PS2
- 1 RJ45
- 4 USB
- 1 VGA
Power Supply
- ATX power 20pin
Ordering Information
- 9MC7V7CSIR-SI-10I
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
