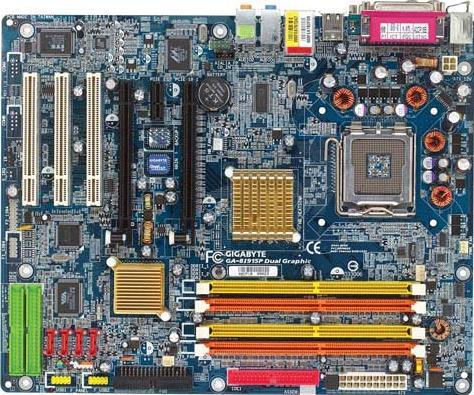

GA-8I915P Dual Graphic (Rev. 1.x)

OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. LGA 775 for Pentium® 4 Processor
  • Front Side Bus
    1. 800 / 533 MHz FSB
  • Chipset
    1. Northbridge : Intel® 915P
    2. Southbridge : Intel® ICH6R
    3. Integrated Peripherals :
      1. T.I. IEEE1394 controller
      2. Marvell 8001 Gigabit Ethernet controller
      3. C-Media 9880 audio codec
      4. VIA VT6410 RAID controller
  • Memory
    1. Type: Dual Channel DDR2 533/400 Dual Channel DDR400/333
    2. Max capacity: 4 GB
    3. DIMM slots: 2 DIMMs for DDR2, 2 DIMMs for DDR
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Expansion Slots
    1. 2 * PCIe X 16 slot
    2. 1 * PCIe X 1 slots
    3. 3 * PCI slots
  • Internal I/O Connectors
    1. 4 x Serial ATA connectors
    2. 2 x USB 2.0 connectors (4 ports by cable)
    3. 1 x FDD connector
    4. 1 x UltraDMA 100/66 IDE
    5. 2 x UltraDMA 133 IDE (For HDDs only)
    6. 2 x IEEE 1394 connectors (3 ports)
    7. 3 x cooling fan pin headers
    8. 1 x CD in
    9. 1 x 24-pin ATX Power connector
    10. 1 x 4-pin ATX 12V Power connector
  • Back Panel Connectors
    1. 4 * USB 2.0 ports
    2. 1 * RJ45 LAN ports
    3. 2 * S/P DIF jacks (In/Out)
    4. 6 * Audio jacks (7.1-Ch Out / Line-in / Mic in)
    5. 1 * LPT port
    6. 2 * PS/2 ports(Keyboard/Mouse)
  • H/W Monitoring
    1. ITE 8712F
    2. System health status auto-detect and report by BIOS
    3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
  • BIOS
    1. 2 * 4M bit flash ROM
  • Bundled Software
    1. Norton Internet Security 2004
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Form Factor
    1. ATX
    2. 30.5cm * 24.4cm
  • Other Features
    1. C.I.A. 2 (CPU Intelligent Accelerator 2)
    2. M.I.B. 2 (Memory Intelligent Booster 2)
    3. C.A.M. (CPU Adjustable Multiplier)
    4. R.G.B. (Robust Graphics Booster)
    5. EasyTune™ 5
    6. M.I.T. (Motherboard Intelligent Tweaker)
    7. Download Center
    8. S.O.S. (System Overclock Saver)
    9. C.O.M. (Corporate Online Management)
    10. Miracle of Xpress3
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. LGA 775 for Pentium® 4 Processor
    • Front Side Bus
      1. 800 / 533 MHz FSB
    • Chipset
      1. Northbridge : Intel® 915P
      2. Southbridge : Intel® ICH6R
      3. Integrated Peripherals :
        1. T.I. IEEE1394 controller
        2. Marvell 8001 Gigabit Ethernet controller
        3. C-Media 9880 audio codec
        4. VIA VT6410 RAID controller
    • Memory
      1. Type: Dual Channel DDR2 533/400 Dual Channel DDR400/333
      2. Max capacity: 4 GB
      3. DIMM slots: 2 DIMMs for DDR2, 2 DIMMs for DDR
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
    • Expansion Slots
      1. 2 * PCIe X 16 slot
      2. 1 * PCIe X 1 slots
      3. 3 * PCI slots
    • Internal I/O Connectors
      1. 4 x Serial ATA connectors
      2. 2 x USB 2.0 connectors (4 ports by cable)
      3. 1 x FDD connector
      4. 1 x UltraDMA 100/66 IDE
      5. 2 x UltraDMA 133 IDE (For HDDs only)
      6. 2 x IEEE 1394 connectors (3 ports)
      7. 3 x cooling fan pin headers
      8. 1 x CD in
      9. 1 x 24-pin ATX Power connector
      10. 1 x 4-pin ATX 12V Power connector
    • Back Panel Connectors
      1. 4 * USB 2.0 ports
      2. 1 * RJ45 LAN ports
      3. 2 * S/P DIF jacks (In/Out)
      4. 6 * Audio jacks (7.1-Ch Out / Line-in / Mic in)
      5. 1 * LPT port
      6. 2 * PS/2 ports(Keyboard/Mouse)
    • H/W Monitoring
      1. ITE 8712F
      2. System health status auto-detect and report by BIOS
      3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
    • BIOS
      1. 2 * 4M bit flash ROM
    • Bundled Software
      1. Norton Internet Security 2004
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Norton™ Spam Alert
      2. GIGABYTE Windows Utility Manager
      3. Adobe Acrobat Reader
    • Form Factor
      1. ATX
      2. 30.5cm * 24.4cm
    • Other Features
      1. C.I.A. 2 (CPU Intelligent Accelerator 2)
      2. M.I.B. 2 (Memory Intelligent Booster 2)
      3. C.A.M. (CPU Adjustable Multiplier)
      4. R.G.B. (Robust Graphics Booster)
      5. EasyTune™ 5
      6. M.I.T. (Motherboard Intelligent Tweaker)
      7. Download Center
      8. S.O.S. (System Overclock Saver)
      9. C.O.M. (Corporate Online Management)
      10. Miracle of Xpress3
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
