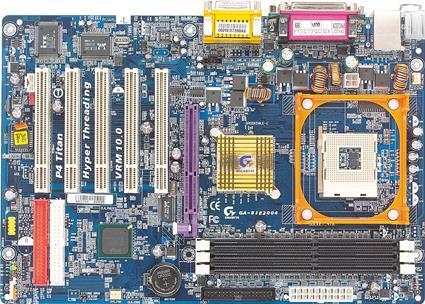

GA-8IE2004-L

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 533/400 MHz FSB
  • Chipset
    1. North Bridge : Intel® 845E MCH
    2. South Bridge : Intel® ICH2
    3. Integrated Peripherals :
      1. Realtek 8100C Ethernet controller
      2. Realtek ALC655 CODEC
  • Memory
    1. Type: DDR 266 / 200
    2. Max capacity: 2 GB
    3. DIMM slots : 3
  • Expansion Slots
    1. 1 x AGP 4X, supports 1.5V display card only
    2. 5 x PCI (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 1 x USB 1.1(supports 2 ports by cable)
    2. 2 x UltraDMA 100/66 Bus Master IDE
    3. 1 x FDD
    4. CD/AUX in
  • Back Panel Connectors
    1. 2 x USB 1.1 ports
    2. 2 x COM ports
    3. 1 x RJ45 LAN port
    4. 1 x LPT port
    5. 3 x Audio ports(Line-in / Line-out / MIC)
    6. 2 x PS/2 ports (Keyboard/Mouse)
    7. 1 x Game / Midi port
  • H/W Monitoring
    1. ITE 8712F
    2. System health status auto-detect and report by BIOS
    3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage,
  • BIOS
    1. 1 X 2M bit flash ROM, Award BIOS
  • Bundled Software
    1. Norton Internet Security 2003
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Form Factor
    1. ATX
    2. 29.5cm x 20.0cm
  • CPU/AGP/DIMM setting
    1. CPU FSB / Multiplier adjustable via BIOS
    2. AGP Clock adjustable via BIOS
    3. DIMM Clock adjustable via BIOS
  • Driver
    1. Intel® chipset driver
    2. IAA (Intel® Application Accelerator)
    3. Realtek LAN driver
    4. Realtek audio driver
  • Other Features
    1. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
    2. Suspend to RAM (STR)
    3. Supports USB KB / MS wake up from S3
    4. Poly fuse for keyboard over-current protection
    5. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Socket 478 for Intel® Pentium® 4 processor
    • Front Side Bus
      1. 533/400 MHz FSB
    • Chipset
      1. North Bridge : Intel® 845E MCH
      2. South Bridge : Intel® ICH2
      3. Integrated Peripherals :
        1. Realtek 8100C Ethernet controller
        2. Realtek ALC655 CODEC
    • Memory
      1. Type: DDR 266 / 200
      2. Max capacity: 2 GB
      3. DIMM slots : 3
    • Expansion Slots
      1. 1 x AGP 4X, supports 1.5V display card only
      2. 5 x PCI (PCI 2.2 compliant)
    • Internal I/O Connectors
      1. 1 x USB 1.1(supports 2 ports by cable)
      2. 2 x UltraDMA 100/66 Bus Master IDE
      3. 1 x FDD
      4. CD/AUX in
    • Back Panel Connectors
      1. 2 x USB 1.1 ports
      2. 2 x COM ports
      3. 1 x RJ45 LAN port
      4. 1 x LPT port
      5. 3 x Audio ports(Line-in / Line-out / MIC)
      6. 2 x PS/2 ports (Keyboard/Mouse)
      7. 1 x Game / Midi port
    • H/W Monitoring
      1. ITE 8712F
      2. System health status auto-detect and report by BIOS
      3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage,
    • BIOS
      1. 1 X 2M bit flash ROM, Award BIOS
    • Bundled Software
      1. Norton Internet Security 2003
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Norton™ Spam Alert
      2. GIGABYTE Windows Utility Manager
      3. Adobe Acrobat Reader
    • Form Factor
      1. ATX
      2. 29.5cm x 20.0cm
    • CPU/AGP/DIMM setting
      1. CPU FSB / Multiplier adjustable via BIOS
      2. AGP Clock adjustable via BIOS
      3. DIMM Clock adjustable via BIOS
    • Driver
      1. Intel® chipset driver
      2. IAA (Intel® Application Accelerator)
      3. Realtek LAN driver
      4. Realtek audio driver
    • Other Features
      1. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
      2. Suspend to RAM (STR)
      3. Supports USB KB / MS wake up from S3
      4. Poly fuse for keyboard over-current protection
      5. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
    • Power
      1. ATX power connector and ATX 12V connector
      2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
