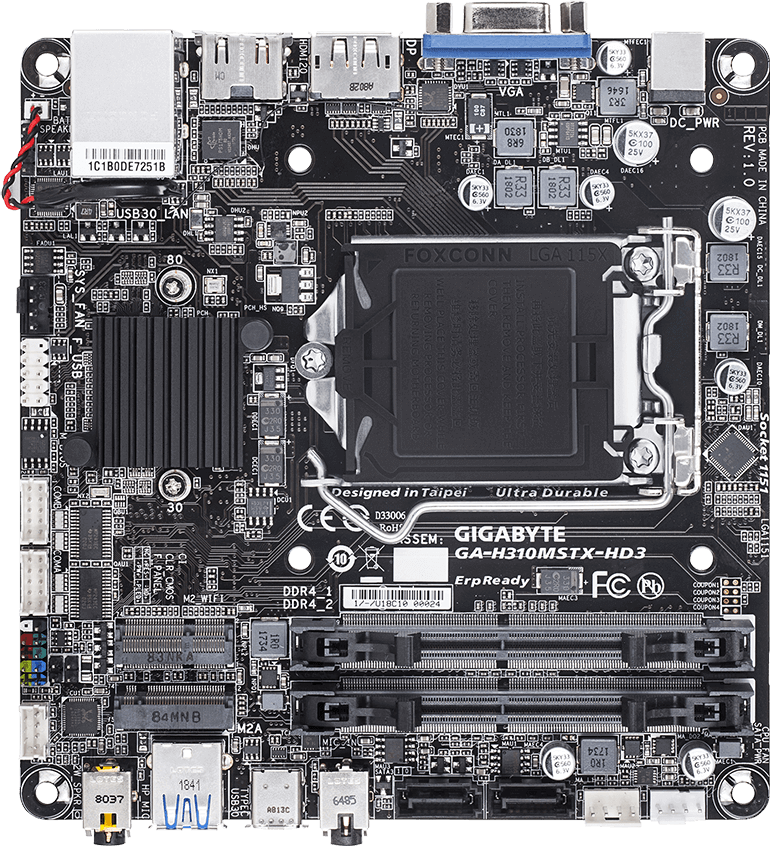

GA-H310MSTX-HD3 (Rev. 1.0)

Intel® H310 Chipset
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package (up to 65W)
      (Go to GIGABYTE's website for the latest CPU support list.)
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® H310 Express Chipset
  • Memory
    1. 2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 2400/2133 MHz memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
    Maximum shared memory of 1 GB
  • Audio
    1. Realtek® ALC255 codec
    2. High Definition Audio
    3. 2-channel
  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
  • Storage Interface
  • Chipset:
    1. 2 x SATA 6Gb/s connectors
    2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA/PCIe mode SSD support)
  • USB
  • Chipset:
    1. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
    2. 3 x USB 3.0/2.0 ports (2 ports on the back panel, 1 port onboard)
    3. 2 x USB 2.0/1.1 ports available through the internal USB header
  • Internal I/O Connectors
    1. 1 x CPU fan header
    2. 1 x system fan header
    3. 2 x SATA 6Gb/s connectors
    4. 1 x M.2 Socket 3 connector
    5. 1 x SATA power connector
    6. 1 x front panel header
    7. 1 x battery power cable connector
    8. 1 x USB 2.0/1.1 header
    9. 2 x serial port headers
    10. 1 x speaker header
    11. 1 x buzzer header
    12. 1 x Clear CMOS jumper
    13. 1 x chassis intrusion header
    14. 1 x USB 3.0/2.0 header
    15. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
    16. 1 x microphone jack
    17. 1 x headphone and microphone combo jack
  • Back Panel Connectors
    1. 1 x DC In power connector
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 1 x DisplayPort
    5. 2 x USB 3.0/2.0 ports
    6. 1 x RJ-45 port
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan fail warning
    4. CPU/System fan speed detection
    5. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
    6. CPU/System overheating warning
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications.
      @BIOS
    2. Support for Q-Flash
  • Bundled Software
    1. Norton® Internet Security (OEM version)
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Mini-STX Form Factor; 14.0cm x 14.7cm
  • Operating Temperature
  • 0°C to +50°C
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package (up to 65W)
        (Go to GIGABYTE's website for the latest CPU support list.)
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® H310 Express Chipset
    • Memory
      1. 2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory
      2. Dual channel memory architecture
      3. Support for DDR4 2400/2133 MHz memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
    • Integrated Graphics Processor-Intel® HD Graphics support
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
        * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
      3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
        * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
      Maximum shared memory of 1 GB
    • Audio
      1. Realtek® ALC255 codec
      2. High Definition Audio
      3. 2-channel
    • LAN
      1. Intel® GbE LAN chip (10/100/1000 Mbit)
    • Expansion Slots
      1. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
    • Storage Interface
    • Chipset:
      1. 2 x SATA 6Gb/s connectors
      2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA/PCIe mode SSD support)
    • USB
    • Chipset:
      1. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
      2. 3 x USB 3.0/2.0 ports (2 ports on the back panel, 1 port onboard)
      3. 2 x USB 2.0/1.1 ports available through the internal USB header
    • Internal I/O Connectors
      1. 1 x CPU fan header
      2. 1 x system fan header
      3. 2 x SATA 6Gb/s connectors
      4. 1 x M.2 Socket 3 connector
      5. 1 x SATA power connector
      6. 1 x front panel header
      7. 1 x battery power cable connector
      8. 1 x USB 2.0/1.1 header
      9. 2 x serial port headers
      10. 1 x speaker header
      11. 1 x buzzer header
      12. 1 x Clear CMOS jumper
      13. 1 x chassis intrusion header
      14. 1 x USB 3.0/2.0 header
      15. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
      16. 1 x microphone jack
      17. 1 x headphone and microphone combo jack
    • Back Panel Connectors
      1. 1 x DC In power connector
      2. 1 x D-Sub port
      3. 1 x HDMI port
      4. 1 x DisplayPort
      5. 2 x USB 3.0/2.0 ports
      6. 1 x RJ-45 port
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan fail warning
      4. CPU/System fan speed detection
      5. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
      6. CPU/System overheating warning
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications.
        @BIOS
      2. Support for Q-Flash
    • Bundled Software
      1. Norton® Internet Security (OEM version)
    • Operating System
      1. Support for Windows 10 64-bit
    • Form Factor
      1. Mini-STX Form Factor; 14.0cm x 14.7cm
    • Operating Temperature
    • 0°C to +50°C
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
