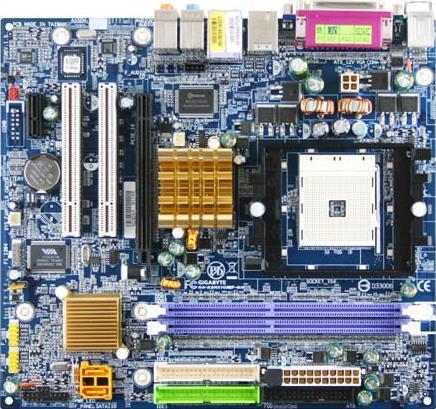

GA-K8N51GMF-RH (Rev. 1.0)

OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 754 supports AMD Athlon™64 / Sempron Processor
  • Chipset
    1. NVIDIA® GeForce™ 6100 and NVIDIA nForce™ 410
    2. Super I/O: Winbond W83627 chip
    3. Integrated peripherals
      1. VIA VT 6307 IEEE1394 controller
      2. Realtek 8201 10/100 LAN PHY chip
      3. Realtek ALC850 Audio Codec
  • Memory
    1. Type: DDR400/ 333/ 266 -184pin
    2. Max capacity: Up to 2GB by 2 DIMM slots
  • Expansion Slots
    1. 1 x PCI-Express X16 slot
    2. 1 x PCI-Express X1 slot
    3. 2 x PCI slots (PCI 2.3 compliant)
  • Internal I/O Connectors
    1. 2 X Serial ATA 3Gb/s connectors
    2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
    5. 1 x IEEE 1394 connector (supports 1 port)
    6. 2 x cooling fan pin headers
    7. S/P DIF in/out connector
    8. CD in connector
    9. 1 x Com port connector
  • Back Panel Connectors
    1. PS/2 Keyboard/ Mouse
    2. 1 x VGA port
    3. 1 x LPT port
    4. 4 x USB 2.0/1.1 ports
    5. 1 x RJ45 port
    6. 1 x IEEE1394 port
    7. Audio (4 x Line-out/ 1 x Line-in/ 1 x MIC) connectors
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, CPU voltage, and fan speed
  • BIOS
    1. 4M bit flash ROM, Award BIOS
  • Form Factor
    1. Micro-ATX form factor
    2. 24.4 x 22.0 cm
  • Other Features
    1. NVIDIA RAID 0,1
    2. Norton Internet Security
    3. Download Center
    4. Xpress Installation
    5. Xpress Recovery
  • Power
    1. ATX power connector and ATX 12V connector
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.
  • CPU
    1. Socket 754 supports AMD Athlon™64 / Sempron Processor
  • Chipset
    1. NVIDIA® GeForce™ 6100 and NVIDIA nForce™ 410
    2. Super I/O: Winbond W83627 chip
    3. Integrated peripherals
      1. VIA VT 6307 IEEE1394 controller
      2. Realtek 8201 10/100 LAN PHY chip
      3. Realtek ALC850 Audio Codec
  • Memory
    1. Type: DDR400/ 333/ 266 -184pin
    2. Max capacity: Up to 2GB by 2 DIMM slots
  • Expansion Slots
    1. 1 x PCI-Express X16 slot
    2. 1 x PCI-Express X1 slot
    3. 2 x PCI slots (PCI 2.3 compliant)
  • Internal I/O Connectors
    1. 2 X Serial ATA 3Gb/s connectors
    2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
    5. 1 x IEEE 1394 connector (supports 1 port)
    6. 2 x cooling fan pin headers
    7. S/P DIF in/out connector
    8. CD in connector
    9. 1 x Com port connector
  • Back Panel Connectors
    1. PS/2 Keyboard/ Mouse
    2. 1 x VGA port
    3. 1 x LPT port
    4. 4 x USB 2.0/1.1 ports
    5. 1 x RJ45 port
    6. 1 x IEEE1394 port
    7. Audio (4 x Line-out/ 1 x Line-in/ 1 x MIC) connectors
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, CPU voltage, and fan speed
  • BIOS
    1. 4M bit flash ROM, Award BIOS
  • Form Factor
    1. Micro-ATX form factor
    2. 24.4 x 22.0 cm
  • Other Features
    1. NVIDIA RAID 0,1
    2. Norton Internet Security
    3. Download Center
    4. Xpress Installation
    5. Xpress Recovery
  • Power
    1. ATX power connector and ATX 12V connector
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
