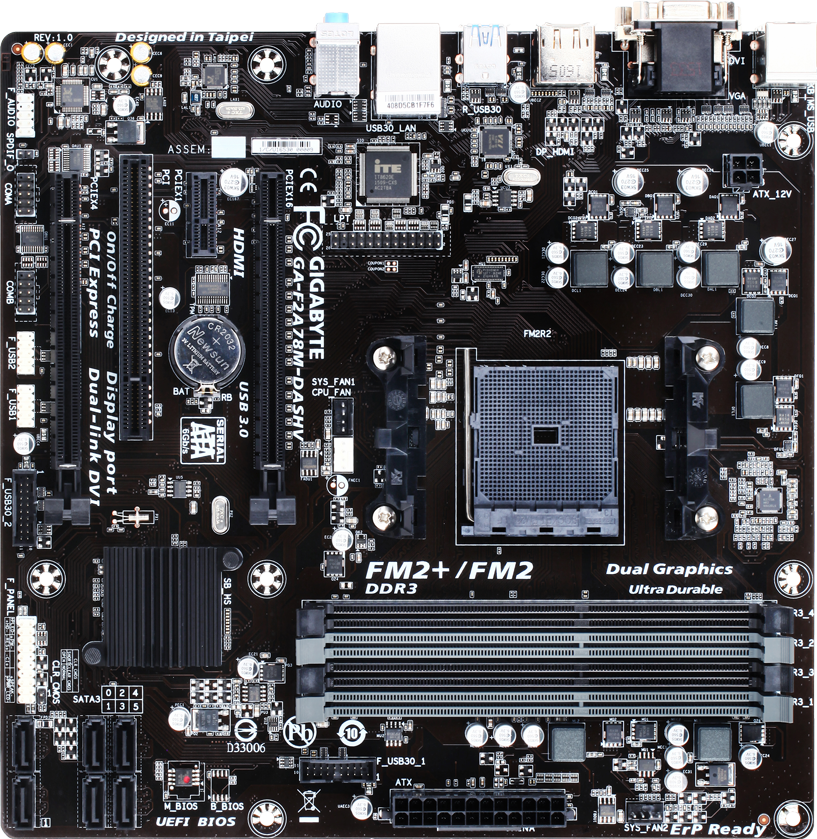

GA-F2A78M-DASHV (Rev. 1.0)

AMD A78 chipset
OverviewSpecificationsSupportWhere to Buy

Specifications

  • APU
  • FM2+ Socket:
    1. AMD A series processors
    2. AMD Athlon™ series processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD A78
  • Μνήμη
    1. 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
    2. Dual channel memory architecture
    3. Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
    4. Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Κύκλωμα Γραφικών
  • Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
    2. 1 x DVI-D port, supporting a maximum resolution of 2560x1600
      * Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160
      * The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU.
      * Support for HDMI 1.4a version.
    4. 1 x DisplayPort, supporting a maximum resolution of 3840x2160
      * The DisplayPort does not support Hot plug. If you want to change to another graphics port when the computer is on, be sure to turn off the computer first.
      * Support for DisplayPort 1.2 version.
    5. Maximum shared memory of 2 GB
  • Ήχος
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • TPM
    1. Infineon chip, supporting TPM 2.0
  • Υποδοχές επέκτασης
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
      * To support PCI Express 3.0, you must install an FM2+ APU.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 1 x PCI Express x1 slot
      (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
    4. 1 x PCI slot
  • Multi Graphics τεχνολογία
    1. Support for AMD Dual Graphics technology
      * Only A series APUs support AMD Dual Graphics.
    2. Support for AMD Eyefinity technology
  • Interface αποθήκευσης
  • Chipset:
    1. 6 x SATA 6Gb/s connectors
    2. Support for RAID 0, RAID 1, RAID 10, and JBOD
  • USB
  • Chipset:
    1. 4 x USB 3.0/2.0 ports (available through the internal USB headers)
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    ŠŠVIA® VL805 chip:
    1. 4 x USB 3.0/2.0 ports on the back panel
  • Εσωτερικές υποδοχές
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 6 x SATA 6Gb/s connectors
    4. 1 x APU fan header
    5. 2 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 2 x USB 3.0/2.0 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x parallel port header
    12. 2 x serial port header
    13. 1 x Clear CMOS jumper
  • Οπίσθιες υποδοχές
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 1 x DisplayPort
    6. 4 x USB 3.0/2.0 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O Ελεγκτής
    1. iTE® I/O Controller Chip
  • Κύκλωμα ελέγχου
    1. System voltage detection
    2. APU/System temperature detection
    3. APU/System fan speed detection
    4. APU overheating warning
    5. APU/System fan fail warning
    6. APU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Άλλα χαρακτηριστικά
    1. Support for @BIOS
    2. Support for Xpress Install
    3. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    4. Support for Smart Recovery 2
    5. Support for ON/OFF Charge
  • Bundled Software
    1. Norton® Internet Security (OEM version)
  • Λειτουργικό Σύστημα
    1. Support for Windows 8.1/8/7
  • Τύπος μητρικής
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Παρατήρηση
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
  • APU
  • FM2+ Socket:
    1. AMD A series processors
    2. AMD Athlon™ series processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD A78
  • Μνήμη
    1. 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
    2. Dual channel memory architecture
    3. Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
    4. Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Κύκλωμα Γραφικών
  • Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
    2. 1 x DVI-D port, supporting a maximum resolution of 2560x1600
      * Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160
      * The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU.
      * Support for HDMI 1.4a version.
    4. 1 x DisplayPort, supporting a maximum resolution of 3840x2160
      * The DisplayPort does not support Hot plug. If you want to change to another graphics port when the computer is on, be sure to turn off the computer first.
      * Support for DisplayPort 1.2 version.
    5. Maximum shared memory of 2 GB
  • Ήχος
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • TPM
    1. Infineon chip, supporting TPM 2.0
  • Υποδοχές επέκτασης
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
      * To support PCI Express 3.0, you must install an FM2+ APU.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 1 x PCI Express x1 slot
      (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
    4. 1 x PCI slot
  • Multi Graphics τεχνολογία
    1. Support for AMD Dual Graphics technology
      * Only A series APUs support AMD Dual Graphics.
    2. Support for AMD Eyefinity technology
  • Interface αποθήκευσης
  • Chipset:
    1. 6 x SATA 6Gb/s connectors
    2. Support for RAID 0, RAID 1, RAID 10, and JBOD
  • USB
  • Chipset:
    1. 4 x USB 3.0/2.0 ports (available through the internal USB headers)
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    ŠŠVIA® VL805 chip:
    1. 4 x USB 3.0/2.0 ports on the back panel
  • Εσωτερικές υποδοχές
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 6 x SATA 6Gb/s connectors
    4. 1 x APU fan header
    5. 2 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 2 x USB 3.0/2.0 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x parallel port header
    12. 2 x serial port header
    13. 1 x Clear CMOS jumper
  • Οπίσθιες υποδοχές
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 1 x DisplayPort
    6. 4 x USB 3.0/2.0 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O Ελεγκτής
    1. iTE® I/O Controller Chip
  • Κύκλωμα ελέγχου
    1. System voltage detection
    2. APU/System temperature detection
    3. APU/System fan speed detection
    4. APU overheating warning
    5. APU/System fan fail warning
    6. APU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Άλλα χαρακτηριστικά
    1. Support for @BIOS
    2. Support for Xpress Install
    3. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    4. Support for Smart Recovery 2
    5. Support for ON/OFF Charge
  • Bundled Software
    1. Norton® Internet Security (OEM version)
  • Λειτουργικό Σύστημα
    1. Support for Windows 8.1/8/7
  • Τύπος μητρικής
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Παρατήρηση
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* Οι όροι HDMI, HDMI High-Definition Multimedia Interface, Εμπορική διαμόρφωση (trade dress) HDMI και τα λογότυπα HDMI, είναι εμπορικά σήματα ή εμπορικά σήματα κατατεθέντα της εταιρείας HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
