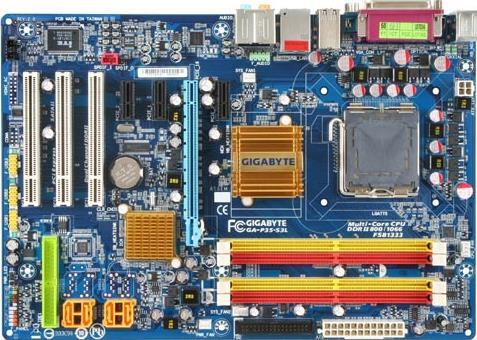

GA-P35-S3L (Rev. 2.0)

Rev. 2.0Rev. 1.0
Intel® P35 + ICH9 Chipset
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Επεξεργαστής
    1. Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme/ Intel® Pentium® D processors
    2. Supports1333/1066/800 MHz FSB
  • Chipset
    1. Northbridge: Intel® P35 Express Chipset
    2. Southbridge: Intel® ICH9
    3. Gigabit Lan Controller
    4. 8 Channels ALC888 Audio controller
  • Μνήμη
    1. Supports DDR2 1066*/800/667memory
    2. Dual Channel architecture supports up to 8GB by 4 DIMM slots
    * Please refer "Memory Support List" for memory support information.
  • Υποδοχές επέκτασης
    1. 1 PCI Express X16 slot
    2. 3 PCI Express X1 slots
    3. 3 PCI slots
  • Εσωτερικές υποδοχές
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 4 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 1 x S/PDIF out connector
    14. 3 x USB 2.0/1.1 headers (supports 6 ports)
    15. 1 x chassis intrusion header
    16. 1 x power LED header
  • Οπίσθιες υποδοχές
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x coaxial S/PDIF Out connector
    5. 1 x optical S/PDIF Out connector
    6. 1 x serial port
    7. 6 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • BIOS
    1. Supports Virtual DualBIOS
    2. 1 x 8 Mbit flash
    3. Use of licensed AWARD BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
  • Άλλα χαρακτηριστικά
    1. Support for @BIOS
    2. Support for Download Center
    3. Support for Q-Flash
    4. Support for EasyTune
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for Virtual Dual BIOS
  • Τύπος μητρικής
    1. ATX form factor, 305 x 210mm
  • Other Features
    1. Over-clocking Enhanced
  • Παρατήρηση
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
    3. To enable hot plug capability for the SATA connectors controlled by the ICH9 South Bridge, you must install Windows Vista (on ICH9, hot plug is supported in Windows Vista only) and configure the SATA connectors for AHCI mode. (Refer to manual Chapter 2, "BIOS Setup," "Integrated Peripherals," for details on enabling AHCI.)
  • Επεξεργαστής
    1. Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme/ Intel® Pentium® D processors
    2. Supports1333/1066/800 MHz FSB
  • Chipset
    1. Northbridge: Intel® P35 Express Chipset
    2. Southbridge: Intel® ICH9
    3. Gigabit Lan Controller
    4. 8 Channels ALC888 Audio controller
  • Μνήμη
    1. Supports DDR2 1066*/800/667memory
    2. Dual Channel architecture supports up to 8GB by 4 DIMM slots
    * Please refer "Memory Support List" for memory support information.
  • Υποδοχές επέκτασης
    1. 1 PCI Express X16 slot
    2. 3 PCI Express X1 slots
    3. 3 PCI slots
  • Εσωτερικές υποδοχές
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 4 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 1 x S/PDIF out connector
    14. 3 x USB 2.0/1.1 headers (supports 6 ports)
    15. 1 x chassis intrusion header
    16. 1 x power LED header
  • Οπίσθιες υποδοχές
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x coaxial S/PDIF Out connector
    5. 1 x optical S/PDIF Out connector
    6. 1 x serial port
    7. 6 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • BIOS
    1. Supports Virtual DualBIOS
    2. 1 x 8 Mbit flash
    3. Use of licensed AWARD BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
  • Άλλα χαρακτηριστικά
    1. Support for @BIOS
    2. Support for Download Center
    3. Support for Q-Flash
    4. Support for EasyTune
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for Virtual Dual BIOS
  • Τύπος μητρικής
    1. ATX form factor, 305 x 210mm
  • Other Features
    1. Over-clocking Enhanced
  • Παρατήρηση
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
    3. To enable hot plug capability for the SATA connectors controlled by the ICH9 South Bridge, you must install Windows Vista (on ICH9, hot plug is supported in Windows Vista only) and configure the SATA connectors for AHCI mode. (Refer to manual Chapter 2, "BIOS Setup," "Integrated Peripherals," for details on enabling AHCI.)

* Οι όροι HDMI, HDMI High-Definition Multimedia Interface, Εμπορική διαμόρφωση (trade dress) HDMI και τα λογότυπα HDMI, είναι εμπορικά σήματα ή εμπορικά σήματα κατατεθέντα της εταιρείας HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
