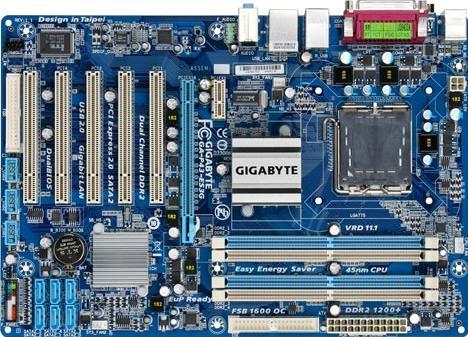

GA-P43-ES3G (Rev. 1.4)

Rev. 1.4Rev. 1.0Rev. 1.1
Intel® P43 + ICH10 Chipset
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Επεξεργαστής
    1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/Intel® Celeron® processor in the LGA 775 package
      (Go to GIGABYTE's website for the latest CPU support list.)
    2. L2 cache varies with CPU
  • Front Side Bus
    1. 1600(O.C.)/1333/1066/800 MHz FSB
  • Chipset
    1. North Bridge: Intel® P43 Express Chipset
    2. South Bridge: Intel® ICH10
  • Μνήμη
    1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR2 1200/1066/800/667 MHz memory modules
    (Go to GIGABYTE's website for the latest memory support list.)
  • Ήχος
    1. Realtek ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
    5. Support for CD In
  • LAN
    1. Realtek 8111D chip (10/100/1000 Mbit)
  • Υποδοχές επέκτασης
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
    2. 1 x PCI Express x1 slot
    3. 5 x PCI slots
  • Interface αποθήκευσης
  • South Bridge:
    1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
    JMicron 368 chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
    1. Integrated in the South Bridge
    2. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
  • Εσωτερικές υποδοχές
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x CD In connector
    11. 1 x S/PDIF Out header
    12. 3 x USB 2.0/1.1 headers
    13. 1 x power LED header
    14. 1 x chassis intrusion header
  • Οπίσθιες υποδοχές
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x coaxial S/PDIF Out connector
    6. 6 x USB 2.0/1.1 ports
    7. 1 x RJ-45 ports
    8. 3 x audio jacks (Line In/Line Out/Microphone)
  • I/O Ελεγκτής
    1. iTE IT8718 chip
  • Κύκλωμα ελέγχου
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System samrt fan control
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Άλλα χαρακτηριστικά
    1. Support for @BIOS
    2. Support for Download Center
    3. Support for Q-Flash
    4. Support for EasyTune
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for Virtual Dual BIOS
    8. Support for Easy Energy Saver
    9. Support for ON/OFF Charge
  • Bundled Software
    1. Norton Internet Security (OEM version)
  • Λειτουργικό Σύστημα
    1. Support for Microsoft® Windows Vista/XP
  • Τύπος μητρικής
    1. ATX Form Factor; 30.5cm x 21cm
  • Παρατήρηση
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Επεξεργαστής
      1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/Intel® Celeron® processor in the LGA 775 package
        (Go to GIGABYTE's website for the latest CPU support list.)
      2. L2 cache varies with CPU
    • Front Side Bus
      1. 1600(O.C.)/1333/1066/800 MHz FSB
    • Chipset
      1. North Bridge: Intel® P43 Express Chipset
      2. South Bridge: Intel® ICH10
    • Μνήμη
      1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
      2. Dual channel memory architecture
      3. Support for DDR2 1200/1066/800/667 MHz memory modules
      (Go to GIGABYTE's website for the latest memory support list.)
    • Ήχος
      1. Realtek ALC892 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
      5. Support for CD In
    • LAN
      1. Realtek 8111D chip (10/100/1000 Mbit)
    • Υποδοχές επέκτασης
      1. 1 x PCI Express x16 slot, running at x16
        (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
      2. 1 x PCI Express x1 slot
      3. 5 x PCI slots
    • Interface αποθήκευσης
    • South Bridge:
      1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
      JMicron 368 chip:
      1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
      iTE IT8718 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
      1. Integrated in the South Bridge
      2. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
    • Εσωτερικές υποδοχές
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 6 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 2 x system fan headers
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x CD In connector
      11. 1 x S/PDIF Out header
      12. 3 x USB 2.0/1.1 headers
      13. 1 x power LED header
      14. 1 x chassis intrusion header
    • Οπίσθιες υποδοχές
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x parallel port
      4. 1 x serial port
      5. 1 x coaxial S/PDIF Out connector
      6. 6 x USB 2.0/1.1 ports
      7. 1 x RJ-45 ports
      8. 3 x audio jacks (Line In/Line Out/Microphone)
    • I/O Ελεγκτής
      1. iTE IT8718 chip
    • Κύκλωμα ελέγχου
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System samrt fan control
    • BIOS
      1. 2 x 8 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Άλλα χαρακτηριστικά
      1. Support for @BIOS
      2. Support for Download Center
      3. Support for Q-Flash
      4. Support for EasyTune
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for Virtual Dual BIOS
      8. Support for Easy Energy Saver
      9. Support for ON/OFF Charge
    • Bundled Software
      1. Norton Internet Security (OEM version)
    • Λειτουργικό Σύστημα
      1. Support for Microsoft® Windows Vista/XP
    • Τύπος μητρικής
      1. ATX Form Factor; 30.5cm x 21cm
    • Παρατήρηση
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Οι όροι HDMI, HDMI High-Definition Multimedia Interface, Εμπορική διαμόρφωση (trade dress) HDMI και τα λογότυπα HDMI, είναι εμπορικά σήματα ή εμπορικά σήματα κατατεθέντα της εταιρείας HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
