Z590 VISION G (Rev. 1.0)
Intel® Z590 晶片組
特色重點
VISION
Powerful I/O
Connectivity
Performace
Ultra fast storage
Stay Cool
Key Features
VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity,
expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing
and 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine.
Go Further Without More Cables
GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and
power charging all
through one USB Type-C® cable will simplify the user experience than ever. With seamless multitasking
between your PC
and devices, it lets you work like a pro.
* Compatibility may vary according to system configuration and device specifications.

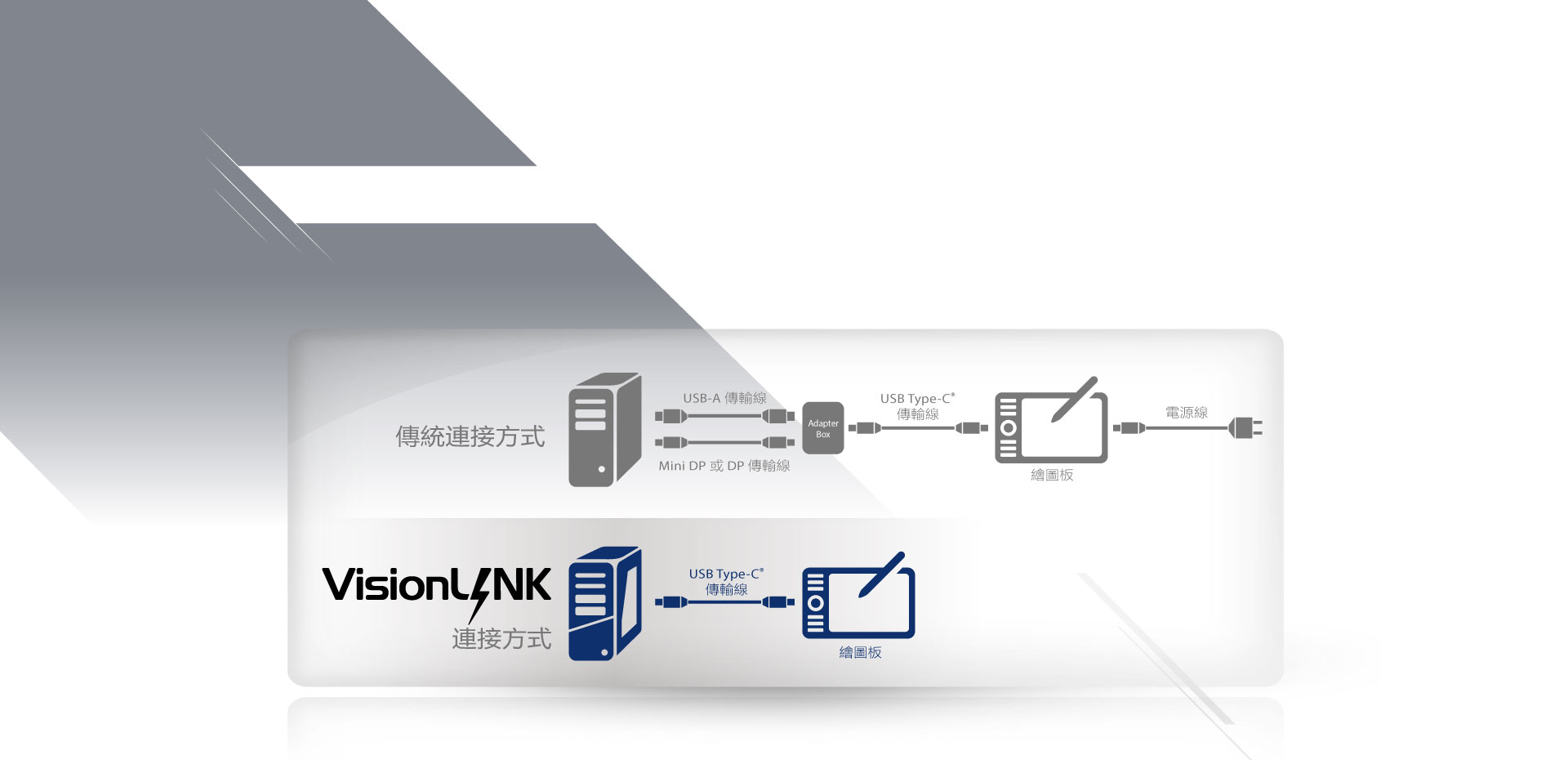

All at One Cable that Does It All
Did you experience your pen display connecting to the PC with lots of cables? GIGABYTE VisionLINK lets
you not only
without cable clutter, but also the benefit of data, video, and power charging the same time. One USB
Type-C® cable
connected, turn your workspace into neat and tidy.

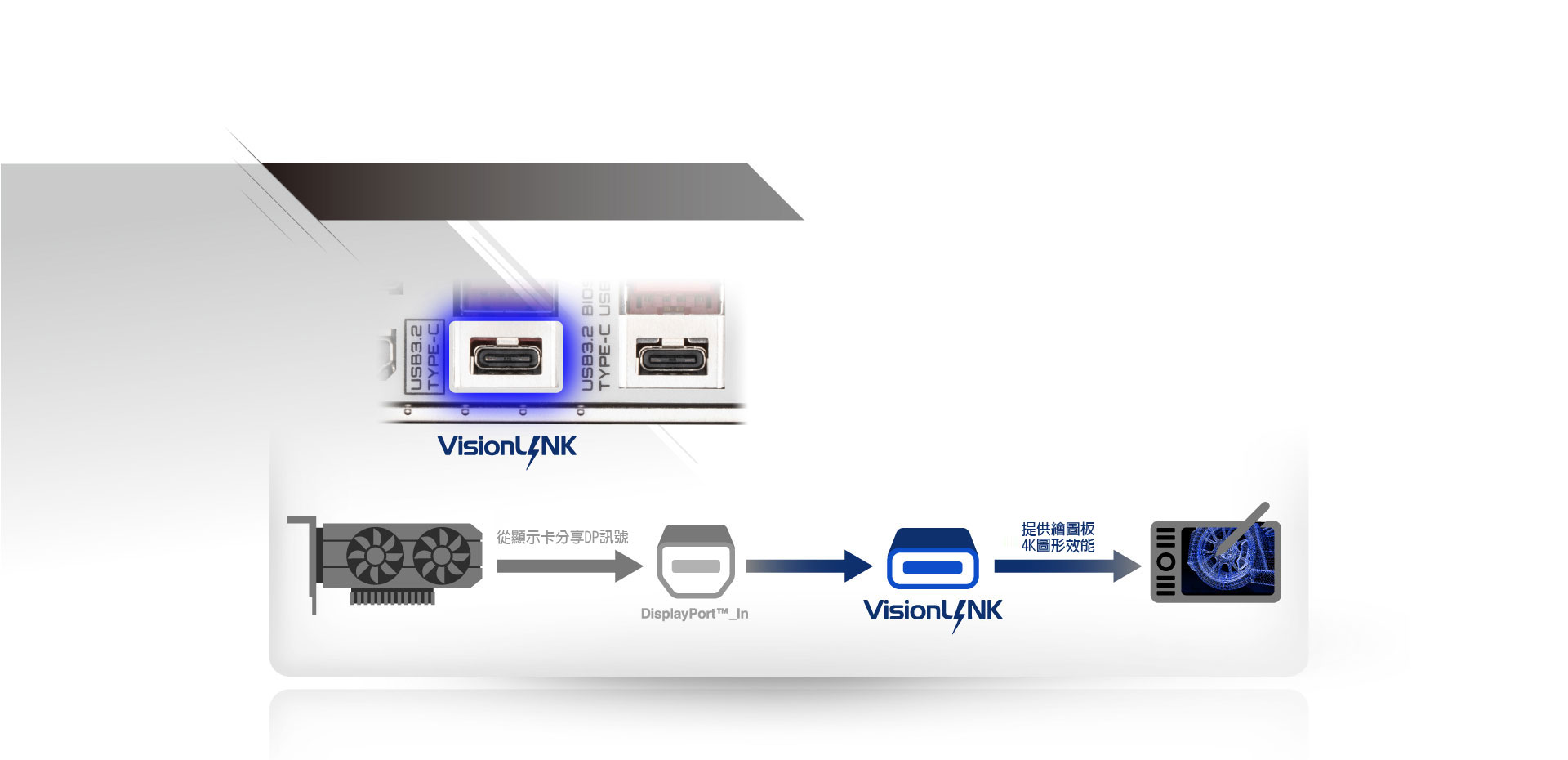

Add Graphic Power to You
Ever wondered if you can have your discrete, high-end graphics card to power your pen display? Through the DisplayPort™_In and VisionLINK connections, the performance of the discrete graphics card is delivered to the pen display. Bring your creation into incredible realism and performance.

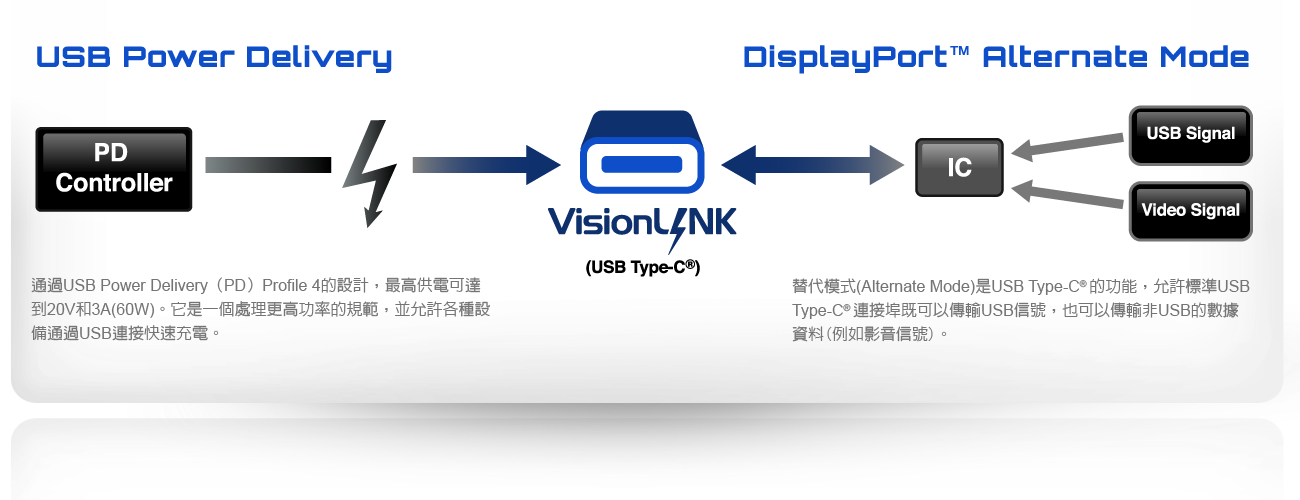

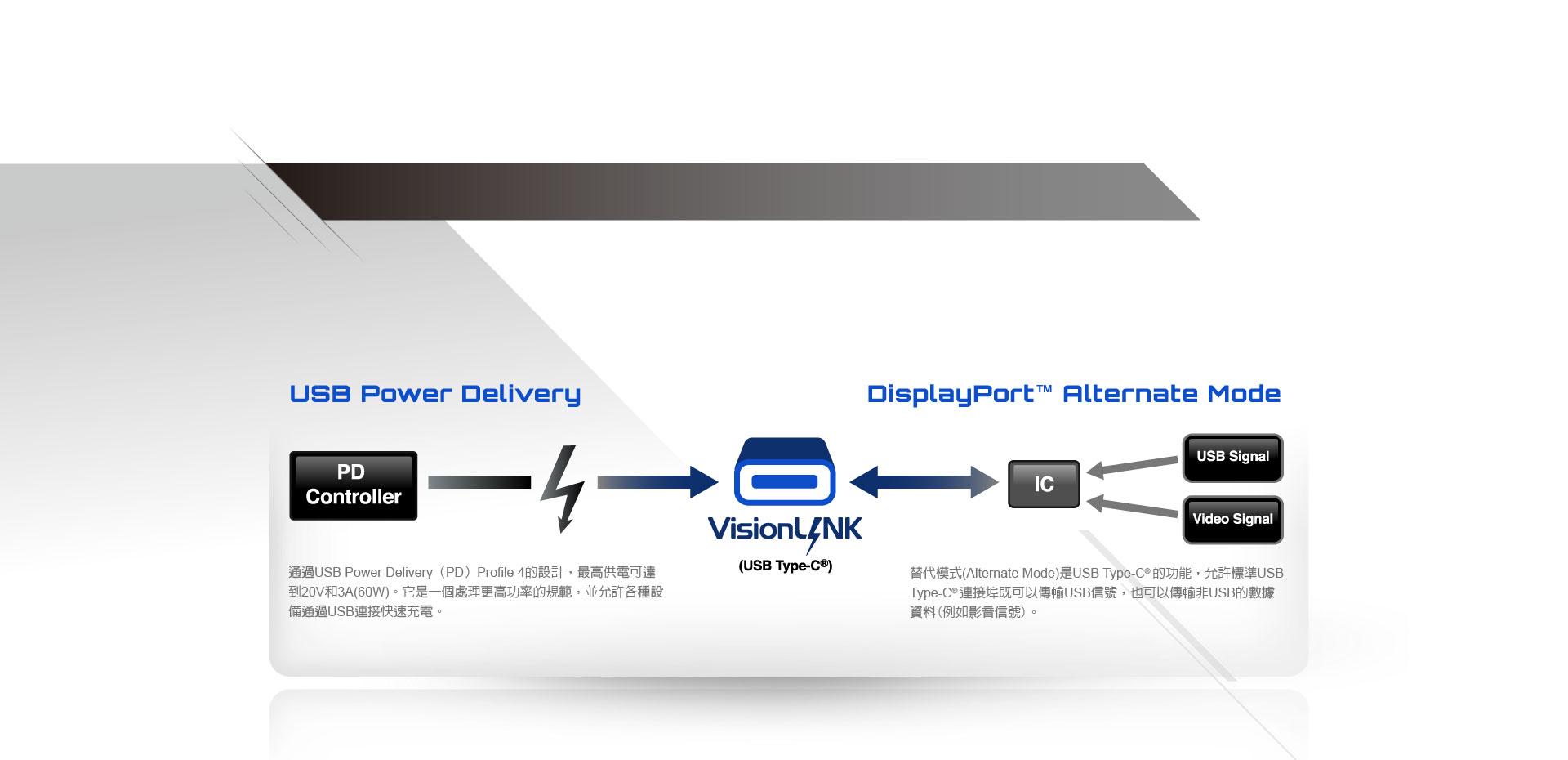

DisplayPort™ Alternate Mode with USB Power Delivery
VisionLINK equips with the unique capability of data delivery, the DisplayPort Alternate Mode for the video
signal, and 60W
Power Delivery design for your devices charging. It's a perfectly tailored connectivity for creators and
professional
artists.
Intel® 2.5GbE Connectivity
High-Bandwidth and Low-Latency access.
The adoption of Intel® 2.5G LAN provides up to 2.5GbE network connectivity, with at least 2X
faster transfer speeds
compared to general 1GbE networking. It gives an immediate boost to overall network performance and
improves the
bandwidth required at large file transfers, video editing, and performance workloads.
Intel® 2.5GbE Internet Networking
SuperSpeed USB 20Gbps
No Hassle Connection.
To feature the USB 3.2 Gen2x2 connectivity design, which is double performance than the current USB3.2
Gen2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals.
You can enjoy the
ultimate connection flexibility to access and store massive amounts of data rapidly.
Front-panel header with USB 3.2 Gen2X2 connectivity is ready for compatible devices.
Full PCIe 4.0 Design*
For most prosumers and content creators, high bandwidth storage and high performance graphics card or
accelerator cards
are critical for their projects. This is especially true for 3D rendering and creating high resolution
textures. To
support most cutting edge devices, this motherboard support variety of PCIe 4.0 devices, including
graphics card and M.2
SSD.
*Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.
1.PCIe 4.0 M.2 Slot
Supports new PCIe4.0* M.2 SSD
2.PCIe 4.0 Components
New generation components ensure full compliance with PCIe 4.0
3.PCIe 4.0 x16 Slot
Supports new PCIe 4.0 graphics card and accelerator card
PCIe Bandwidth*
Up to 31.58GB/s from new PCIe 4.0 x16 slot designs for the next generation add on cards need tremendous
bandwidth,
including the graphics card, deep learning accelerator card, and the video capture card.
SSD Read Speed
Content creators workflows constantly involve huge files, such as images, videos, and 3D models. Time
for editing,
saving, and transferring those huge files can be substantially reduced with the new generation PCIe 4.0
SSD.
Single 32GB Support
Bring your tasks without lag.
The maximum memory capacity on the Z590 motherboard is 128GB with the single slot supports up to 32GB.
You can
experience fast performance while working on complex design tasks, and getting real-time results.
Quad PCIe M.2
Faster Speed. More Space.
Z590 VISION G equips with up to 4 PCIe M.2 slots, delivering superior bandwidth and upgrading your
storage capacity for
accelerating your workflows. M.2 PCIe SSD gives you 7X faster data transferring experience compared to
2.5" SATA solid
state drives. Enable the creativity to flow from thought to draft faster and get responsive performance
without a wait.
NVMe PCIe x4 M.2
GIGABYTE M.2 solution offers considerably high storage performance and provides ideal storage with RAID
modes.
To feature with 3 full-speed PCIe 4.0* M.2 connectors to deliver the blazing-fast storage available.
Offering the best
configuration in terms of NVMe storage for creators who demand high capacity, fast storage options, and
complex 3D model rendering.
* Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.
* Once PCIe M.2 SSD is populated in any of the middle two M.2 connectors, the PCIe 4.0 x16 slot operates at up to x8 bandwidth.
* Once PCIe M.2 SSD is populated in any of the middle two M.2 connectors, the PCIe 4.0 x16 slot operates at up to x8 bandwidth.

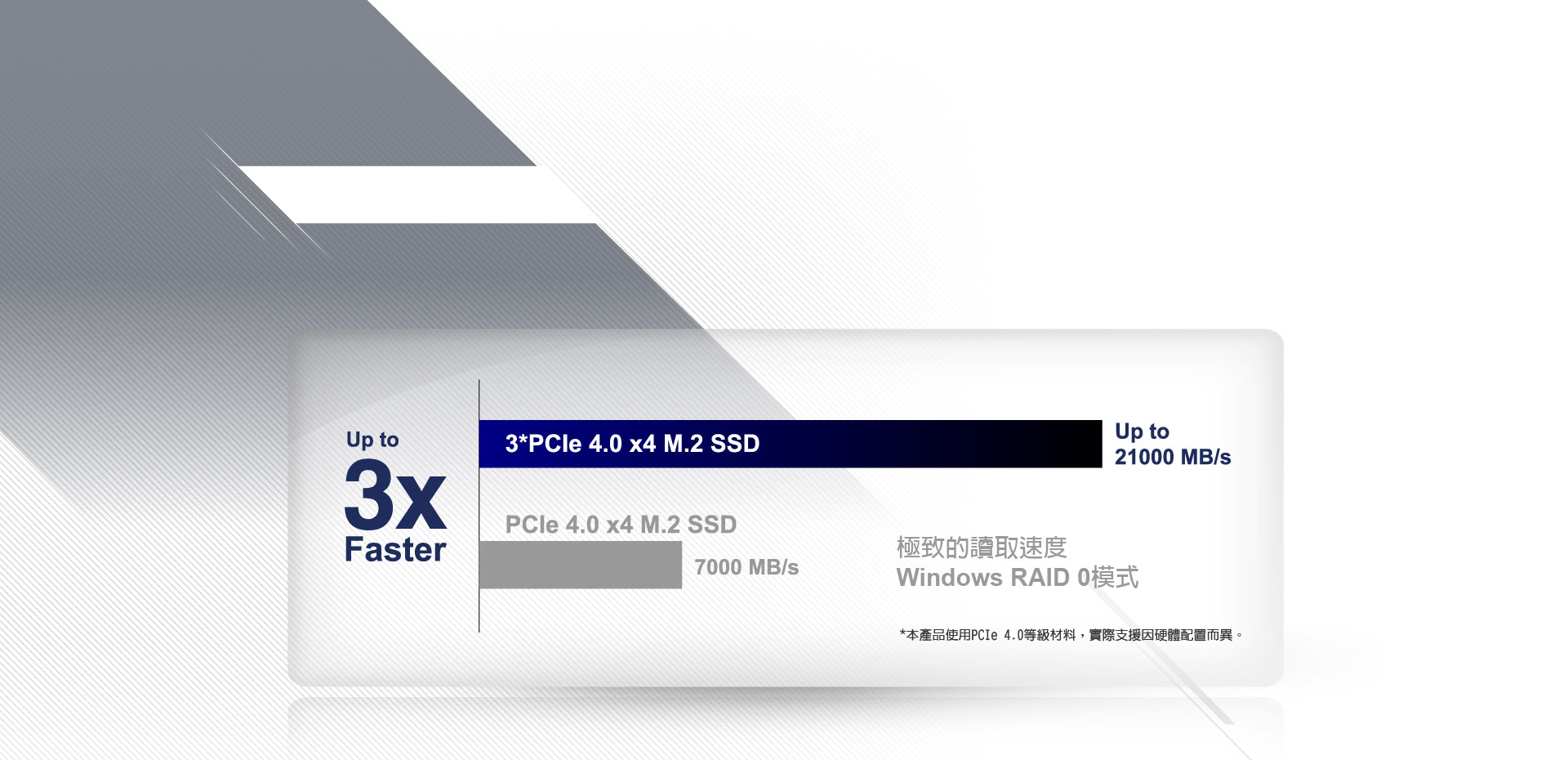

Creates Exclusive Storage Performance
Exclusive triple NVMe PCIe 4.0* x4 M.2 design offers ultra-fast storage performance in RAID 0 support.
You can easily
handle the most data-intensive tasks by this configuration.
Cooling Technology
An effective cooling solution is essential for a heavy design workload to get away with slowdown,
crashes, and
unexpected shutdown. To reach a perfect balance between style and performance by implementing the
Fins-Array heatsink
and Direct Touch Heatpipe. Not only increasing the heat dissipation surface to ensure the stability
during creative work
but with a stylish aesthetic.
M.2 Thermal Guard
GIGABYTE provides an Ultra-Efficient thermal solution for the latest PCIe 4.0 M.2 SSD drives. The unique
M.2 Thermal
Guard prevents all the M.2 SSD from thermal throttling and dissipates heat before it becomes an issue.
Smart Fan 6
Numerous hybrid fan headers and temperature sensors are planted on the motherboard to monitor in real
time and configure
fan mode to fit different workloads via Smart Fan 6. Creators are allowed to set the trigger point to
activate the fan
and its corresponding speed. The fan completely stops when performing light tasks to avoid noise.
Intel® Z590 Creators Motherboard with unique VisionLINK I/O design, Effective thermal solution, Intel® 2.5GbE LAN, PCIe
4.0 x16 slot, Quad NVMe PCIe x4 M.2 Connectors, Front USB 3.2 Gen 2x2 Type-C® Header
- Powerful performance support 11th and 10th Gen Intel® Core™ series processors
- Dual Channel Non-ECC Unbuffered DDR4 memory, 4 DIMMs
- Go further without more cables by VisionLINK I/O design
- High-bandwidth and low-latency network support by Intel® 2.5GbE LAN
- Comprehensive connectivity by front and rear USB3.2 Gen 2x2 Type-C® connectors
- PCIe 4.0 hardware design and maximum memory capacity up to 128GB for empowering real-time workload
- 4 Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards
- Effective cooling solution design for the better thermal dissipation
- Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
- Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
