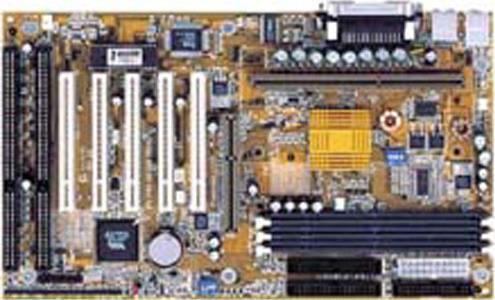

GA-6VXE

DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Intel® Pentium II and Celeron™ Processor
    2. Slot 1 for future Processor support
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
    5. Clock multipliers 3.0/3.5 ....../ 9.5
  • Chipset
    1. VIA Apollo Pro AGPset
    2. iTE 8671 I/Oset
  • Memoria
    1. 8MB to 768MB DRAM size
    2. 3 * 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256MB SDRAM DIMM Modules
    4. Supports ECC Type DIMM Module (72bits)
  • Puertos de Expansión
    1. 1 * AGP Slot Supports 66/133MHz Speeds
    2. 5 * PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 2 * ISA Slot
  • Controlador de E/S
    1. 2 * Ultra DMA33 Bus Master IDE ports on board
    2. 1 * FDD, 1 * COM, 1 * LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 * USB ports on board
    4. IrDA TX / RX Header (optional)
  • BIOS
    1. 2 Mbit Flash RAM
    2. Award BIOS with Enhanced ACPI Features for PC98/Win98 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1 ~ #4, SCSI, LS120, ZIP & CD-ROM bootable]
  • Diseño
    1. ATX, 4 layer PCB (30.6cm * 18.0cm)
  • Controlador
    1. VIA Ultra DMA/33 Bus Master IDE Driver
    2. VIA AGP GART V*D & Power Management Controller Driver
    3. VIA Patch 95 Driver
    4. VIA Windows 98 IRQ Routing Driver
    5. TREND MICRO PC-Cillin 98 Anti-Virus Utility (scan only)
  • Otras Características
    1. Include Wake-On-LAN Header (WOL)
    2. Supports Internal / External Modem Ring on
    3. 3 Fan Power & Speed Detection Connectors
    4. Includes SB-LINK™ connectors
    5. Poly fuse for keyboard overcurrent protection
  • Energía
    1. ATX power connector
    2. Power-on by switch, Keyboard, PS/2 Mouse, LAN, RTC, Modem & Switch
    3. Power-off by Windows 98 shut down & switch
    4. stop CPU Fan during entering suspend mode
    5. 3 Level ACPI LED Support
  • Procesador
    1. Intel® Pentium II and Celeron™ Processor
    2. Slot 1 for future Processor support
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
    5. Clock multipliers 3.0/3.5 ....../ 9.5
  • Chipset
    1. VIA Apollo Pro AGPset
    2. iTE 8671 I/Oset
  • Memoria
    1. 8MB to 768MB DRAM size
    2. 3 * 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256MB SDRAM DIMM Modules
    4. Supports ECC Type DIMM Module (72bits)
  • Puertos de Expansión
    1. 1 * AGP Slot Supports 66/133MHz Speeds
    2. 5 * PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 2 * ISA Slot
  • Controlador de E/S
    1. 2 * Ultra DMA33 Bus Master IDE ports on board
    2. 1 * FDD, 1 * COM, 1 * LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 * USB ports on board
    4. IrDA TX / RX Header (optional)
  • BIOS
    1. 2 Mbit Flash RAM
    2. Award BIOS with Enhanced ACPI Features for PC98/Win98 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1 ~ #4, SCSI, LS120, ZIP & CD-ROM bootable]
  • Diseño
    1. ATX, 4 layer PCB (30.6cm * 18.0cm)
  • Controlador
    1. VIA Ultra DMA/33 Bus Master IDE Driver
    2. VIA AGP GART V*D & Power Management Controller Driver
    3. VIA Patch 95 Driver
    4. VIA Windows 98 IRQ Routing Driver
    5. TREND MICRO PC-Cillin 98 Anti-Virus Utility (scan only)
  • Otras Características
    1. Include Wake-On-LAN Header (WOL)
    2. Supports Internal / External Modem Ring on
    3. 3 Fan Power & Speed Detection Connectors
    4. Includes SB-LINK™ connectors
    5. Poly fuse for keyboard overcurrent protection
  • Energía
    1. ATX power connector
    2. Power-on by switch, Keyboard, PS/2 Mouse, LAN, RTC, Modem & Switch
    3. Power-off by Windows 98 shut down & switch
    4. stop CPU Fan during entering suspend mode
    5. 3 Level ACPI LED Support

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
