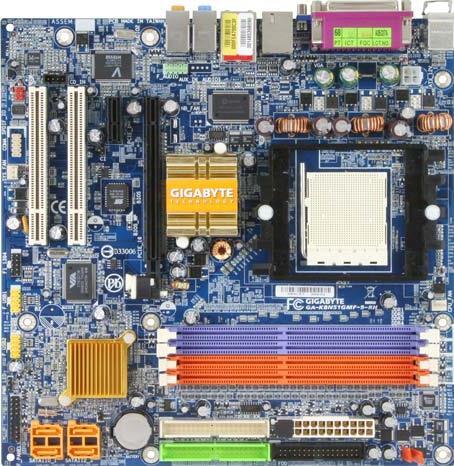

GA-K8N51GMF-9-RH (Rev. 1.0)

DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Socket 939 supports AMD Athlon64 X2/ 64 FX/ 64
  • Chipset
    1. NVIDIA® GeForce™ 6100 and NVIDIA nForce™ 430
    2. Super I/O: Winbond W83627 chip
    3. Integrated peripherals
      1. VIA VT 6307 IEEE1394 controller
      2. CICADA VSC 8201 Gigabit LAN PHY chip
      3. Realtek ALC880 Audio Codec
  • Memoria
    1. Type: Dual channel DDR400/ 333/ 266 -184pin
    2. Max capacity: Up to 4GB by 4 DIMM slots
  • Puertos de Expansión
    1. 1 x PCI-Express X16 slot
    2. 1 x PCI-Express X1 slot
    3. 2 x PCI slots (PCI 2.3 compliant)
  • Conectores Internos de E/S
    1. 4 X Serial ATA 3Gb/s connectors
    2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
    5. 1 x IEEE 1394 connector (supports 1 port)
    6. 2 x cooling fan pin headers
    7. S/P DIF in/out connector
    8. CD in connector
    9. 1 x Com port connector
  • Conectores del Panel Trasero
    1. PS/2 Keyboard/ Mouse
    2. 1 x VGA port
    3. 1 x LPT port
    4. 4 x USB 2.0/1.1 ports
    5. 1 x RJ45 port
    6. 1 x IEEE1394 port
    7. Audio (4 x Line-out/ 1 x Line-in/ 1 x MIC) connectors
  • Monitorización H/W
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, CPU voltage, and fan speed
  • BIOS
    1. 4M bit flash ROM, Award BIOS
  • Diseño
    1. Micro-ATX form factor
    2. 24.4 x 24.4 cm
  • Otras Características
    1. NVIDIA RAID 0,1,0+1,5
    2. Norton Internet Security
    3. Download Center
    4. Xpress Installation
    5. Xpress Recovery
  • Energía
    1. ATX power connector and ATX 12V connector
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.
  • Procesador
    1. Socket 939 supports AMD Athlon64 X2/ 64 FX/ 64
  • Chipset
    1. NVIDIA® GeForce™ 6100 and NVIDIA nForce™ 430
    2. Super I/O: Winbond W83627 chip
    3. Integrated peripherals
      1. VIA VT 6307 IEEE1394 controller
      2. CICADA VSC 8201 Gigabit LAN PHY chip
      3. Realtek ALC880 Audio Codec
  • Memoria
    1. Type: Dual channel DDR400/ 333/ 266 -184pin
    2. Max capacity: Up to 4GB by 4 DIMM slots
  • Puertos de Expansión
    1. 1 x PCI-Express X16 slot
    2. 1 x PCI-Express X1 slot
    3. 2 x PCI slots (PCI 2.3 compliant)
  • Conectores Internos de E/S
    1. 4 X Serial ATA 3Gb/s connectors
    2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
    5. 1 x IEEE 1394 connector (supports 1 port)
    6. 2 x cooling fan pin headers
    7. S/P DIF in/out connector
    8. CD in connector
    9. 1 x Com port connector
  • Conectores del Panel Trasero
    1. PS/2 Keyboard/ Mouse
    2. 1 x VGA port
    3. 1 x LPT port
    4. 4 x USB 2.0/1.1 ports
    5. 1 x RJ45 port
    6. 1 x IEEE1394 port
    7. Audio (4 x Line-out/ 1 x Line-in/ 1 x MIC) connectors
  • Monitorización H/W
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, CPU voltage, and fan speed
  • BIOS
    1. 4M bit flash ROM, Award BIOS
  • Diseño
    1. Micro-ATX form factor
    2. 24.4 x 24.4 cm
  • Otras Características
    1. NVIDIA RAID 0,1,0+1,5
    2. Norton Internet Security
    3. Download Center
    4. Xpress Installation
    5. Xpress Recovery
  • Energía
    1. ATX power connector and ATX 12V connector
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
