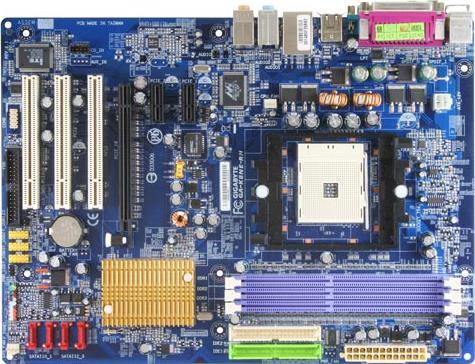

GA-K8NE-RH (Rev. 2.x)

DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Supports AMD Athlon™64/ Sempron™ Socket 754 processor
  • Chipset
    1. NVIDIA nForce4 4X MCP (Media and Communications Processor)
    2. Super I/O: ITE IT8712 chip
    3. Integrated peripherals
      1. Marvell 88E1111 Gigabit LAN PHY chip
      2. Realtek ALC850 AC'97 Audio Codec
  • Memoria
    1. Type: DDR400/333/266 -184pin
    2. Max capacity: Up to 3GB by 3 DIMM slots
  • Puertos de Expansión
    1. 1 x PCI-Express X 16 slot, supports PCI-Express interface Graphics card only
    2. 2 x PCI-Express X 1 slots
    3. 3 x PCI slots (PCI 2.3 compliant)
  • Conectores Internos de E/S
    1. 4 x Serial ATA connector
    2. 2 x UDMA ATA 133/100/66 IDE connectors
    3. 1 x FDD connector
    4. 3 x USB 2.0/1.1 pin-headers (supports 6 connectors via cable)
    5. 2 x cooling fan pin-headers
    6. CD-In connector and Front Audio pin-header
  • Conectores del Panel Trasero
    1. PS/2 Keyboard/ Mouse port
    2. 1 x LPT port
    3. 1 x S/PDIF In port
    4. 1 x S/PDIF Out port
    5. 1 x COM port
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ45 LAN port
    8. Audio connectors (4 x Line-out/ 1 x Line-in/ 1 x MIC)
  • Monitorización H/W
    1. System voltage detection
    2. CPU temperature detection
    3. CPU / System fan speed detection
    4. CPU warning temperature
    5. CPU fan failure warning
  • BIOS
    1. 2M bit flash ROM
  • Software Incluido
    1. Norton Internet Security
      1. Norton Anti-Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Diseño
    1. ATX form factor
    2. 30.5 x 22.4 cm
  • Otras Características
    1. Support NVIDIA Firewall
    2. Xpress™ Installation
    3. Xpress™ Recovery
    4. Download Center
    5. Q-Flash™
    6. @BIOS™
  • Energía
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.
  • Procesador
    1. Supports AMD Athlon™64/ Sempron™ Socket 754 processor
  • Chipset
    1. NVIDIA nForce4 4X MCP (Media and Communications Processor)
    2. Super I/O: ITE IT8712 chip
    3. Integrated peripherals
      1. Marvell 88E1111 Gigabit LAN PHY chip
      2. Realtek ALC850 AC'97 Audio Codec
  • Memoria
    1. Type: DDR400/333/266 -184pin
    2. Max capacity: Up to 3GB by 3 DIMM slots
  • Puertos de Expansión
    1. 1 x PCI-Express X 16 slot, supports PCI-Express interface Graphics card only
    2. 2 x PCI-Express X 1 slots
    3. 3 x PCI slots (PCI 2.3 compliant)
  • Conectores Internos de E/S
    1. 4 x Serial ATA connector
    2. 2 x UDMA ATA 133/100/66 IDE connectors
    3. 1 x FDD connector
    4. 3 x USB 2.0/1.1 pin-headers (supports 6 connectors via cable)
    5. 2 x cooling fan pin-headers
    6. CD-In connector and Front Audio pin-header
  • Conectores del Panel Trasero
    1. PS/2 Keyboard/ Mouse port
    2. 1 x LPT port
    3. 1 x S/PDIF In port
    4. 1 x S/PDIF Out port
    5. 1 x COM port
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ45 LAN port
    8. Audio connectors (4 x Line-out/ 1 x Line-in/ 1 x MIC)
  • Monitorización H/W
    1. System voltage detection
    2. CPU temperature detection
    3. CPU / System fan speed detection
    4. CPU warning temperature
    5. CPU fan failure warning
  • BIOS
    1. 2M bit flash ROM
  • Software Incluido
    1. Norton Internet Security
      1. Norton Anti-Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Diseño
    1. ATX form factor
    2. 30.5 x 22.4 cm
  • Otras Características
    1. Support NVIDIA Firewall
    2. Xpress™ Installation
    3. Xpress™ Recovery
    4. Download Center
    5. Q-Flash™
    6. @BIOS™
  • Energía
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
