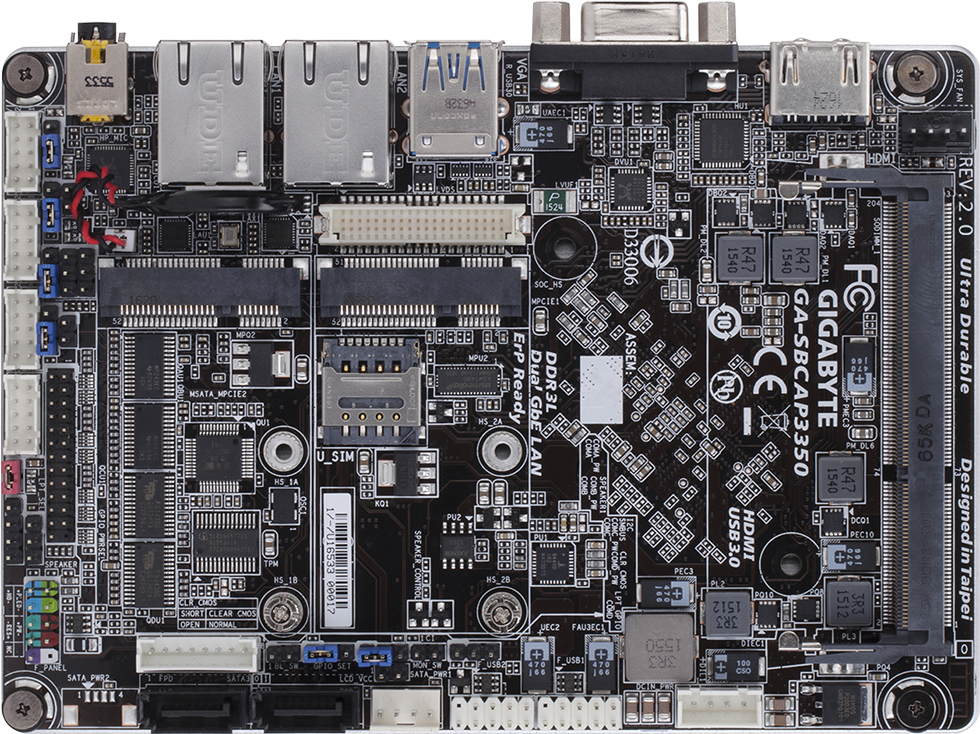

GA-SBCAP3350 (Rev. 2.0)

Intel® Celeron™ N3350
DescripciónEspecificaciónSoporte y DescargasWhere to Buy

Especificación

  • Procesador
    1. Built in with an Intel® Dual-Core Celeron® N3350 F1 stepping SoC (2.4 GHz)
      * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
    2. 2 MB Cache
  • Memoria
    1. 1 x DDR3L SO-DIMM sockets supporting up to 8 GB of system memory
    2. Support for DDR3L 1866/1600/1333 MHz memory module
    (Please refer "Memory Support List" for more information.)
  • Gráficos Integrados
  • Integrated in the SoC:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz
    3. 1 x LVDS, supporting a maximum resolution of 1920x1200@60 Hz
    Maximum shared memory of 512 MB
  • Audio
    1. Realtek® ALC255 codec
    2. High Definition Audio
    3. 2-channel
  • LAN
    1. 2 x Realtek®GbE LAN chips (10/100/1000 Mbit)
  • Puertos de Expansión
    1. 1 x half size Mini PCIe slot (MPCIE1)
      (The Mini PCIe slot conforms to PCI Express 2.0 standard.)
    2. 1 x SIM Socket
  • Interfaz de Almacenamiento
  • Integrated in the SoC:
    1. 2 x SATA 6Gb/s connectors
    2. 1 x MSATA connector (MSATA_MPCIE2)
      * The MSATA_MPCIE2 shares bandwidth with the SATA3 1 connector. The SATA3 1 becomes unavailable when a device is installed in the MSATA_MPCIE2 connector.
  • USB
  • Integrated in the SoC:
    1. 2 x USB 3.1 Gen 1 ports on the back panel
    2. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Conectores Internos de E/S
    1. 1 x DC-In power connector
    2. 1 x system fan header
    3. 2 x SATA 6Gb/s connectors
    4. 2 x SATA power connectors
    5. 1 x front panel header
    6. 1 x battery cable header
    7. 2 x USB 2.0/1.1 headers
    8. 4 x serial port headers
    9. 4 x serial port power select jumpers
    10. 1 x speaker header
    11. 1 x GPIO power selection jumper
    12. 1 x GPIO status configuration jumper
    13. 1 x LVDS header
    14. 1 x LVDS drive voltage jumper
    15. 1 x flat panel display header
    16. 1 x flat panel display switch header
    17. 1 x backlight switch header
    18. 1 x volume control header
    19. 1 x buzzer header
    20. 1 x LPT/GPIO header
    21. 1 x LPT configuration jumper
    22. 1 x I2C
    23. 1 x SMBUS
    24. 1 x BIOS Select jumper
    25. 1 x Clear CMOS jumper
    26. 1 x chassis intrusion header
  • Conectores del Panel Trasero
    1. 1 x HDMI port
    2. 1 x D-Sub port
    3. 2 x USB 3.1 Gen 1 ports
    4. 2 x RJ-45 ports
    5. 1 x audio jack (headphone and microphone combo jack)
  • Controlador de E/S
    1. iTE® I/O Controller Chip
  • Monitorización H/W
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Características Únicas
    1. Support for Xpress Install
    2. Support for @BIOS
    3. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications
  • Software Incluido
    1. Norton® Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Windows 10 64-bit
  • Diseño
    1. SBC Form Factor; 14.6cm x 10.2cm
  • Operating Temperature
  • 0°C to +60°C
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Built in with an Intel® Dual-Core Celeron® N3350 F1 stepping SoC (2.4 GHz)
        * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
      2. 2 MB Cache
    • Memoria
      1. 1 x DDR3L SO-DIMM sockets supporting up to 8 GB of system memory
      2. Support for DDR3L 1866/1600/1333 MHz memory module
      (Please refer "Memory Support List" for more information.)
    • Gráficos Integrados
    • Integrated in the SoC:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz
      3. 1 x LVDS, supporting a maximum resolution of 1920x1200@60 Hz
      Maximum shared memory of 512 MB
    • Audio
      1. Realtek® ALC255 codec
      2. High Definition Audio
      3. 2-channel
    • LAN
      1. 2 x Realtek®GbE LAN chips (10/100/1000 Mbit)
    • Puertos de Expansión
      1. 1 x half size Mini PCIe slot (MPCIE1)
        (The Mini PCIe slot conforms to PCI Express 2.0 standard.)
      2. 1 x SIM Socket
    • Interfaz de Almacenamiento
    • Integrated in the SoC:
      1. 2 x SATA 6Gb/s connectors
      2. 1 x MSATA connector (MSATA_MPCIE2)
        * The MSATA_MPCIE2 shares bandwidth with the SATA3 1 connector. The SATA3 1 becomes unavailable when a device is installed in the MSATA_MPCIE2 connector.
    • USB
    • Integrated in the SoC:
      1. 2 x USB 3.1 Gen 1 ports on the back panel
      2. 4 x USB 2.0/1.1 ports available through the internal USB headers
    • Conectores Internos de E/S
      1. 1 x DC-In power connector
      2. 1 x system fan header
      3. 2 x SATA 6Gb/s connectors
      4. 2 x SATA power connectors
      5. 1 x front panel header
      6. 1 x battery cable header
      7. 2 x USB 2.0/1.1 headers
      8. 4 x serial port headers
      9. 4 x serial port power select jumpers
      10. 1 x speaker header
      11. 1 x GPIO power selection jumper
      12. 1 x GPIO status configuration jumper
      13. 1 x LVDS header
      14. 1 x LVDS drive voltage jumper
      15. 1 x flat panel display header
      16. 1 x flat panel display switch header
      17. 1 x backlight switch header
      18. 1 x volume control header
      19. 1 x buzzer header
      20. 1 x LPT/GPIO header
      21. 1 x LPT configuration jumper
      22. 1 x I2C
      23. 1 x SMBUS
      24. 1 x BIOS Select jumper
      25. 1 x Clear CMOS jumper
      26. 1 x chassis intrusion header
    • Conectores del Panel Trasero
      1. 1 x HDMI port
      2. 1 x D-Sub port
      3. 2 x USB 3.1 Gen 1 ports
      4. 2 x RJ-45 ports
      5. 1 x audio jack (headphone and microphone combo jack)
    • Controlador de E/S
      1. iTE® I/O Controller Chip
    • Monitorización H/W
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Características Únicas
      1. Support for Xpress Install
      2. Support for @BIOS
      3. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications
    • Software Incluido
      1. Norton® Internet Security (OEM version)
    • Sistema Operativo
      1. Support for Windows 10 64-bit
    • Diseño
      1. SBC Form Factor; 14.6cm x 10.2cm
    • Operating Temperature
    • 0°C to +60°C
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
