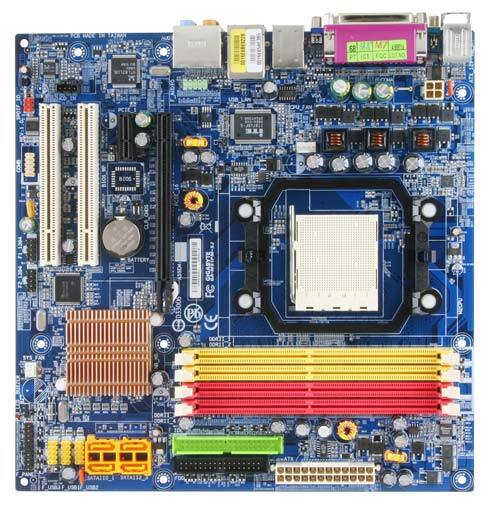

GA-M61PM-S2 (rev. 1.0)
NVIDIA® GeForce 6100 / nForce 430
- Supports AMD Athlon/ Sempron processors
- Supports high performance Dual-Channel DDR2 800 memory
- Integrated NVIDIA® CineFX 3.0 Graphics Engine
- Features NVIDIA® SATA 3Gb/s with RAID function
- Optimized Gigabit LAN and IEEE1394 connection
- Enhances security with NVIDIA® TCP/IP Acceleration technology
- Features 8 channel High Definition Audio
- RoHS compliant motherboard for green computing
IntroductionGIGABYTE Technology latest S series motherboards for AMD socket AM2 platform, featuring with two innovative features- Safe and Smart Technologies. The new S series motherboards GA-M61PM-S2; supporting AMD new generation AM2 processor with dual channel DDR2 800MHz high frequency memories, providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion's choice for AMD Socket AM2 platform!
AMD Phenom™ Processors SupportThe AMD AM2+ Phenom™ processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform.
(Note) If you install AMD AM3/ AM2+ CPU on AM2 motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3/ AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
SmartThe Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
SafeSafe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
AMD Live ReadyAMD Live Ready Requirement compliant.
AMD Athlon™ 64 FX/ 64 X2 / 64 ProcessorThe leading-edge performance and unparallel technology of the 8th generation AMD Athlon™64 Socket AM2 series processor has built its strength on the well-known AMD64 framework which consisted of 64-bit computing platform, HyperTransport Technology, and integrated memory controller. The latest Athlon™64 X2 dual-core processor brings the power and multitasking performance on the desktop platform and ensures superior performance on mission critical business applications.
NVIDIA® GeForce 6100 / nForce 430The brand new NVIDIA® GeForce 6100 / NVIDIA® nForce 430GPU features CineFX™ 3.0 Engine. This unique combination of 6100 GPU creates a single motherboard featuring a world-class DX9, Shader Model 3.0 GPU for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
PCI Express InterfaceRevolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
Superior Dual channel DDR2 800 ArchitectureExperience the advanced technology of DDR2 800 memory by overclocking, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* Please refer "Memory Support List" for memory support information
SATA 3Gb/s & RAIDThis platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA® RAID allows multi-disk designs to be set up as RAID 0, 1, based on users' priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility.
IEEE1394 interfaceThis motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video (A/V) appliances, and storage peripherals.
High Definition AudioExperience home theater-quality sound with your PC using High Definition Audio for enhanced 6/ 8-channel* audio, improved voice and communication input, and multi-streaming capability.
* To use 8-channel HD audio, please use the system case with HD audio front panel featured and see manual for detail configuration.
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
