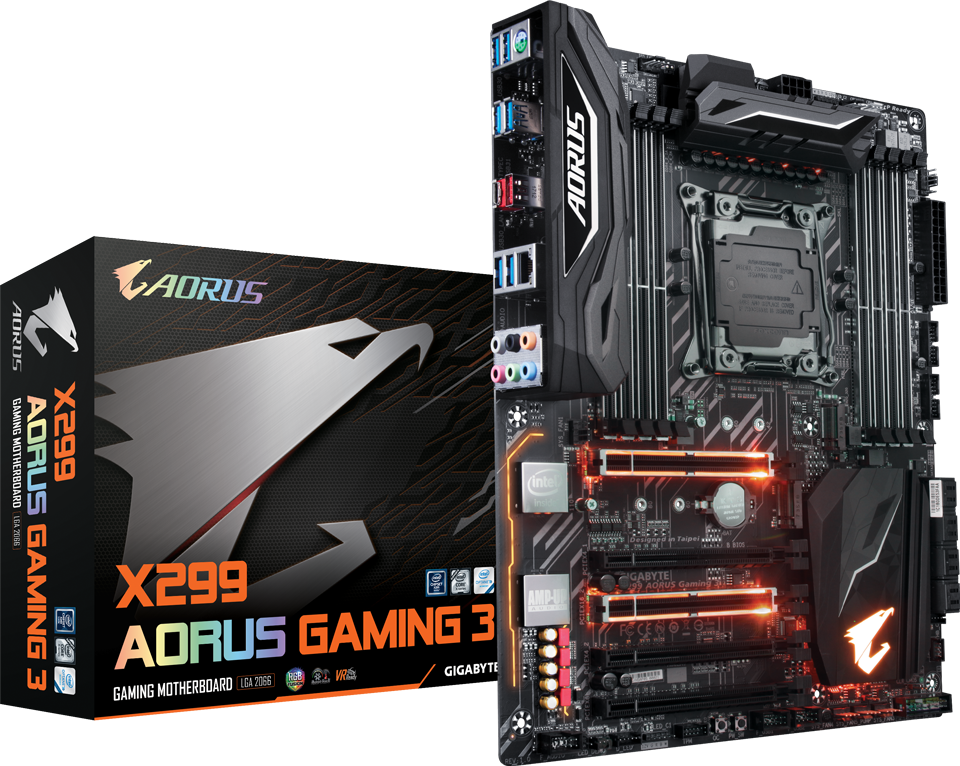

X299 AORUS Gaming 3 (Rev. 1.0)

Intel® X299 Chipset
Key FeaturesTulajdonságokTámogatásHírek/DíjakLearn MoreWhere to Buy

Tulajdonságok

  • Processzor
    1. Support for Intel® Core™ X series processors in the LGA2066 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Lapkakészlet
    1. Intel® X299 Express Chipset
  • Memória
    1. 8 x DDR4 DIMM sockets supporting up to 256 GB of system memory.
      * Supported when using a 44-lane or 28-lane CPU (6-core or above).
    2. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
      * Supported when using a 16-lane CPU (4-core).
    3. 4 channel memory architecture.
      * Supported when using a 44-lane or 28-lane CPU (6-core or above).
    4. Dual channel memory architecture.
      Supported when using a 16-lane CPU (4-core).
    5. Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
    6. Support for non-ECC Un-buffered DIMM memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Audio
    1. Realtek® ALC1220 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • Hálózati vezérlő
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Bővítőhelyek
    1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    3. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
      * Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.

    When using a 44 lane CPU (10-core or above):
      1-Way 2-Way 3-Way
    PCIEX16_1 ∨(x16) ∨(x16) ∨(x16)
    PCIEX16_2 ╳ ∨(x16) ∨(x16)
    PCIEX8 ╳ ╳ ∨(x8)
    ∨: Installed, ╳: Not Installed.

    When using a 28 lane CPU (6-core or above):
      1-Way 2-Way
    PCIEX16_1 ∨(x16) ∨(x16)
    PCIEX16_2 ╳ ∨(x8)
    PCIEX8 ╳ ╳
    ∨: Installed, ╳: Not Installed.

    When using a 16 lane CPU (4-core):
      1-Way 2-Way*
    PCIEX16_1 ∨(x8) ∨(x8)
    PCIEX16_2 ╳ ∨(x4)
    PCIEX8 ╳ ╳
    ∨: Installed, ╳: Not Installed.
    * Supports the CrossFire technology only.

  • Több VGA kártyás rendszerek
    1. Support for NVIDIA® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA® SLI™ technologies
    2. Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies
  • Tárolótechnológia
  • Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
    2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
    3. 8 x SATA 6Gb/s connectors
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
    Intel® VROC ready
  • USB
  • Chipset+ASMedia® USB 3.1 Gen 2 Controller:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
    2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
    Chipset:
    1. 10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
    2. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Belső csatlakozók
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 4 x system fan headers
    6. 1 x system fan/water cooling pump header
    7. 1 x 3 Amp fan/water cooling pump header
    8. 1 x digital LED strip extension cable header
    9. 2 x RGB (RGBW) LED strip extension cable headers
    10. 2 x M.2 Socket 3 connectors
    11. 8 x SATA 6Gb/s connectors
    12. 1 x Intel® VROC Upgrade Key header
    13. 1 x front panel header
    14. 1 x front panel audio header
    15. 1 x S/PDIF Out header
    16. 2 x USB 3.1 Gen 1 headers
    17. 2 x USB 2.0/1.1 headers
    18. 1 x Thunderbolt™ add-in card connector
    19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    20. 1 x power button
    21. 1 x OC button
    22. 2 x temperature sensor headers
    23. 1 x Clear CMOS jumper
  • Hátlapi csatlakozók
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
    3. 1 x USB 3.1 Gen 2 Type-A port (red)
    4. 6 x USB 3.1 Gen 1 ports
    5. 1 x RJ-45 port
    6. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
  • I/O vezérlő lapka
    1. iTE® I/O Controller Chip
  • Hardver monitorozás
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Egyéb tulajdonságok
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      BIOS Setup
      Color Temperature
      Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Hozzáadott szoftverek
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operációs rendszer
    1. Support for Windows 10 64-bit
  • Méretszabvány
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Megjegyzések
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
