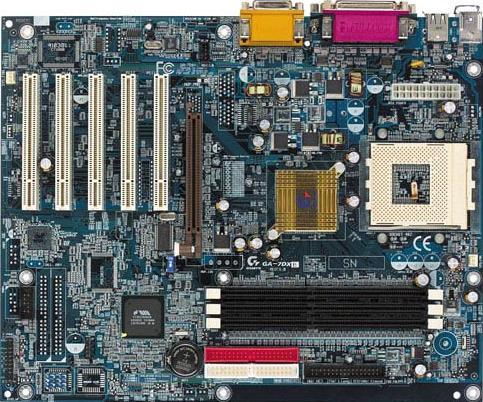

GA-7DXE (Rev. 2.x / 3.x)

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket A for AMD Athlon™/AMD Athlon™ XP/Duron™ 200/266MHz FSB processors
    2. Supports 500MHz ~ 2000+ and faster
    3. 1.5V/1.525V/1.55V...1.85V(15 scales / 0.025V per scale) Auto-detects CPU Voltage
  • Chipset
    1. AMD 761™ north bridge and VIA 686B south bridge
    2. VIA 686 audio
  • Memory
    1. Supports up to 3GB DDR SDRAM
    2. 3 DIMMs of 184-pin DDR sockets
    3. Supports either PC1600/DDR200 or PC2100/ DDR266 DDR memory
    4. Supports 72bits ECC type DRAM integrity mode
  • Expansion Slots
    1. 1 x AGP 4X
    2. 5 x PCI slots support 33MHz and PCI 2.2 compliant
  • I/O Controller
    1. 2 x UDMA ATA 66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    4. 2 x USB 1.1 ports on board, 2 x USB 1.1 by cable
    5. IrDA TX / RX header
  • H/W Monitoring
    1. 2 cooling fan connectors
    2. System health status detect and report by BIOS
    3. H/W detect and report Power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
    2. AC recovery ON/OFF control
    3. Auto-detect and report system health status
    4. Supports @BIOS™
  • Form Factor
    1. ATX form factor, 4 layers PCB (30.5 x 24.4 cm)
  • Driver
    1. AMD service pack utility
    2. VIA 686 audio driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports USB KB Wake up from S3
    3. Provides 2 fan power connectors
    4. Poly fuse for keyboard over-current protection
    5. Supports EasyTune III™ and Q-Flash
  • Power
    1. ATX power connector
    2. Power-off by Windows 95/98/Me/2000/XP/NT shut down and Switch
  • CPU
    1. Socket A for AMD Athlon™/AMD Athlon™ XP/Duron™ 200/266MHz FSB processors
    2. Supports 500MHz ~ 2000+ and faster
    3. 1.5V/1.525V/1.55V...1.85V(15 scales / 0.025V per scale) Auto-detects CPU Voltage
  • Chipset
    1. AMD 761™ north bridge and VIA 686B south bridge
    2. VIA 686 audio
  • Memory
    1. Supports up to 3GB DDR SDRAM
    2. 3 DIMMs of 184-pin DDR sockets
    3. Supports either PC1600/DDR200 or PC2100/ DDR266 DDR memory
    4. Supports 72bits ECC type DRAM integrity mode
  • Expansion Slots
    1. 1 x AGP 4X
    2. 5 x PCI slots support 33MHz and PCI 2.2 compliant
  • I/O Controller
    1. 2 x UDMA ATA 66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    4. 2 x USB 1.1 ports on board, 2 x USB 1.1 by cable
    5. IrDA TX / RX header
  • H/W Monitoring
    1. 2 cooling fan connectors
    2. System health status detect and report by BIOS
    3. H/W detect and report Power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
    2. AC recovery ON/OFF control
    3. Auto-detect and report system health status
    4. Supports @BIOS™
  • Form Factor
    1. ATX form factor, 4 layers PCB (30.5 x 24.4 cm)
  • Driver
    1. AMD service pack utility
    2. VIA 686 audio driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports USB KB Wake up from S3
    3. Provides 2 fan power connectors
    4. Poly fuse for keyboard over-current protection
    5. Supports EasyTune III™ and Q-Flash
  • Power
    1. ATX power connector
    2. Power-off by Windows 95/98/Me/2000/XP/NT shut down and Switch

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
