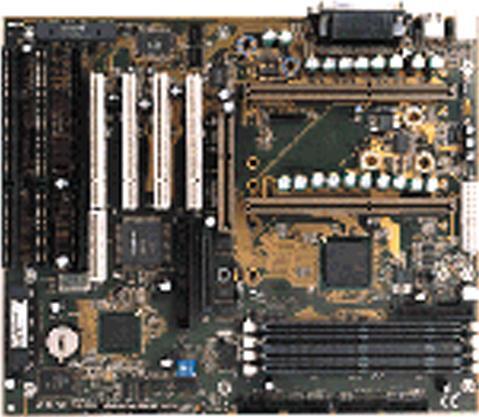

GA-686DLX
スペック
- 対応 CPU
- Supports Dual Intel Pentium ® II Processor 233MHz-333MHz.
- Slot 1 Socket for Future Expansion.
- チップセット
- Intel 82440 LX AGPset
- Winbound 83977 I/O (1Mb/S)
- Adaptec 7880B Ultra Wide SCSI
- メモリー
- 4 x 168-pin 3.3v DIMM sockets support
- Supports 8/16/32/64/128/256 MB DIMM Module
- Supports EDO RAM, SDRAM (Support ECC, 72 bit)
- Supports 8MB to 1GB DRAM Size
- CPU Built-in 256KB/512KB L2 cache
- 拡張スロット
- 4 x PCI 32-bit slots, PCI 2.1 compliant
- 3 x ISA 16-bit slots
- 1x AGP (1x & 2x Mode,66/133MHz) slot
- I/O コントローラー
- 1x Ultra Wide SCSI & 1x Ultra SCSI port
- 1x floppy port (360KB-2.88MB)
- 2x serial ports (16550 high-speed)
- 1x parallel port (EPP/ECP)
- PS/2 Keyboard
- PS/2 Mouse
- 2x USB Ports On-board
- ハードウェア・モニター
- Temperature Sensor Under Processor Heatsink
- Speaker Alarm When CPU Overheats or CPU Fan Failure
- Auto Speed Down When CPU Overheats (OS Independent & Driverless)
- System Health Status Detect & Report by BIOS, LDCM ® & SIV
- Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
- BIOS
- 2 Mbit (256KB) FLASH RAM
- Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
- LS120, ZIP, ATAPI CD_ROM Bootable
- Auto-detect & Report System Health Status
- Supports Suspend to Hard Disk Function
- フォームファクター
- ATX Form Factor, 4 layer PCB
- ATX Connector on Board
- Double Deck ATX Back Panel
- ドライバー
- Intel LDCM ® Utility
- SIV Utility
- Triones Ultra DMA/33 Bus Master IDE Driver ( & Intel)
- パワー
- ATX Power Connector
- Power On by LAN, RTC Alarm Modem Ring & Soft-Power Switch
- Power Off by Windows 95 Shut down & Soft-Power Switch
- AC Recovery On/Off Control
- Supports Fan Stop During Suspend Mode
- Supports 3 Level ACPI LED
