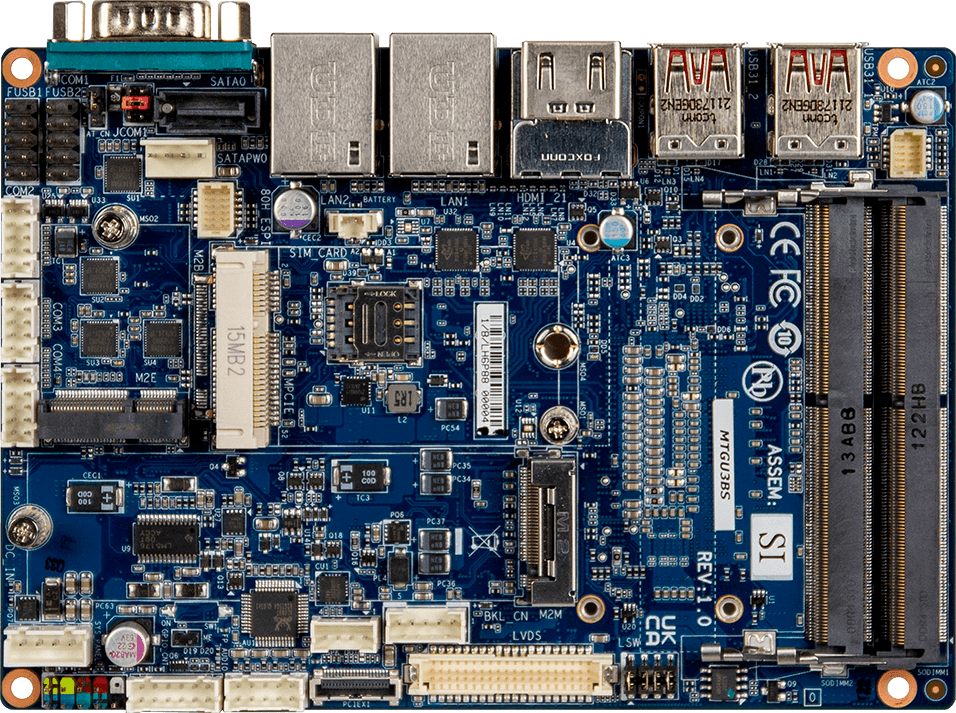

QBiP-1115G4EB
Intel® Core™ i3-1115G4E Processor
3.5" SubCompact Board with 11th Generation Intel® Core™ i3-1115G4E Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Gen 2x1, 4 x USB 2.0
3.5" SBC
Intel® Core™ i3-1115G4E Processor
Dual Channel DDR4, 2 x SO-DIMMs
2 x GbE LAN Ports
1 x SATA 6Gb/s Port
Ultra-Fast M.2 with PCIe Gen3 x2 interface
2 x HDMI, LVDS ports for multiple display
1 x COM Port (RS-232/422/485 & RI/5V/12V)
3 x COM Ports (RS-232/422/485)
4 x USB 3.2 Gen 2x1
(For more product information, please contact us at sales@gigaipc.com)
(For more product information, please contact us at sales@gigaipc.com)
- Overview
- Specifications
- Related Resources
Specifications
Form Factor
3.5" SBC
146W x 101.7D(mm)
146W x 101.7D(mm)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel® Core™ i3-1115G4E Processor
10nm SuperFin, 2 cores, 4 threads, up to 3.90 GHz
TDP 28W
6 MB Smart Cache
10nm SuperFin, 2 cores, 4 threads, up to 3.90 GHz
TDP 28W
6 MB Smart Cache
Socket
1 x FCBGA1449
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Support Dual Channel DDR4 3200 MHz memory modules
LAN
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Video
Integrated Graphics Processor -Intel® UHD Graphics For 11th Gen Intel Processor :
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(3 independent display outputs)
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio Codec
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
1 x PCIe x1 (Board to Wire connector, PCIe Gen3 x1)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
1 x PCIe x1 (Board to Wire connector, PCIe Gen3 x1)
Internal I/O
1 x 4-pin box power connector (DC in +9V~48VDC)
1 x SATA Power header
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
3 x COM headers (RS-232/422/485)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header
1 x SPI header
1 x SATA Power header
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
3 x COM headers (RS-232/422/485)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header
1 x SPI header
Rear I/O
1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
TPM
1 x TPM header
OS Compatibility
Windows 10/11 (x64)
Packaging Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Including:
SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)
Packing Capacity: 10pcs
Including:
SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)
Ordering Information
9MTGU3BSMR-SI (Box Packing)
Storage
1 x SATA 6Gb/s Port (SATA RAID 0/1)
