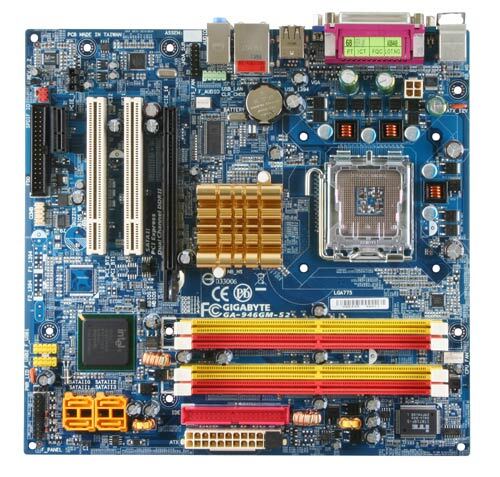

GA-946GM-S2 (rev. 2.0)
Intel 946GZ + ICH7 chipset
- Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo processor
- Dual Channel DDR2 667 for advanced system performance
- Integrated Intel® Graphics Media Accelerator 3000
- Features SATA 3Gb/s interface
- Features Gigabit LAN connection
- Integrate Intel High Definition Audio
Quad Core OptimizedGA-946-DS3 supports latest Intel Core2 Extreme Quad Core processors, manufactured using a 65nm silicon technology, Intel's latest high performance CPU delivers the most energy-efficient performance available today. Based on Intel's Micro Architecture, the Intel Core 2 Extreme Quad Core processors with 4 cores and two shared L2 caches provide the best capability-per-watt solutions and are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments. This cutting-edge processor offers significant performance boosts and provides an overall more energy efficient platform.
SmartThe Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
SafeSafe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
Intel® 946GZ Express ChipsetThe Intel 946GZ Express Chipset delivers outstanding graphic performance with Intel Graphics Media Accelerator 3000 graphics core, and enhances system performance through high-bandwidth interfaces such as dual-channel DDR2 memory, 800 MHz system bus, PCI Express x16 graphics port and PCI Express x1 I/O ports, Serial ATA 3.0 Gb/s and Hi-Speed USB 2.0 connectivity.
Intel® Next-Generation Core™2 Duo ProcessorLeading the silicon process technology from 90nm to 65nm, the Intel new-generation CPU transistors deliver more energy-efficient performance than anyone. Based on the Intel's next generation Micro Architecture, the Intel Core ™2 Duo processor with two cores and shared L2 caches provides the best capability-per-watt solutions. The cutting-edge processor the significant performance boosts and better energy efficient platform
PCI Express InterfaceRevolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
Superior Dual channel DDR2 667 ArchitectureGet a jump in memory performance with the advanced technology of DDR2! Through GIGABTYE engineering, we had overcome the chipset limitations of DDR2 667/533 delivering superior performance for the most demanding applications.
Gigabit LAN connectivityThe Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents
SATA 3Gb/s storage interfaceSATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations.
8 channel Intel® High Definition Audio (by cable)Intel® High Definition Audio enables premium digital sound in the PC for an immersive surround sound experience. In addition, Intel® HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two separate rooms.
RoHS compliantAs a member of the global community to look after the environment, Gigabyte complies with the European Union's Restriction of use of certain Hazardous Substances (RoHS) directive which limits the use of lead, mercury, cadmium and other hazardous substances in electronic products. From components and material selection to production processes, make up of accessories, packaging/color boxes etc; GIGABYTE has carefully examined and designed this product to be 100% RoHS compliant. GIGABYTE will continue to develop RoHS compliant PC components and commit valuable resources to promoting and advancing RoHS directive goals and objectives.
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
