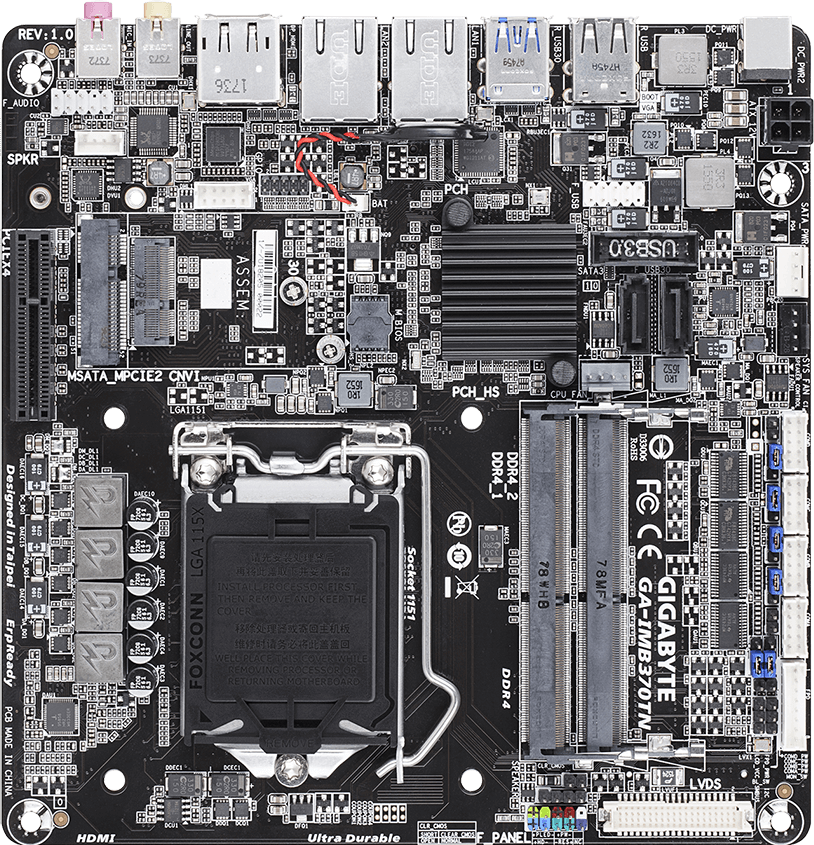

GA-IMB370TN (Rev. 1.0)

Intel®Q370 Chipset
OverviewSpecificationsSupportWhere to Buy

Specifications

  • CPU
    1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® Q370 Express Chipset
  • Memory
    1. 2 x DDR4 SO-DIMM socket supporting up to 32 GB of system memory
    2. Support for DDR4 2133/2400/2666 MHz memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
    Maximum shared memory of 1 GB
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1-channel
  • LAN
    1. 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
  • TPM
    1. Infineon chip, supporting TPM 2.0
    Note: This feature is optional due to different regional policy.
  • Expansion Slots
    1. 1 x PCI Express x4 slot
      (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
    2. 1 x M.2 Socket 1 connector for an Intel® CNVi or a PCIe wireless module (CNVI)
    3. 1 x full size Mini PCIe connector (MSATA_PCIE)
      * The MSATA_PCIE connector can also be used as an MSATA connector.
      (The Mini PCIe connector conforms to PCI Express 2.0 standard.)
  • Storage Interface
  • Chipset:
    1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x2/x4 SSD support)
    2. 2 x SATA 6Gb/s connectors
    3. Support for RAID 0 and RAID 1
    Intel® Optane™ Memory Ready
  • USB
  • Chipset:
    1. 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 4-pin ATX 12V power connectors
    2. 1 x AT/ATX mode switch jumper
    3. 1 x CPU fan header
    4. 1 x system fan headers
    5. 1 x M.2 Socket 3 connector on the back of the motherboard
    6. 2 x SATA 6Gb/s connectors
    7. 1 x MSATA connector
    8. 1 x USIM connector on the back of the motherboard
    9. 1 x SATA power connector
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x battery power cable connector
    13. 1 x USB 3.1 Gen 1 header
    14. 1 x USB 2.0/1.1 header
    15. 4 x serial port headers
    16. 4 x serial port power select jumpers
    17. 1 x D-Sub port header
    18. 1 x GPIO header
    19. 1 x LVDS header
    20. 1 x LVDS drive voltage jumper (LCD_VCC)
    21. 1 x flat panel display header (FPD)
    22. 1 x flat panel display power select jumper (FPD_PWR)
    23. 1 x flat panel display switch header (MON_SW)
    24. 1 x backlight switch header (BL_SW)
    25. 1 x speaker header (SPKR)
    26. 1 x buzzer header (SPEAKER)
    27. 1 x Clear CMOS jumper
    28. 1 x chassis intrusion header
    29. 1 x I2C
    30. 1 x SMBUS
  • Back Panel Connectors
    1. 1 x DC-In power connector
    2. 1 x HDMI port
    3. 1 x DisplayPort
    4. 2 x USB 3.0 port
    5. 2 x USB 2.0/1.1 ports
    6. 2 x RJ-45 ports
    7. 2 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan fail warning
    4. CPU/System fan speed detection
    5. CPU/System overheating warning
    6. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
  • Bundled Software
    1. Norton® Internet Security (OEM version)
  • Operating System
    1. Support for Windows 10 64-bit
    2. cFosSpeed
  • Form Factor
    1. Thin Mini-ITX; 17.0cm x 17.0cm
  • Operating Temperature
  • 0°C to +60°C
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® Q370 Express Chipset
    • Memory
      1. 2 x DDR4 SO-DIMM socket supporting up to 32 GB of system memory
      2. Support for DDR4 2133/2400/2666 MHz memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
    • Integrated Graphics Processor-Intel® HD Graphics support
      1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
        * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
      Maximum shared memory of 1 GB
    • Audio
      1. Realtek® ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1-channel
    • LAN
      1. 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
    • TPM
      1. Infineon chip, supporting TPM 2.0
      Note: This feature is optional due to different regional policy.
    • Expansion Slots
      1. 1 x PCI Express x4 slot
        (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
      2. 1 x M.2 Socket 1 connector for an Intel® CNVi or a PCIe wireless module (CNVI)
      3. 1 x full size Mini PCIe connector (MSATA_PCIE)
        * The MSATA_PCIE connector can also be used as an MSATA connector.
        (The Mini PCIe connector conforms to PCI Express 2.0 standard.)
    • Storage Interface
    • Chipset:
      1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x2/x4 SSD support)
      2. 2 x SATA 6Gb/s connectors
      3. Support for RAID 0 and RAID 1
      Intel® Optane™ Memory Ready
    • USB
    • Chipset:
      1. 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    • Internal I/O Connectors
      1. 1 x 4-pin ATX 12V power connectors
      2. 1 x AT/ATX mode switch jumper
      3. 1 x CPU fan header
      4. 1 x system fan headers
      5. 1 x M.2 Socket 3 connector on the back of the motherboard
      6. 2 x SATA 6Gb/s connectors
      7. 1 x MSATA connector
      8. 1 x USIM connector on the back of the motherboard
      9. 1 x SATA power connector
      10. 1 x front panel header
      11. 1 x front panel audio header
      12. 1 x battery power cable connector
      13. 1 x USB 3.1 Gen 1 header
      14. 1 x USB 2.0/1.1 header
      15. 4 x serial port headers
      16. 4 x serial port power select jumpers
      17. 1 x D-Sub port header
      18. 1 x GPIO header
      19. 1 x LVDS header
      20. 1 x LVDS drive voltage jumper (LCD_VCC)
      21. 1 x flat panel display header (FPD)
      22. 1 x flat panel display power select jumper (FPD_PWR)
      23. 1 x flat panel display switch header (MON_SW)
      24. 1 x backlight switch header (BL_SW)
      25. 1 x speaker header (SPKR)
      26. 1 x buzzer header (SPEAKER)
      27. 1 x Clear CMOS jumper
      28. 1 x chassis intrusion header
      29. 1 x I2C
      30. 1 x SMBUS
    • Back Panel Connectors
      1. 1 x DC-In power connector
      2. 1 x HDMI port
      3. 1 x DisplayPort
      4. 2 x USB 3.0 port
      5. 2 x USB 2.0/1.1 ports
      6. 2 x RJ-45 ports
      7. 2 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan fail warning
      4. CPU/System fan speed detection
      5. CPU/System overheating warning
      6. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for @BIOS
      2. Support for Q-Flash
    • Bundled Software
      1. Norton® Internet Security (OEM version)
    • Operating System
      1. Support for Windows 10 64-bit
      2. cFosSpeed
    • Form Factor
      1. Thin Mini-ITX; 17.0cm x 17.0cm
    • Operating Temperature
    • 0°C to +60°C
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
