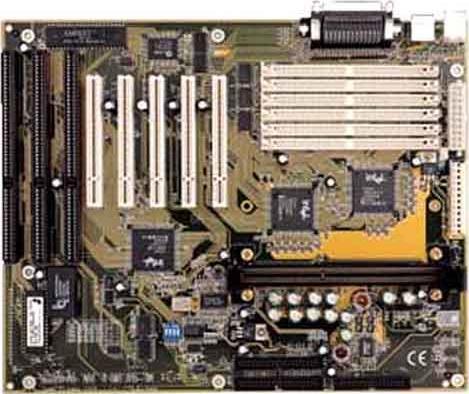

GA-686KX

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Intel Pentium® II Processor 233-300MHz
  • Chipset
    1. Intel 82440 FX PCIset
    2. UMC 8669 I/O chip(1Mb/S)
  • Memory
    1. 6 x 72-pin SIMM sockets support 8MB to 768MB DRAM Size (ECC/Parity DRAM support)
    2. Use 4/8/16/32/64/128MB SIMM module DRAM with Fast Page Mode or EDO RAM
  • Expansion Slots
    1. 4 x PCI 32-bit slots
    2. 2 x ISA 16-bit slots
    3. 1x ISA/PCI share slot
  • I/O Controller
    1. PS/2 Keyboard, and Mouse
    2. 1x floppy port (360KB-2.88MB)
    3. 2x serial ports (16550 high-speed)
    4. 1x parallel port (EPP/ECP)
    5. 2x USB ports Ready
  • BIOS
    1. 128KB FLASH ROM
    2. Award PCI BIOS with green, plug and play features support
  • Form Factor
    1. ATX Form Factor, double deck 4 layer PCB
  • Other Features
    1. ACOPS system. Supports Win95 power shut down. Build-in alarm in the event of CPU overheating and CPU fan failure.
  • CPU
    1. Intel Pentium® II Processor 233-300MHz
  • Chipset
    1. Intel 82440 FX PCIset
    2. UMC 8669 I/O chip(1Mb/S)
  • Memory
    1. 6 x 72-pin SIMM sockets support 8MB to 768MB DRAM Size (ECC/Parity DRAM support)
    2. Use 4/8/16/32/64/128MB SIMM module DRAM with Fast Page Mode or EDO RAM
  • Expansion Slots
    1. 4 x PCI 32-bit slots
    2. 2 x ISA 16-bit slots
    3. 1x ISA/PCI share slot
  • I/O Controller
    1. PS/2 Keyboard, and Mouse
    2. 1x floppy port (360KB-2.88MB)
    3. 2x serial ports (16550 high-speed)
    4. 1x parallel port (EPP/ECP)
    5. 2x USB ports Ready
  • BIOS
    1. 128KB FLASH ROM
    2. Award PCI BIOS with green, plug and play features support
  • Form Factor
    1. ATX Form Factor, double deck 4 layer PCB
  • Other Features
    1. ACOPS system. Supports Win95 power shut down. Build-in alarm in the event of CPU overheating and CPU fan failure.
