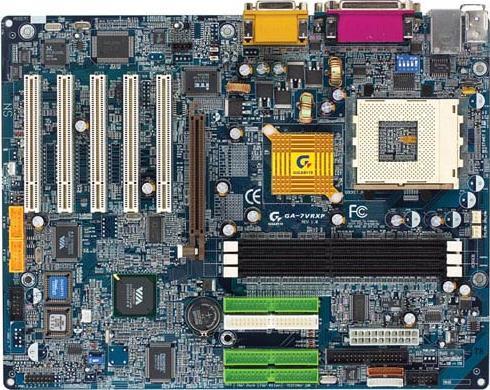

GA-7VRXP (Rev. 2.x)

Rev. 2.xRev. 3.xRev. 1.1
SpecificaţiiSuportNoutăţi/PremiiWhere to Buy

Specificaţii

  • CPU
    1. Socket A for AMD Athlon ™XP / Athlon ™/ Duron ™processor
  • Chipset
    1. Southbridge : VIA 8233A(CE)
    2. VIA V-Link architecture (266MB/s)
    3. VIA VT6202 USB 2.0 controller
    4. Super I/O : ITE IT8705F
    5. Smart I/O : Winbond Smart@IO
    6. Promise PDC20276 ATA 133 RAID controller
    7. Raeltek 8100BL Ethernet 10/100Mb LAN controller
    8. Creative CT5880 PCI sound controller
    9. Sigmatel AC97 Codec chip
    10. Dual BIOS
  • Memorie
    1. Type : DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
    2. Max capacity : Up to 3GB by 3 DIMM slots(DDR266/200)
  • Sloturi de expansiune
    1. 1 x AGP universal slot (4X/2X-AGP 2.0 compliant)
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Conectori panou spate
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 1.1 ports
    3. 2 x COM ports
    4. 1 x RJ45 LAN port
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 1 x joystick
    7. 1 x LPT
  • Controller I/O
    1. 1 x FDD port
    2. 4 x UDMA ATA133/100/66 Bus Master IDE ports
    3. 1 x 2ports USB 1.1 connector (by cable with rear USB bracket)
    4. 2 x 2ports USB 2.0 connector (by cable with rear USB bracket)
    5. Memory Stick / Security Digital / Smart Card Reader connectors
    6. 2 x cooling fan pin header
  • Monitorizare H/W
    1. System health status auto-detect and report by BIOS
    2. H/W detect & report power-in voltage, CPU voltage, and Fan Speed
  • BIOS
    1. Dual AMI BIOS, 2 x 2M bit flash ROM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    4. AC recovery ON/OFF control
  • Form Factor
    1. ATX
    2. Dimension : ( 23.5 x 30.4 cm )
  • Driver
    1. VIA 4 in 1 service pack utility
    2. Promise RAID controller driver ( includes pure ATA133 driver )
    3. Realtek LAN driver
    4. Creative sound driver
    5. VIA USB 2.0 driver
    6. Winbond Smart IO driver
    7. Free software
  • Alte caracteristici
    1. Suspend-To-RAM (STR)
    2. Supports USB KB/MS Wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Alimentare
    1. ATX power connector
    2. Power-off by Windows 95/98/Me/2000/NT/XP shut down and Switch
  • CPU
    1. Socket A for AMD Athlon ™XP / Athlon ™/ Duron ™processor
  • Chipset
    1. Southbridge : VIA 8233A(CE)
    2. VIA V-Link architecture (266MB/s)
    3. VIA VT6202 USB 2.0 controller
    4. Super I/O : ITE IT8705F
    5. Smart I/O : Winbond Smart@IO
    6. Promise PDC20276 ATA 133 RAID controller
    7. Raeltek 8100BL Ethernet 10/100Mb LAN controller
    8. Creative CT5880 PCI sound controller
    9. Sigmatel AC97 Codec chip
    10. Dual BIOS
  • Memorie
    1. Type : DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
    2. Max capacity : Up to 3GB by 3 DIMM slots(DDR266/200)
  • Sloturi de expansiune
    1. 1 x AGP universal slot (4X/2X-AGP 2.0 compliant)
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Conectori panou spate
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 1.1 ports
    3. 2 x COM ports
    4. 1 x RJ45 LAN port
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 1 x joystick
    7. 1 x LPT
  • Controller I/O
    1. 1 x FDD port
    2. 4 x UDMA ATA133/100/66 Bus Master IDE ports
    3. 1 x 2ports USB 1.1 connector (by cable with rear USB bracket)
    4. 2 x 2ports USB 2.0 connector (by cable with rear USB bracket)
    5. Memory Stick / Security Digital / Smart Card Reader connectors
    6. 2 x cooling fan pin header
  • Monitorizare H/W
    1. System health status auto-detect and report by BIOS
    2. H/W detect & report power-in voltage, CPU voltage, and Fan Speed
  • BIOS
    1. Dual AMI BIOS, 2 x 2M bit flash ROM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    4. AC recovery ON/OFF control
  • Form Factor
    1. ATX
    2. Dimension : ( 23.5 x 30.4 cm )
  • Driver
    1. VIA 4 in 1 service pack utility
    2. Promise RAID controller driver ( includes pure ATA133 driver )
    3. Realtek LAN driver
    4. Creative sound driver
    5. VIA USB 2.0 driver
    6. Winbond Smart IO driver
    7. Free software
  • Alte caracteristici
    1. Suspend-To-RAM (STR)
    2. Supports USB KB/MS Wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Alimentare
    1. ATX power connector
    2. Power-off by Windows 95/98/Me/2000/NT/XP shut down and Switch
