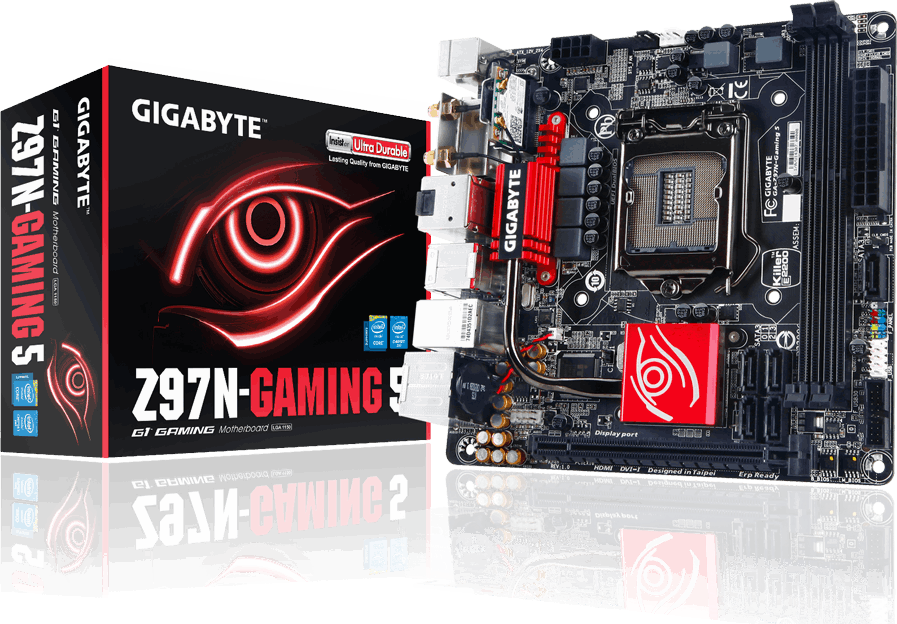

GA-Z97N-Gaming 5 (Rev. 1.0)

Intel® Z97 Chipset
DescriereSpecificaţiiSuportNoutăţi/PremiiAflați mai multWhere to Buy

Specificaţii

  • CPU
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® Z97 Express Chipset
  • Memorie
    1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Grafică onboard
  • Integrated Graphics Processor - Intel® HD Graphics support:
    1. 1 x DVI-I port, supporting a maximum resolution of 1920x1200@60Hz
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
      * Support for HDMI 1.4a version.
    3. 1 x DisplayPort, supporting a maximum resolution of 4096x2160@24Hz or 3840x2160@60Hz
      * Support for DisplayPort 1.2 version.
    4. Support for up to 3 displays at the same time
    5. Maximum shared memory of 512MB
  • Audio
    1. Realtek® ALC1150 codec
    2. Support for Sound Blaster X-Fi MB3
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out
  • LAN
    1. Qualcomm® Atheros Killer E2201 LAN chip (10/100/1000 Mbit)
  • Wireless Communication module
    1. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    2. Bluetooth 4.0, 3.0+HS, 2.1+EDR
    3. Support for 11ac wireless standard and up to 867 Mbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Sloturi de expansiune
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 1 x mini-PCI Express slot for the wireless communication module
  • Interfață de stocare
  • Chipset:
    1. 5 x SATA 6Gb/s connectors (SATA3 0/1/2/3/4)
    2. 1 x eSATA 6Gb/s connector on the back panel
      * Actual transfer rate is dependent on the device being connected.
    3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • USB
  • Chipset:
    1. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Conectori interni I/O
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 5 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x USB 3.0/2.0 header
    9. 1 x USB 2.0/1.1 header
    10. 1 x S/PDIF Out header
    11. 1 x Clear CMOS jumper
    12. 1 x chassis intrusion header
  • Conectori panou spate
    1. 1 x PS/2 keyboard/mouse port
    2. 2 x SMA antenna connectors (2T2R)
    3. 1 x DVI-I port
    4. 1 x optical S/PDIF Out connector
    5. 1 x HDMI port
    6. 1 x DisplayPort
    7. 1 x eSATA 6Gb/s connector
    8. 4 x USB 3.0/2.0 ports
    9. 2 x USB 2.0/1.1 ports
    10. 1 x RJ-45 port
    11. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
  • Controller I/O
    1. iTE® I/O Controller Chip
  • Monitorizare H/W
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Caracteristici unice
    1. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      @BIOS
      EasyTune
      EZ Setup
      Fast Boot
      Cloud Station
      ON/OFF Charge
      Smart TimeLock
      Smart Recovery 2
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Smart Switch
    4. Support for Xpress Install
  • Software bundle
    1. Norton® Internet Security (OEM version)
    2. Intel® Rapid Start Technology
    3. Intel® Smart Connect Technology
    4. Intel® Smart Response Technology
    5. Intel® Wireless Display
  • Sistem de operare
    1. Support for Windows 10/8.1/8/7
  • Form Factor
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Observație
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® Z97 Express Chipset
    • Memorie
      1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR3 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Grafică onboard
    • Integrated Graphics Processor - Intel® HD Graphics support:
      1. 1 x DVI-I port, supporting a maximum resolution of 1920x1200@60Hz
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
        * Support for HDMI 1.4a version.
      3. 1 x DisplayPort, supporting a maximum resolution of 4096x2160@24Hz or 3840x2160@60Hz
        * Support for DisplayPort 1.2 version.
      4. Support for up to 3 displays at the same time
      5. Maximum shared memory of 512MB
    • Audio
      1. Realtek® ALC1150 codec
      2. Support for Sound Blaster X-Fi MB3
      3. High Definition Audio
      4. 2/4/5.1/7.1-channel
      5. Support for S/PDIF Out
    • LAN
      1. Qualcomm® Atheros Killer E2201 LAN chip (10/100/1000 Mbit)
    • Wireless Communication module
      1. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
      2. Bluetooth 4.0, 3.0+HS, 2.1+EDR
      3. Support for 11ac wireless standard and up to 867 Mbps data rate
        * Actual data rate may vary depending on environment and equipment.
    • Sloturi de expansiune
      1. 1 x PCI Express x16 slot, running at x16
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      2. 1 x mini-PCI Express slot for the wireless communication module
    • Interfață de stocare
    • Chipset:
      1. 5 x SATA 6Gb/s connectors (SATA3 0/1/2/3/4)
      2. 1 x eSATA 6Gb/s connector on the back panel
        * Actual transfer rate is dependent on the device being connected.
      3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    • USB
    • Chipset:
      1. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      2. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • Conectori interni I/O
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 5 x SATA 6Gb/s connectors
      4. 1 x CPU fan header
      5. 1 x system fan header
      6. 1 x front panel header
      7. 1 x front panel audio header
      8. 1 x USB 3.0/2.0 header
      9. 1 x USB 2.0/1.1 header
      10. 1 x S/PDIF Out header
      11. 1 x Clear CMOS jumper
      12. 1 x chassis intrusion header
    • Conectori panou spate
      1. 1 x PS/2 keyboard/mouse port
      2. 2 x SMA antenna connectors (2T2R)
      3. 1 x DVI-I port
      4. 1 x optical S/PDIF Out connector
      5. 1 x HDMI port
      6. 1 x DisplayPort
      7. 1 x eSATA 6Gb/s connector
      8. 4 x USB 3.0/2.0 ports
      9. 2 x USB 2.0/1.1 ports
      10. 1 x RJ-45 port
      11. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    • Controller I/O
      1. iTE® I/O Controller Chip
    • Monitorizare H/W
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Caracteristici unice
      1. Support for APP Center
        * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
        @BIOS
        EasyTune
        EZ Setup
        Fast Boot
        Cloud Station
        ON/OFF Charge
        Smart TimeLock
        Smart Recovery 2
        System Information Viewer
        USB Blocker
      2. Support for Q-Flash
      3. Support for Smart Switch
      4. Support for Xpress Install
    • Software bundle
      1. Norton® Internet Security (OEM version)
      2. Intel® Rapid Start Technology
      3. Intel® Smart Connect Technology
      4. Intel® Smart Response Technology
      5. Intel® Wireless Display
    • Sistem de operare
      1. Support for Windows 10/8.1/8/7
    • Form Factor
      1. Mini-ITX Form Factor; 17.0cm x 17.0cm
    • Observație
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
