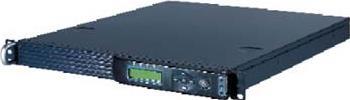

GS-SR114Legacy | Software updates supported
- Dimensions: 19"W x 1.73"H x 21.1"D
- Two Internal ATA- 100 Drive Bays with Cable-less Backplane Design
- Optional LCD Panel for Appliance Server Design
- Intel® 845 Family, ICH2, ATI® Rage XL 8MB
- Intel® P4 Processor (Socket 478/400MHz FSB/2.2GHZ+)
- DDR Model: Max. 2GB Un-Buffered (ECC) DDR-200 Memory in 2 Angle DIMM Slots
- SDRAM Model: Max. 3GB Un-Buffered (ECC) PC-133 Memory in 3 Angle DIMM Slots
- Dual Intel® 82550PM 10/100Mbps Fast Ethernet with Advanced Software Functions
- 1 PCI 32-Bit/33MHz Full-Height and 1 PCI 32-Bit/33MHz Low-Profile Slots
- Winbond® W83910F BMC Chip with IPMI 1.0/Partial 1.5 Support
- Optional LCD Panel
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Intel® Pentium 4 (400MHz FSB) up to 2.2 GHz above
Chipset
- Intel® Brookdale 845 MCH & ICH2
LAN
- Dual Intel® 82550 10/100Mbps Ethernet LAN
- Adapter Fault Tolerance（AFT）
- Adaptive Load Balancing（ALB）
- Wake On LAN (WOL) Supported
Video
- Integrated ATI® Rage XL graphics acceleration with 8 MB RAM
Storage
- N/A (Supports 2 internal IDE ATA-100 HDD)
Expansion Slots
- Two PCI riser card with 2 slots support 32bit/33MHz.(1 Full-size PCI card and 1 low-profile PCI card)
Power Supply[#1]
- 250W
- 100V~240V (Plus or minus 10 percent)
- 50~60Hz(Plus or minus 6 percent)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
