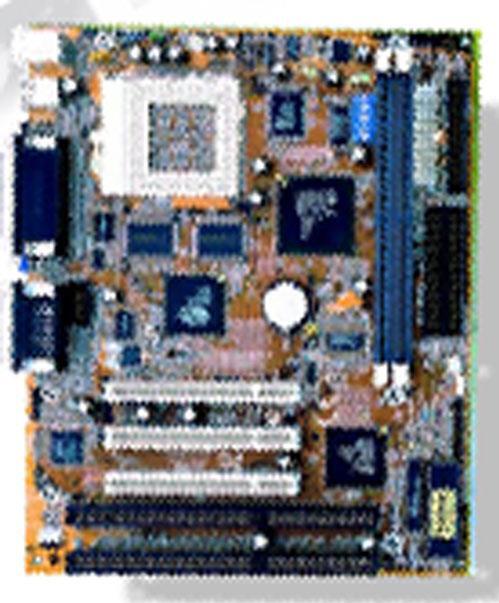

GA-5AMMC

EspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Intel, AMD,IBM/Cyrix, IDT Processor 100~550 MHz
    2. Socket 7 for future Processor support
    3. 66/75/83/95/100 MHz System Speed
    4. CPU Voltage 2.0V~3.5V & AUTO Detect CPU Voltage
    5. Clock multiplier 1.5/2.0....../5.5
  • Chipset
    1. ALi M1541& M1543C AGPset
    2. ATi RAGE IIC on board (4MB SGRAM)
    3. ESS Solo-1 PCI Sound on board
  • Memoria
    1. 8MB to 512MB DRAM size
    2. 2 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256 MB EDO/SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • Puertos de Expansión
    1. 3 x PCI Slot Supports 33MHz & PCI 2.1 compliant
    2. 2 x ISA Slot
  • Controlador de E/S
    1. 2 x Ultra DMA/33 Bus Master IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA (DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 1 x COM by cable
    5. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI,INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Diseño
    1. Micro ATX, 4 layer PCB (24.5*20.0cm)
  • Controlador
    1. ALi Ultra DMA/33 Bus Master IDE Driver
    2. ALi AGP GART VxD & Power Management Controller Driver
    3. ALi RAGE IIC Driver
    4. ESS Solo-1 PCI Sounmd Driver
    5. Trend Micro PC Cillin 98 Anti-Virus Utility Lite Version
  • Otras Características
    1. Supports Wake On LAN Header (WOL)
    2. Supports Internal / External modem wake on
    3. Poly fuse for keyboard overcurrent protection
  • Energía
    1. ATX Power connector
    2. Power On by Keyboard, LAN, RTC Alarm, Modem Ring & Switch
    3. Power Off by Keyboard, Windows 98 Shut down & Switch
    4. Stop CPU Fan when entering suspend mode
  • Procesador
    1. Intel, AMD,IBM/Cyrix, IDT Processor 100~550 MHz
    2. Socket 7 for future Processor support
    3. 66/75/83/95/100 MHz System Speed
    4. CPU Voltage 2.0V~3.5V & AUTO Detect CPU Voltage
    5. Clock multiplier 1.5/2.0....../5.5
  • Chipset
    1. ALi M1541& M1543C AGPset
    2. ATi RAGE IIC on board (4MB SGRAM)
    3. ESS Solo-1 PCI Sound on board
  • Memoria
    1. 8MB to 512MB DRAM size
    2. 2 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256 MB EDO/SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • Puertos de Expansión
    1. 3 x PCI Slot Supports 33MHz & PCI 2.1 compliant
    2. 2 x ISA Slot
  • Controlador de E/S
    1. 2 x Ultra DMA/33 Bus Master IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA (DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 1 x COM by cable
    5. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI,INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Diseño
    1. Micro ATX, 4 layer PCB (24.5*20.0cm)
  • Controlador
    1. ALi Ultra DMA/33 Bus Master IDE Driver
    2. ALi AGP GART VxD & Power Management Controller Driver
    3. ALi RAGE IIC Driver
    4. ESS Solo-1 PCI Sounmd Driver
    5. Trend Micro PC Cillin 98 Anti-Virus Utility Lite Version
  • Otras Características
    1. Supports Wake On LAN Header (WOL)
    2. Supports Internal / External modem wake on
    3. Poly fuse for keyboard overcurrent protection
  • Energía
    1. ATX Power connector
    2. Power On by Keyboard, LAN, RTC Alarm, Modem Ring & Switch
    3. Power Off by Keyboard, Windows 98 Shut down & Switch
    4. Stop CPU Fan when entering suspend mode

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
