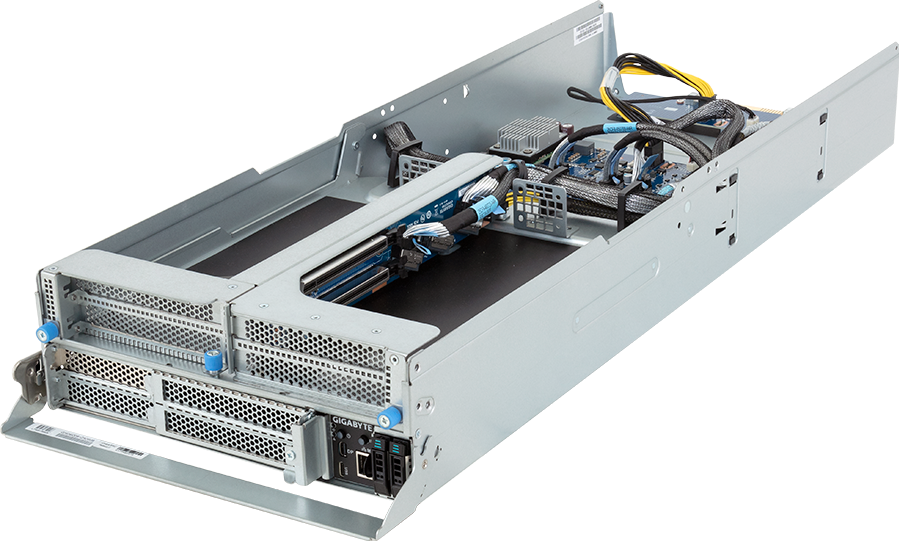

TO25-S12-AA01

ORv3 Compute Node - 5th/4th Gen Intel^® Xeon^® Scalable - 2OU 2-Node UP 1 x PCIe Gen5 GPU

Supports 1 x Dual slot Gen5 GPU
Single 5th/4th Gen Intel^® Xeon^® Scalable Processors
8-Channel DDR5 RDIMM, 8 x DIMMs
Dual ROM Architecture
2 x E1.S Gen4 NVMe hot-swap bays
1 x M.2 slot with SATA interface
1 x FHFL PCIe Gen5 x16 slot for GPUs
1 x FHFL PCIe Gen5 x16 slot
2 x FHHL PCIe Gen5 x16 slots
1 x LP PCIe Gen5 x8 slot
48V DC Bus Bar power solution

Ordering Numbers: 6NTO25S12DR000AB01*

Save

Quote

Overview
Specifications
Support
Related Resources

Specifications

Dimensions (WxHxD, mm)

2OU 2-Node
265.1 x 90.7 x 742.9

Open Rack Version

ORv3

Motherboard

MS13-HD0

CPU

5th Generation Intel^® Xeon^® Scalable Processors
4th Generation Intel^® Xeon^® Scalable Processors

Single processor, TDP up to 250W

Memory

8 x DIMM slots
DDR5 memory supported
8-Channel memory per processor

5th Gen Intel^® Xeon^®:
RDIMM: Up to 5600 MT/s

4th Gen Intel^® Xeon^®:
RDIMM: Up to 4800 MT/s

Intel^® Xeon^® Max Series:
RDIMM: Up to 4800 MT/s

LAN

Front:
1 x 10/100/1000 Mbps Management LAN

Storage

Front hot-swap:
2 x 9.5mm E1.S Gen4 NVMe

Internal M.2 (CFPH010):
1 x M.2 (2242/2260/2280/22110), SATA, from PCH

SAS

N/A

RAID

N/A

PCIe Expansion Slots

PCIe Cable x 2:
- 1 x FHFL x16 (Gen5 x16), for GPUs
- 1 x FHFL x16 (Gen5 x16)

Riser Card CRSH02D:
- 2 x FHHL x16 (Gen5 x16)

Riser Card CRSH02E:
- 1 x LP x16 (Gen5 x16), disabled
- 1 x LP x16 (Gen5 x8)

Front I/O

1 x MLAN
1 x ID button with LED

I/O board - CFPH010:
1 x USB 3.2 Gen1 port (Type-C)
1 x Mini-DP
1 x Power button with LED
1 x System status LED
1 x ID LED

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Power Supply

Supports up to 1600W

System Management

ASPEED^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022
Windows Server 2025

Weight

Net Weight: 13 kg
Gross Weight: 15.2 kg

Packaging Dimensions

1182 x 485 x 275 mm

Packaging Content

1 x TO25-S12-AA01
1 x CPU heatsink
1 x GPU power cable (12VHPWR, 350mm)
3 x Carriers

Part Numbers

- Barebone package (5th/4th Gen): 6NTO25S12DR000AB01*
- Barebone package (4th Gen): 6NTO25S12DR000AA01*
- Motherboard: 9MS13HD0UR-000*
- CPU heatsink: 25ST1-453207-C1R
- Front panel board - COFP111: 9COFP111NR-00*
- Riser card - CRSH02D: 9CRSH02DNR-00*
- Riser card - CRSH02E: 9CRSH02ENR-00*
- EDSFF base board - COBP721: 9COBP721NR-00*
- EDSFF riser card - CSPP010: 9CSPP010NR-00*
- I/O board with M.2 slot - CFPH010: 9CFPH010NR-00*
- GPU power cable (12VHPWR, 350mm): 25CRI-3500B3-Y4R

Optional parts:

- RMA packaging: 6NTO25S12SR-RMA-A100

No. of Bus Bars

1 x 48V Bus Bar

[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.
