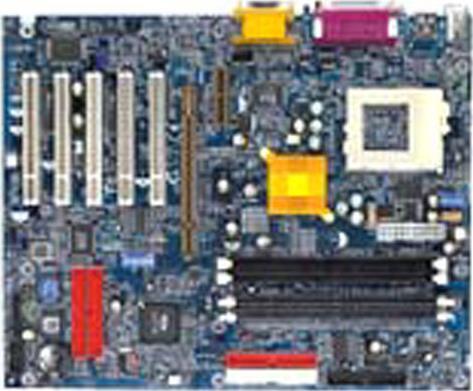

GA-6RXB (Rev. 1.0)

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 370 for Intel ® FC-PGA Pentium ® III or other compatible processors
    2. Auto/66/100/112*/124*/133/140*/150* MHz FSB
    3. Auto detect CPU voltage
  • Chipset
    1. Apollo Pro266 (North Bridge -VT8633; South Bridge - VT8233)
    2. ITE I/O chip
    3. Creative CT5880 PCI sound chip (4 channel audio)
  • Memory
    1. 2 x 184-pin DDR DIMM support up to 2GB of DDR 200/266 SDRAM
    2. 2 x 168-pin SDRAM DIMM support up to 1GB
  • Expansion Slots
    1. 1 x AGP Pro slot supports 2X/4X mode & AGP 2.0 compliant
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x AMR (Audio Modem Riser) slot
  • I/O Controller
    1. IDE1 and IDE 2 supports PIO mode 3, 4,ULTRA ATA 100/66 IDE devices IDE 3 and IDE 4 supports RAID 0, RAID 1
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable
    6. IrDA TX / RX header
  • H/W Monitoring
    1. CPU/System fan revolution detect
    2. CPU/System temperature detect
    3. System voltage detect (Vcore, Vcc3, Vcc, +12V)
    4. CPU overheat shutdown detect
  • BIOS
    1. Supports DualBIOS™ technology; 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Supports @BIOS™ Live Update
  • Form Factor
    1. ATX form factor, 4 layers PCB ( 24.4 x 30.40 cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
    3. Creative PCI audio driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports Wake-On-LAN (WOL)
    3. Supports Internal / External Modem Ring On
    4. Includes 3 fan power connectors
    5. Poly fuse for keyboard over-current protection
    6. Supports EasyTune III™
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/Me/2000/NT shut down & switch
    4. Supports USB device wake up
  • CPU
    1. Socket 370 for Intel ® FC-PGA Pentium ® III or other compatible processors
    2. Auto/66/100/112*/124*/133/140*/150* MHz FSB
    3. Auto detect CPU voltage
  • Chipset
    1. Apollo Pro266 (North Bridge -VT8633; South Bridge - VT8233)
    2. ITE I/O chip
    3. Creative CT5880 PCI sound chip (4 channel audio)
  • Memory
    1. 2 x 184-pin DDR DIMM support up to 2GB of DDR 200/266 SDRAM
    2. 2 x 168-pin SDRAM DIMM support up to 1GB
  • Expansion Slots
    1. 1 x AGP Pro slot supports 2X/4X mode & AGP 2.0 compliant
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x AMR (Audio Modem Riser) slot
  • I/O Controller
    1. IDE1 and IDE 2 supports PIO mode 3, 4,ULTRA ATA 100/66 IDE devices IDE 3 and IDE 4 supports RAID 0, RAID 1
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable
    6. IrDA TX / RX header
  • H/W Monitoring
    1. CPU/System fan revolution detect
    2. CPU/System temperature detect
    3. System voltage detect (Vcore, Vcc3, Vcc, +12V)
    4. CPU overheat shutdown detect
  • BIOS
    1. Supports DualBIOS™ technology; 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Supports @BIOS™ Live Update
  • Form Factor
    1. ATX form factor, 4 layers PCB ( 24.4 x 30.40 cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
    3. Creative PCI audio driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports Wake-On-LAN (WOL)
    3. Supports Internal / External Modem Ring On
    4. Includes 3 fan power connectors
    5. Poly fuse for keyboard over-current protection
    6. Supports EasyTune III™
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/Me/2000/NT shut down & switch
    4. Supports USB device wake up

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
