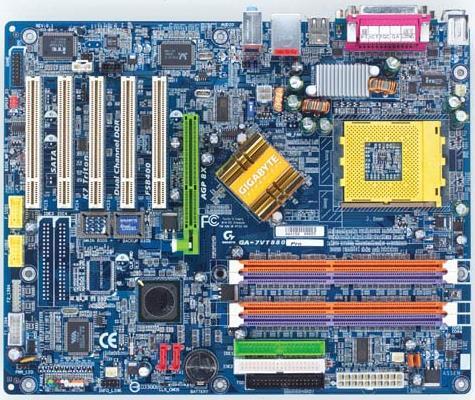

GA-7VT880 Pro (Rev. 1.0)

OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket A for AMD AthlonTM XP / AthlonTM /DuronTM processor
  • Front Side Bus
    1. 400/333/266/200 MHz FSB
  • Chipset
    1. Northbridge : VIA KT880
    2. Southbridge : VIA 8237
    3. Integrated Peripherals
      1. Realtek ALC658 AC97 codec Chip
      2. Realtek 8110S LAN Chip
  • Memory
    1. Type : Dual Channel DDR400(PC3200)/ DDR333 (PC2700) / DDR266 (PC2100) -184pin
    2. Max capacity : 4GB
    3. DIMM slots:4
  • Expansion Slots
    1. 1 x AGP slot (8X/4X-AGP 3.0 compliant)
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 1 x FDD port
    2. 2 x UDMA ATA133/100/66 Bus Master IDE ports
    3. 2 x Serial ATA connectors
    4. 2 x USB 2.0 connectors (support 4 ports)
    5. 2 x IEEE 1394 connectors ( supports 3 ports)
    6. 2 x cooling fan pin header
    7. 1 x GAME/ MIDI connector
    8. S/P DIF input/output pin header
  • Back Panel Connectors
    1. PS/2 Keyboard / Mouse
    2. 1 x RJ45 port
    3. 4 x USB 2.0 ports
    4. 2 x COM ports
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) ports
    6. 1 x LPT
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report for CPU voltage, and Fan Speed
    3. Support auto temperature detect and thermal shutdown function
  • BIOS
    1. 2 x 4M bit flash ROM, Phoenix BIOS
  • Form Factor
    1. ATX, Dimension : ( 30.5x 24.4cm )
  • Other Features
    1. Xpress Install
    2. Xpress Recovery
    3. EasyTune4
    4. @BIOS
    5. Q-Flash
  • CPU
    1. Socket A for AMD AthlonTM XP / AthlonTM /DuronTM processor
  • Front Side Bus
    1. 400/333/266/200 MHz FSB
  • Chipset
    1. Northbridge : VIA KT880
    2. Southbridge : VIA 8237
    3. Integrated Peripherals
      1. Realtek ALC658 AC97 codec Chip
      2. Realtek 8110S LAN Chip
  • Memory
    1. Type : Dual Channel DDR400(PC3200)/ DDR333 (PC2700) / DDR266 (PC2100) -184pin
    2. Max capacity : 4GB
    3. DIMM slots:4
  • Expansion Slots
    1. 1 x AGP slot (8X/4X-AGP 3.0 compliant)
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 1 x FDD port
    2. 2 x UDMA ATA133/100/66 Bus Master IDE ports
    3. 2 x Serial ATA connectors
    4. 2 x USB 2.0 connectors (support 4 ports)
    5. 2 x IEEE 1394 connectors ( supports 3 ports)
    6. 2 x cooling fan pin header
    7. 1 x GAME/ MIDI connector
    8. S/P DIF input/output pin header
  • Back Panel Connectors
    1. PS/2 Keyboard / Mouse
    2. 1 x RJ45 port
    3. 4 x USB 2.0 ports
    4. 2 x COM ports
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) ports
    6. 1 x LPT
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report for CPU voltage, and Fan Speed
    3. Support auto temperature detect and thermal shutdown function
  • BIOS
    1. 2 x 4M bit flash ROM, Phoenix BIOS
  • Form Factor
    1. ATX, Dimension : ( 30.5x 24.4cm )
  • Other Features
    1. Xpress Install
    2. Xpress Recovery
    3. EasyTune4
    4. @BIOS
    5. Q-Flash

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
