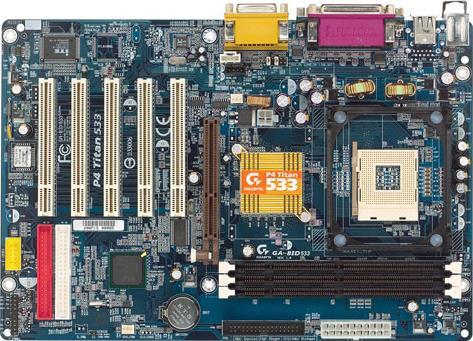

GA-8ID533 (Rev. 1.0)

Rev. 1.0Rev. 1.1
SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 478 for Intel® FC-PGA2 Pentium® 4 processor in 478 pin package
    2. 400 MHz FSB
  • Front Side Bus
    1. 400MHz
  • Chipset
    1. Intel® 845 Chipset consists of Intel® Memory Controller Hub (MCH) and the Intel® I/O Controller Hub 2 (ICH2)
    2. TE 8702 I/O chip
    3. AC97 codec
  • Memory
    1. 3 x 168-pin DIMM slot
    2. Supports up to 3GB PC100/133 SDR-SDRAM
  • Expansion Slots
    1. 1 x AGP 4X slot supports 4X mode & AGP 2.0 compliant
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
  • I/O Controller
    1. IDE1 and IDE 2 supports PIO mode 3, 4, UDMA ATA 100/66 IDE devices
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable
    6. IrDA TX / RX header
  • BIOS
    1. Award BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Form Factor
    1. ATX form factor, 4 layers PCB (29.5 x 19.6 cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. Intel® LDCM® utility
    3. Sigmatel sound driver (Version 1.0)
    4. REALTEK Sound Driver (version 1.1)
  • Other Features
    1. Q-Flash™, @-BIOS™
    2. Includes 3 fan power connectors
    3. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/Me/2000/NT/XP shut down & switch
    4. Supports USB device wake up
  • CPU
    1. Socket 478 for Intel® FC-PGA2 Pentium® 4 processor in 478 pin package
    2. 400 MHz FSB
  • Front Side Bus
    1. 400MHz
  • Chipset
    1. Intel® 845 Chipset consists of Intel® Memory Controller Hub (MCH) and the Intel® I/O Controller Hub 2 (ICH2)
    2. TE 8702 I/O chip
    3. AC97 codec
  • Memory
    1. 3 x 168-pin DIMM slot
    2. Supports up to 3GB PC100/133 SDR-SDRAM
  • Expansion Slots
    1. 1 x AGP 4X slot supports 4X mode & AGP 2.0 compliant
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
  • I/O Controller
    1. IDE1 and IDE 2 supports PIO mode 3, 4, UDMA ATA 100/66 IDE devices
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable
    6. IrDA TX / RX header
  • BIOS
    1. Award BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Form Factor
    1. ATX form factor, 4 layers PCB (29.5 x 19.6 cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. Intel® LDCM® utility
    3. Sigmatel sound driver (Version 1.0)
    4. REALTEK Sound Driver (version 1.1)
  • Other Features
    1. Q-Flash™, @-BIOS™
    2. Includes 3 fan power connectors
    3. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/Me/2000/NT/XP shut down & switch
    4. Supports USB device wake up

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
