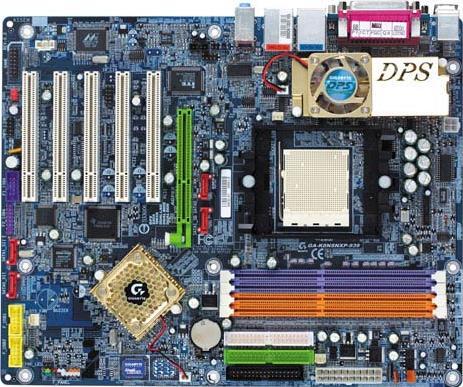

GA-K8NSNXP-939 (Rev. 1.x)

OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 939 for AMD Athlon64/ 64 FX
  • Chipset
    1. NVIDIA nForce3 Ultra Platform Processor
    2. Super I/O: ITE IT8712F chip
    3. Integrated peripherals
      1. Silicon Image sil3512 controller
      2. T.I. IEEE1394b controller
      3. Marvell 8001 Gigabit Ethernet controller
      4. ICS 1883 LAN PHY chip
      5. Realtek ALC850 Audio AC'97 Codec
  • Memory
    1. Type: Dual channel DDR400/ 333/ 266 -184pin
    2. Max capacity: Up to 4GB by 4 DIMM slots
  • Expansion Slots
    1. 1 x AGP slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only
    2. 5 x PCI slots (PCI 2.3 compliant)
  • Internal I/O Connectors
    1. 4 x Serial ATA connector
    2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
    5. 2 x IEEE 1394b connectors (supports 3 ports)
    6. S/P DIF input/output pin header
    7. 3 x cooling fan pin headers
    8. CD in
    9. 1 x Game/Midi connector
  • Back Panel Connectors
    1. PS/2 Keyboard / Mouse
    2. 4 x USB 2.0/1.1 ports
    3. 2 x RJ45 ports
    4. 2 x COM ports
    5. 1 x LPT
    6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, CPU voltage, and fan speed
  • BIOS
    1. 2 X 4M bit flash ROM, Award BIOS
  • Form Factor
    1. ATX form factor
    2. 30.5 x 24.4 cm
  • CPU/AGP/DIMM setting
    1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Other Features
    1. Support NVIDIA Firewall
    2. XpressTM Installation
    3. XpressTM Recovery
    4. Q-FlashTM
    5. @BIOSTM
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.
  • CPU
    1. Socket 939 for AMD Athlon64/ 64 FX
  • Chipset
    1. NVIDIA nForce3 Ultra Platform Processor
    2. Super I/O: ITE IT8712F chip
    3. Integrated peripherals
      1. Silicon Image sil3512 controller
      2. T.I. IEEE1394b controller
      3. Marvell 8001 Gigabit Ethernet controller
      4. ICS 1883 LAN PHY chip
      5. Realtek ALC850 Audio AC'97 Codec
  • Memory
    1. Type: Dual channel DDR400/ 333/ 266 -184pin
    2. Max capacity: Up to 4GB by 4 DIMM slots
  • Expansion Slots
    1. 1 x AGP slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only
    2. 5 x PCI slots (PCI 2.3 compliant)
  • Internal I/O Connectors
    1. 4 x Serial ATA connector
    2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
    5. 2 x IEEE 1394b connectors (supports 3 ports)
    6. S/P DIF input/output pin header
    7. 3 x cooling fan pin headers
    8. CD in
    9. 1 x Game/Midi connector
  • Back Panel Connectors
    1. PS/2 Keyboard / Mouse
    2. 4 x USB 2.0/1.1 ports
    3. 2 x RJ45 ports
    4. 2 x COM ports
    5. 1 x LPT
    6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, CPU voltage, and fan speed
  • BIOS
    1. 2 X 4M bit flash ROM, Award BIOS
  • Form Factor
    1. ATX form factor
    2. 30.5 x 24.4 cm
  • CPU/AGP/DIMM setting
    1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Other Features
    1. Support NVIDIA Firewall
    2. XpressTM Installation
    3. XpressTM Recovery
    4. Q-FlashTM
    5. @BIOSTM
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
