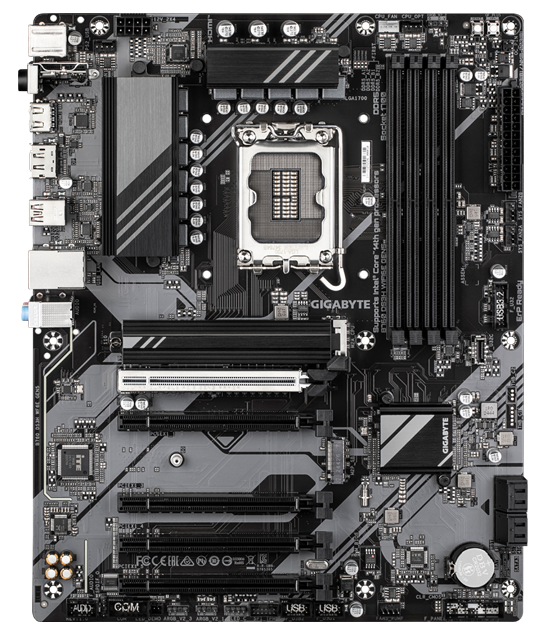

B760 DS3H WIFI6E GEN5
OVERVIEW
Performance
Thermal

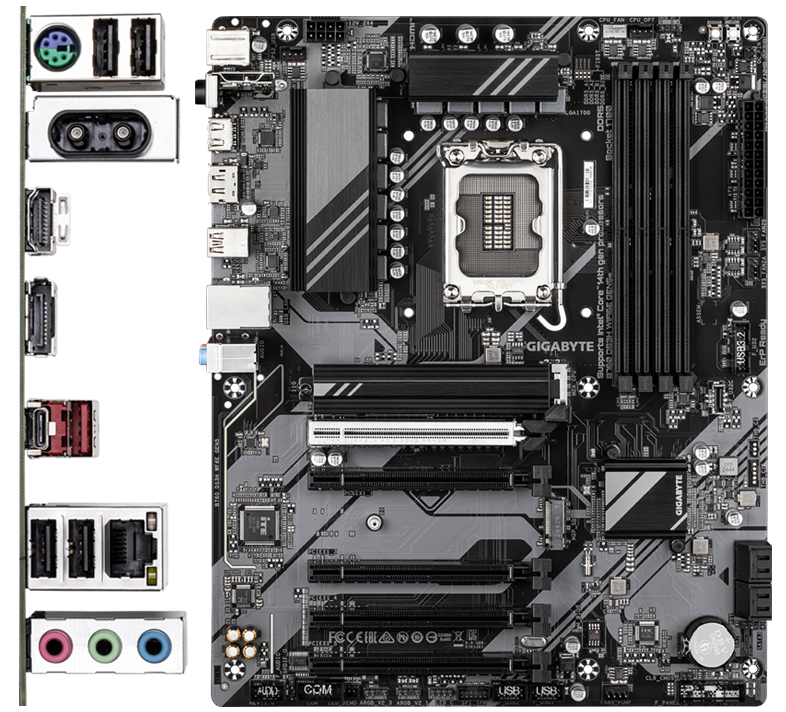

Connectivity
DIY Friendly
-
8+2+1 Phases Hybrid VRM Design
- 6-Layer & PCIe 5.0 Ready PCB
- Premium Choke and Capacitor
-
Support 14th and 13th Gen. Intel® Core™ Processors
-
UD Power Connector
- 24 pin ATX Power Connector
- 8 pin CPU with UD Solid Pin
-
4 x DIMMs, Dual Channel DDR5
-
2 x M.2 Slots
- 2 x PCIe 4.0 M.2 Slots
-
Full-length PCIe slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot
- 4 x PCIe 3.0 x1
-
VRM Thermal Armor Advanced
-

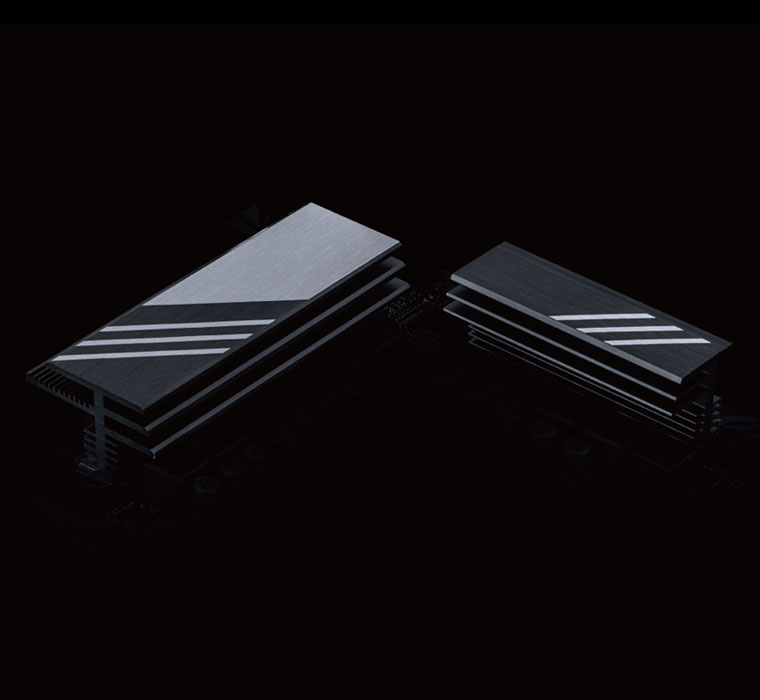

M.2 Thermal Guard
-
4 x USB 2.0
-
1 x HDMI
-
1 x Display Port
-
1 x USB 3.2 Gen 2x2 Type-C®
-
1 x USB 3.2 Gen 2
-
GbE LAN
-
Wi-Fi 6E 802.11ax
-
WIFI EZ-Plug
-
Front USB-C 5Gb/s
-
4 x SATA 6Gb/s
-
Hi-Fi Audio
- 8-CH HD Audio
- High-End Audio Capacitor
-
RGB FUSION
- 3 x Addressable LED Headers
- 1 x RGB LED Header
-
Q-FLASH PLUS Button
-
WIFI EZ-Plug
-
PCIe EZ-Latch
Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

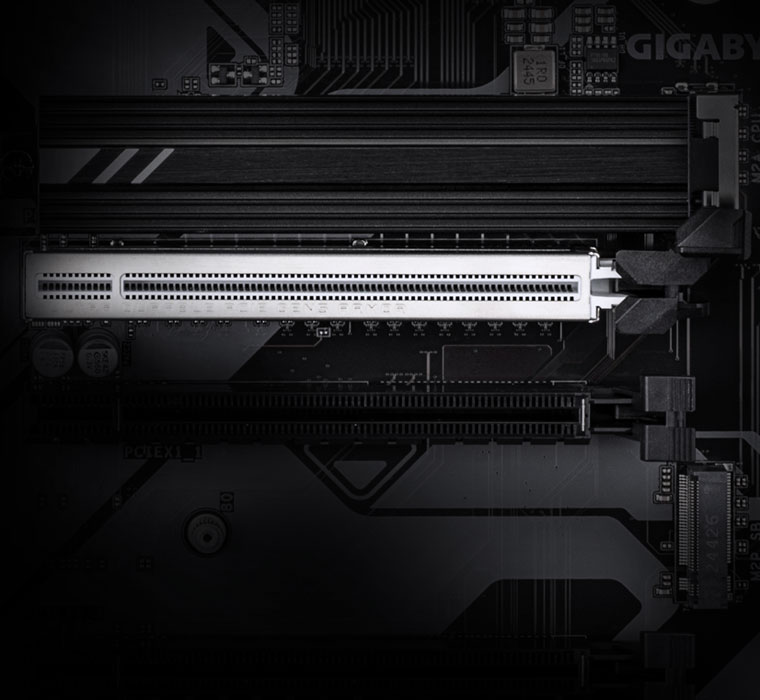

PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
stronger shearing test
stronger retention force test
Reduced Signal Degradation with SMD Technology

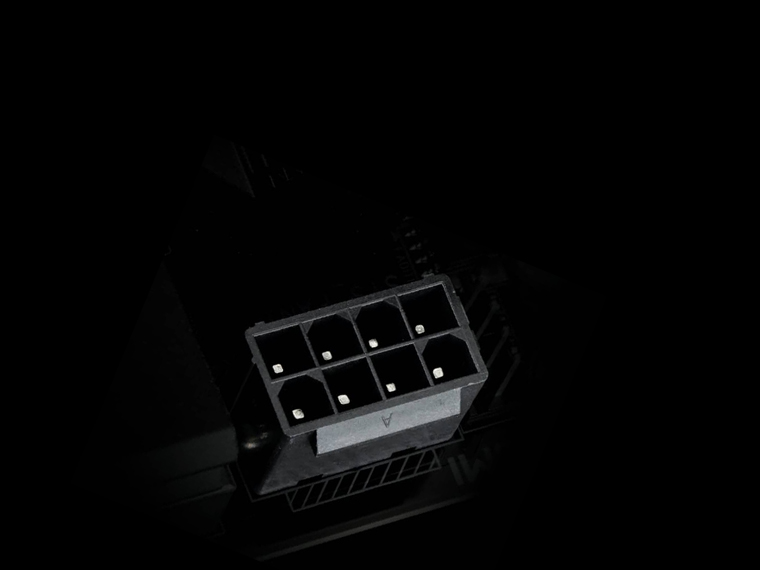

UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections
Smart Fan 6
Cool. Quiet. Customized.
Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
Note: Images are for illustrative purposes and may differ based on your model.
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads

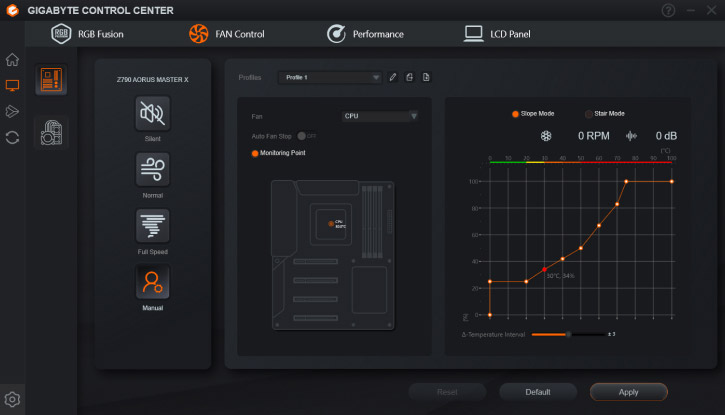

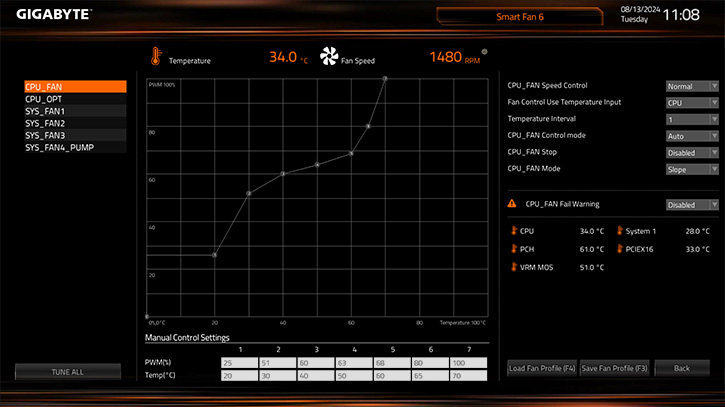

Smart Fan 6 BIOS UI
Note: Images are for illustrative purposes and may differ based on your model.
Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments
Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts
EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimization of fan curve
Fan Curve Profile
- Save personalized settings to BIOS ROM
- Maintain custom settings through BIOS updates

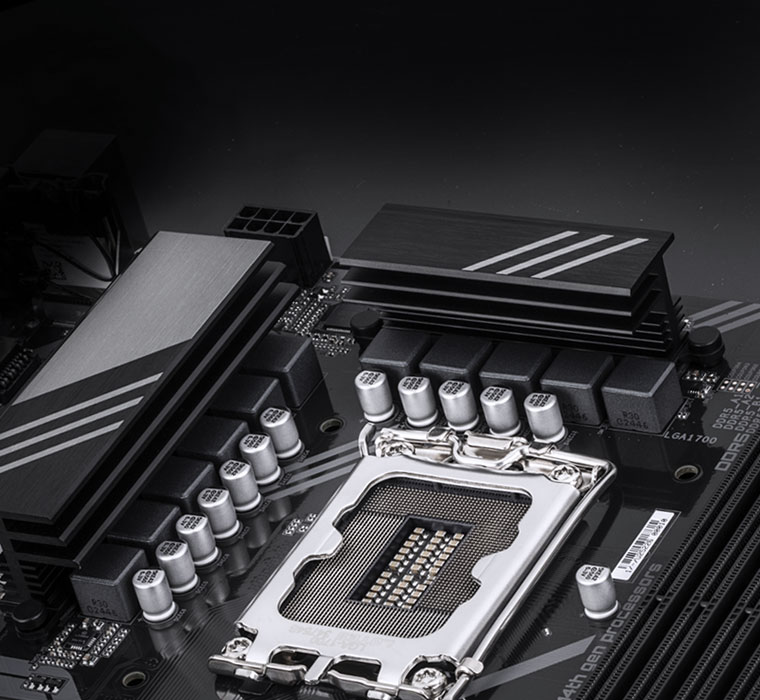

Hybrid VRM Design

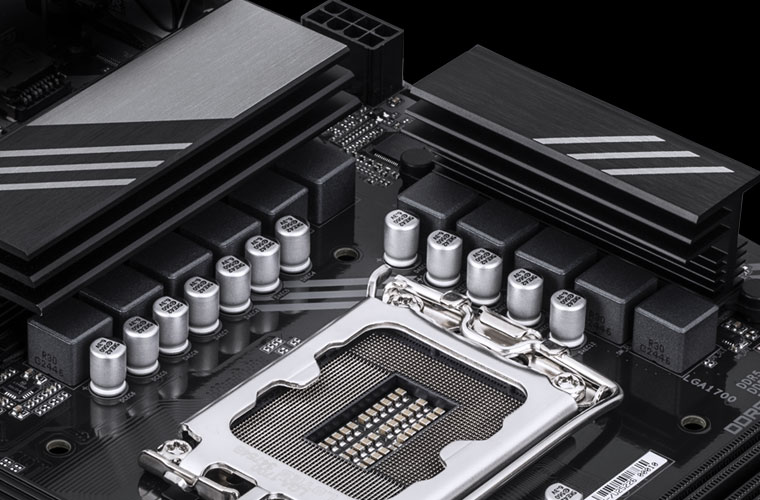

The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Hybrid VRM Design
• 8+2+1 Phases Hybrid PWM
• Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.
Unlock DDR5 Performance
GIGABYTE is offering a tested and proven platform with extreme memory performance boost. QVL List
DDR5 Overclocking Up to
7600 MT/s
* Memory overlocking and XMP profile support may vary depending on hardware configuration.
* Please see the complete validated memory support list. Product features may vary by model.
Unlock DDR5 Voltage
GIGABYTE Exclusive DDR5 Circuit Design Increases DDR5 memory overclocking performance and capability by transforming Native DDR5 memory module to Overclocked DDR5 memory.
Secure Mode
Motherboard provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.
- Unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with wide range.
- Supports all PMIC vendors for maximum compatibility.
- Memory overclocking capability will vary based on users' hardware configuration.

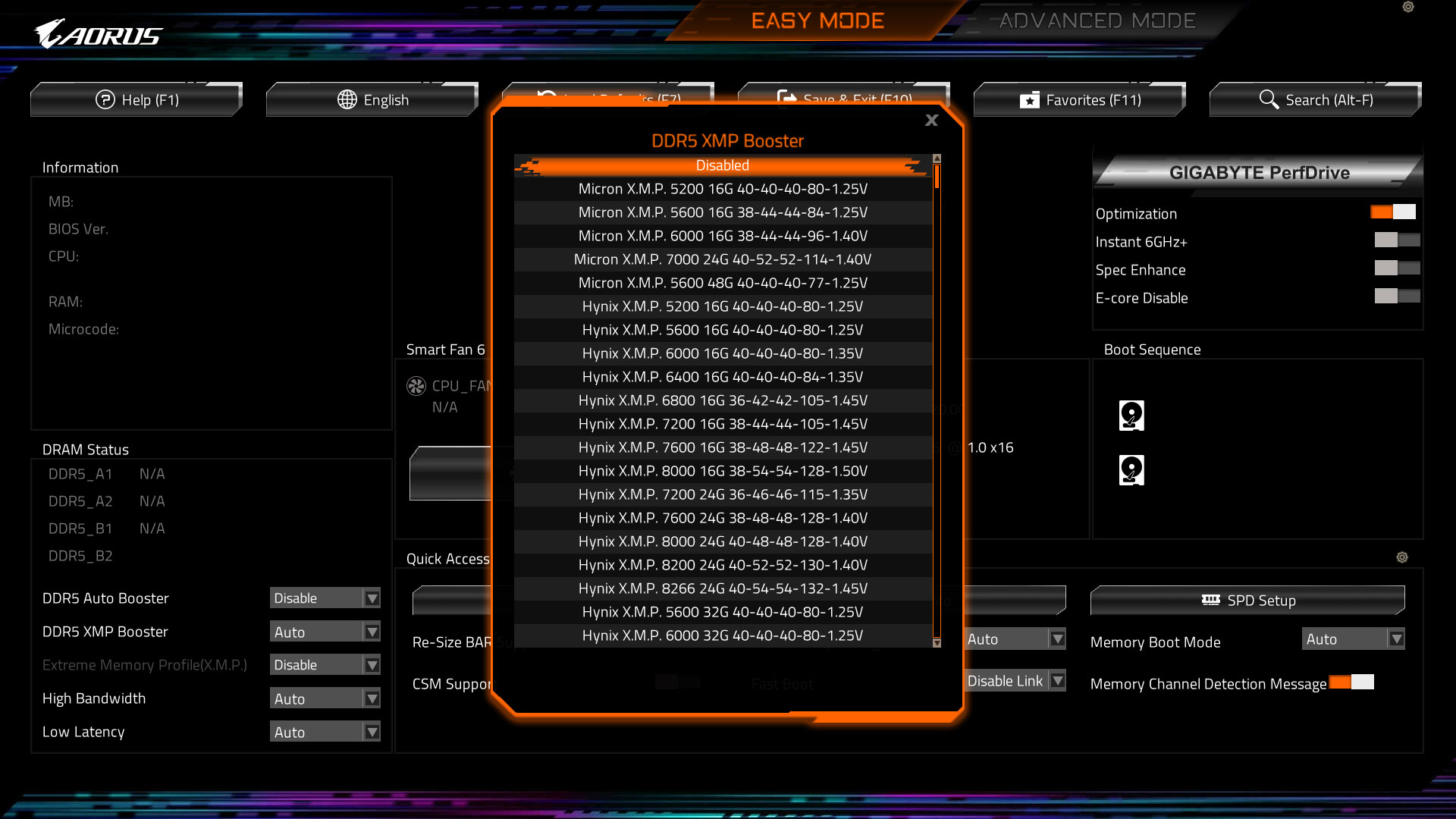

Achieve Higher DDR5 Memory Frequencies with Ease
DDR5 XMP Booster function provides optimized pre-defined profiles, based on memory IC and PMIC vendor analysis, for effortless performance enhancement and elimination of manual configuration for overclocked DDR5 memory kits.
Accelerate instantly
Boost memory performance instantly.
Automate input
No need to manually configure multiple memory parameters like clock, voltage, and timings.
Streamline overclocking
Easily overclock Native and XMP 3.0 DDR5 memory to higher frequencies.
Integrate database
Built-in database of pre-tuned profiles for different memory IC vendors.
* Image for reference only, and may vary by model.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefit of Wi-Fi 6E
- Dedicated spectrum in 6GHz band for less interference
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
Wi-Fi 6E bring you the Ultimate VR experience!
Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.
- Wi-Fi 6E compared to Wi-Fi 5 provide…
- 40% faster speed for smoother gaming/streaming experience
- 50% higher resolution for video game related content
- Better battery life for VR devices
Wi-Fi 6E Advantage
Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Connecting the Future - USB 3.2 Gen 2x2 Type-C

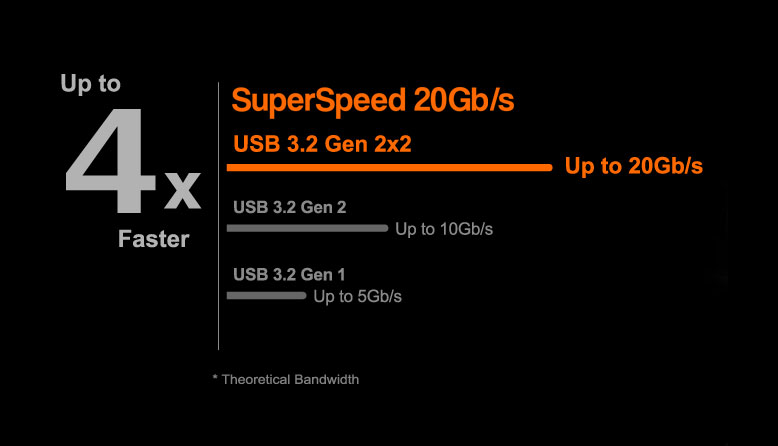

Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
USB 3.2 Gen 2x2 Type-C

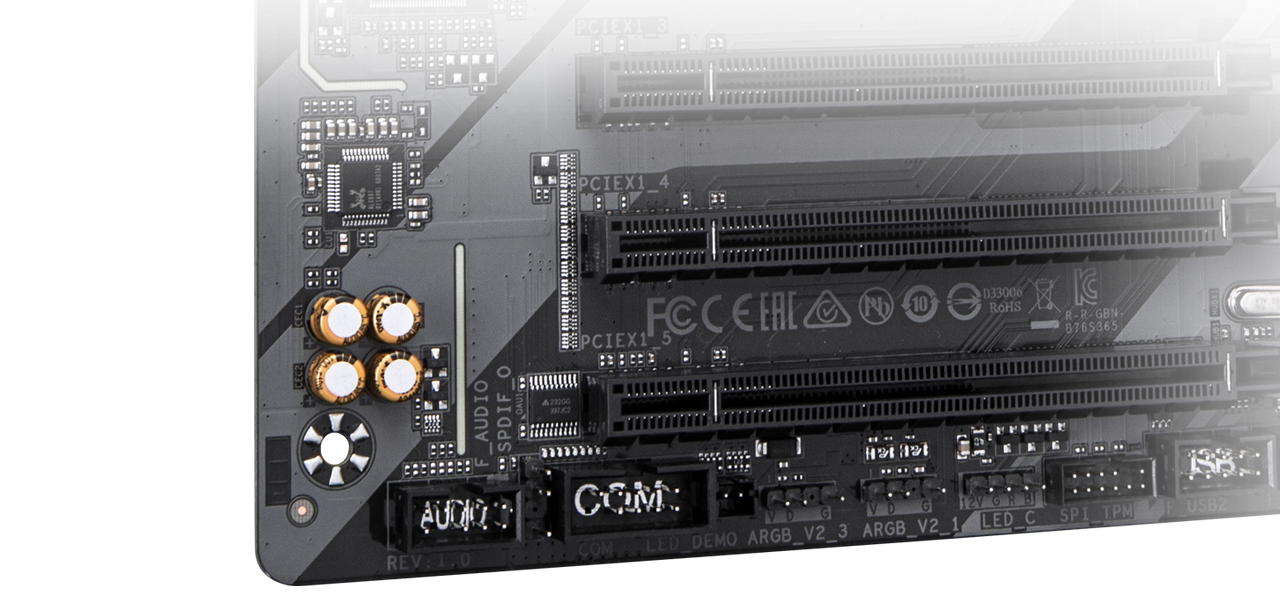

Hi-Fi Audio
High-End Audio Capacitors Audio Noise Guard
Hi-Fi Audio
High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
Audio Noise Guard
Essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

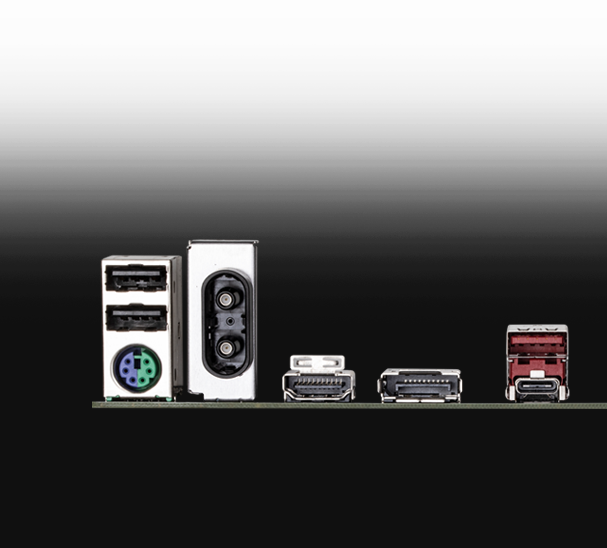

WIFI EZ-Plug

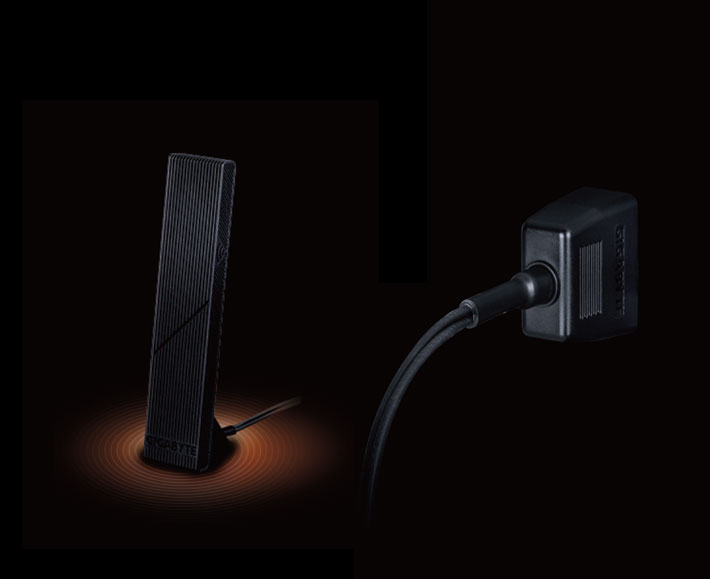

The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

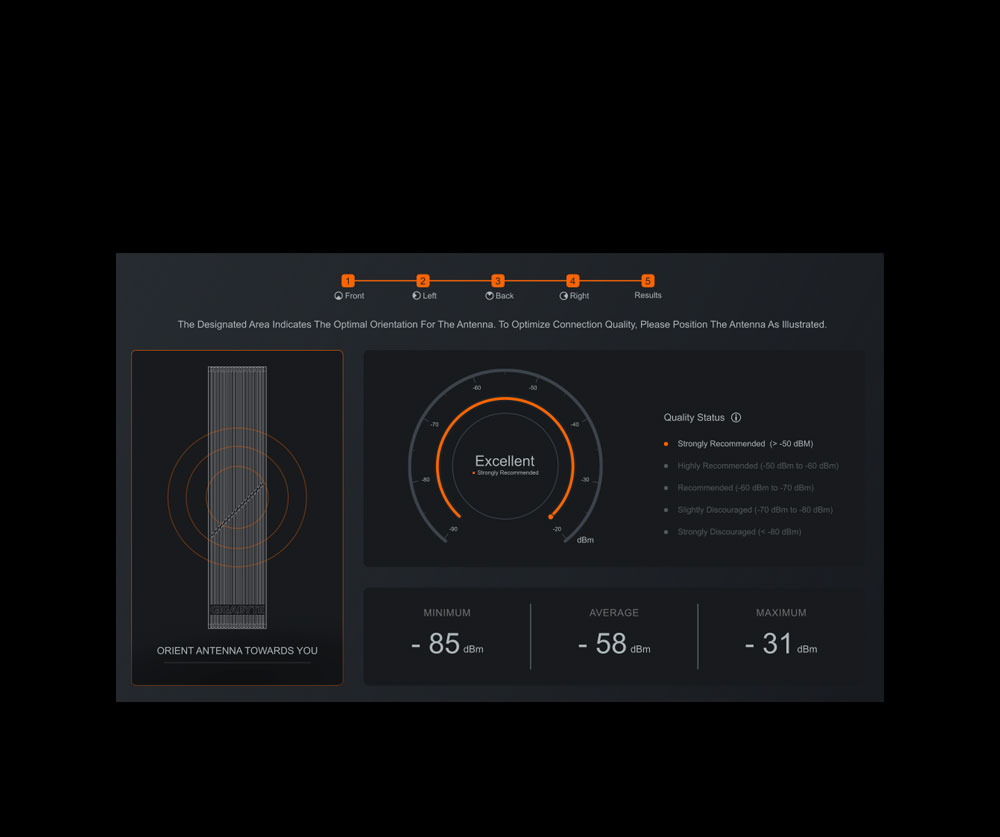

WIFI Compass
Features auto detection to help users find the best antenna position for stronger Wi-Fi signal.
Easy-to-use interface guides users to measure without expertise :
4D Mode (4 Detection Mode)
Built for everyday use.
CD Mode (Continuous Detection Mode)
Designed for technical enthusiasts.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

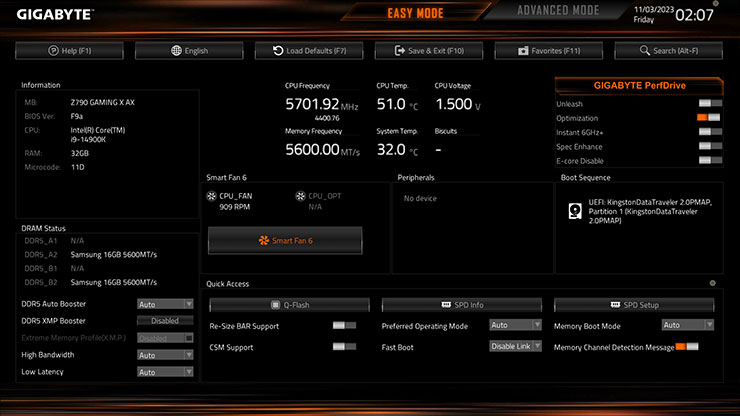

UC BIOS
an intuitive operation interface with an aesthetically pleasing design.
9 customizable option slots for effortless access in Easy Mode.
exclusive BIOS settings that optimize the performance based on the cooling configuration

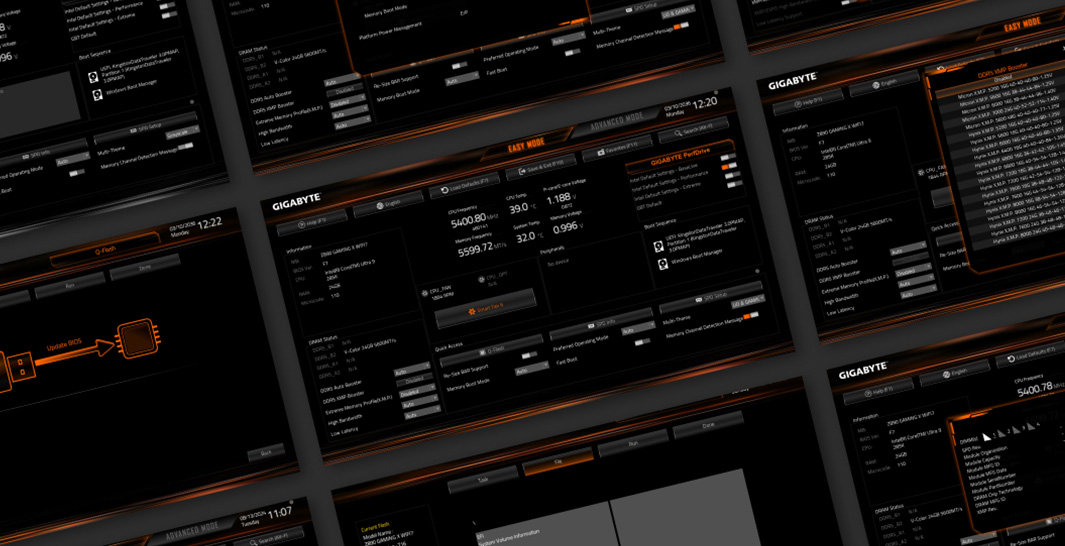

UC BIOS
Enhanced Intuitive UX
GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimized experience featuring an intuitive operation interface and an aesthetically pleasing design.
Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects 9 practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.
GIGABYTE PerfDrive
PerfDrive technology integrates exclusive BIOS settings from GIGABYTE, enabling easy balance of performance, power consumption, and temperature with Intel® Core™ processors.
Max Turbo
Unleashes the maximum Turbo Boost speed of Intel® Core™ CPUs.
Optimization Mode
Strikes a balance between high performance and low temperature for Intel® Core™ CPUs.
Spec Enhance Mode
Enables high-performance operation of Intel® Core™ CPUs at lower temperature settings.
E-Core™ Disable Mode
Dedicates CPU resources exclusively to the P-core, enhancing gaming performance while reducing overall power consumption.
Multi-key

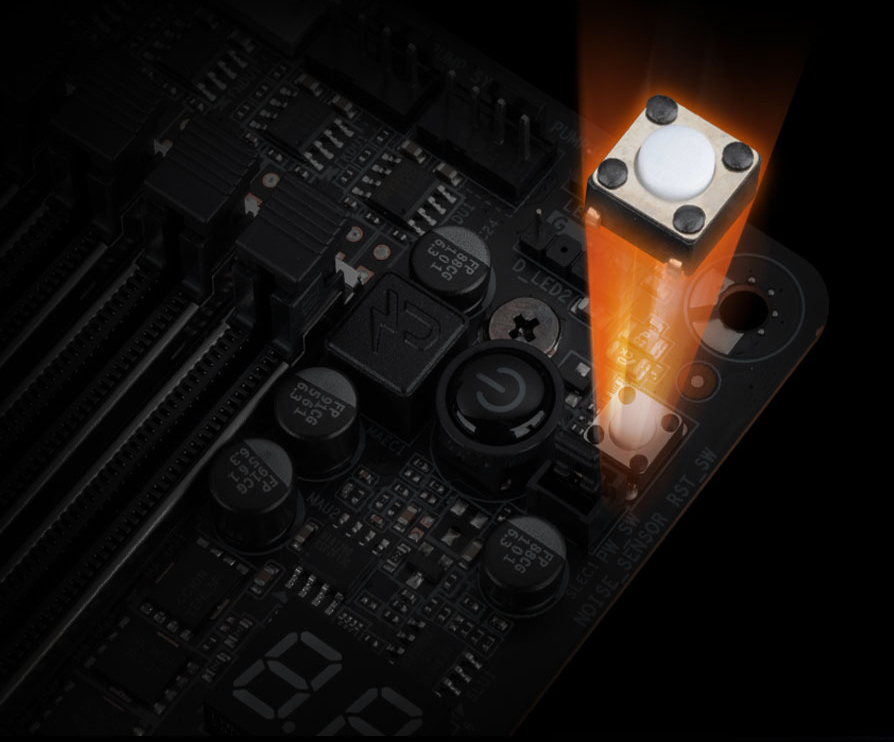

A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.
Multi-key
A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.
RGB Switch
Disable all light displays on the motherboard.
Direct-To-BIOS
Access the BIOS settings directly without keyboard inputs.
Safe Mode
Access BIOS safe mode to modify select settings while preserving other configurations.
Q-FLASH PLUS
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.
Q-FLASH PLUS
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.
Connect the 24-pin and 8-pin power cables directly to the motherboard.
Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.
Press the Q-FLASH PLUS button to trigger automatic BIOS updating.

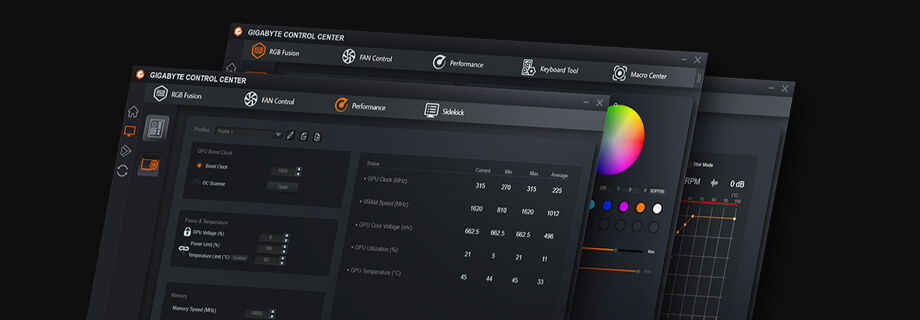

GIGABYTE Control Center
A unified software platform encompassing multiple GIGABYTE product.
Personalize the RGB illumination on connected peripherals.
RGB Fusion
Varnish your shine
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
Key Features
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 8+2+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
- Fast Networks : GbE LAN & Wi-Fi 802.11ax
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : Rear USB-C® 20Gb/s, DP, HDMI
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
