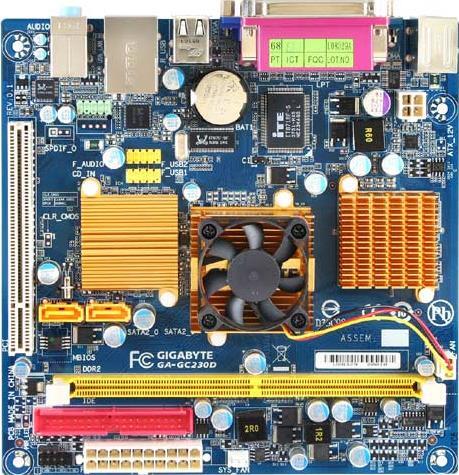

GA-GC230D (Rev. 1.0)
Intel® 945GC+ ICH7 chipset
Especificación
- Procesador
- Built in with an Intel® Atom™ 230 CPU (1.6GHz)
- 512K L2 cache
- Front Side Bus
- 533 MHz FSB
- Chipset
- North Bridge: Intel® 945GC Express Chipset
- South Bridge: Intel® ICH7
- Memoria
- 1 x 1.8V DDR2 DIMM socket supporting up to 2 GB of system memory
- Support for DDR2 533/400 MHz memory module
(Go to GIGABYTE's website for the latest memory support list.)
- Gráficos Integrados
- Integrated in the North Bridge
- Audio
- Realtek ALC662 codec
- High Definition Audio
- 2/4/5.1-channel
- LAN
- Realtek 8101E chip (10/100 Mbit)
- Puertos de Expansión
- 1 x PCI slot
- Interfaz de Almacenamiento
- South Bridge:
- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
- 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
- USB
- Integrated in the South Bridge
- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
- Conectores Internos de E/S
- 1 x 20-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 1 x IDE connector
- 2 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 2 x USB 2.0/1.1 headers
- 1 x chassis intrusion header
- 1 x power LED header
- Conectores del Panel Trasero
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x parallel port
- 1 x serial port
- 1 x D-Sub port
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In/Line Out/Microphone)
- Controlador de E/S
- iTE IT8718 chip
- Monitorización H/W
- System voltage detection
- CPU temperature detection
- CPU/North Bridge/System fan speed detection
- CPU fan speed control
- BIOS
- 1 x 4 Mbit flash
- Use of licensed AWARD BIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
- Características Únicas
- Support for @BIOS
- Support for Download Center
- Support for Q-Flash
- Support for EasyTune
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for Virtual Dual BIOS
- Software Incluido
- Norton Internet Security (OEM version)
- Sistema Operativo
- Support for Microsoft® Windows® XP
- Diseño
- Mini-ITX Form Factor; 17.0cm x 17.0cm
- Otras Descripciones
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
- Procesador
- Built in with an Intel® Atom™ 230 CPU (1.6GHz)
- 512K L2 cache
- Front Side Bus
- 533 MHz FSB
- Chipset
- North Bridge: Intel® 945GC Express Chipset
- South Bridge: Intel® ICH7
- Memoria
- 1 x 1.8V DDR2 DIMM socket supporting up to 2 GB of system memory
- Support for DDR2 533/400 MHz memory module
(Go to GIGABYTE's website for the latest memory support list.)
- Gráficos Integrados
- Integrated in the North Bridge
- Audio
- Realtek ALC662 codec
- High Definition Audio
- 2/4/5.1-channel
- LAN
- Realtek 8101E chip (10/100 Mbit)
- Puertos de Expansión
- 1 x PCI slot
- Interfaz de Almacenamiento
- South Bridge:
- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
- 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
- USB
- Integrated in the South Bridge
- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
- Conectores Internos de E/S
- 1 x 20-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 1 x IDE connector
- 2 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 2 x USB 2.0/1.1 headers
- 1 x chassis intrusion header
- 1 x power LED header
- Conectores del Panel Trasero
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x parallel port
- 1 x serial port
- 1 x D-Sub port
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In/Line Out/Microphone)
- Controlador de E/S
- iTE IT8718 chip
- Monitorización H/W
- System voltage detection
- CPU temperature detection
- CPU/North Bridge/System fan speed detection
- CPU fan speed control
- BIOS
- 1 x 4 Mbit flash
- Use of licensed AWARD BIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
- Características Únicas
- Support for @BIOS
- Support for Download Center
- Support for Q-Flash
- Support for EasyTune
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for Virtual Dual BIOS
- Software Incluido
- Norton Internet Security (OEM version)
- Sistema Operativo
- Support for Microsoft® Windows® XP
- Diseño
- Mini-ITX Form Factor; 17.0cm x 17.0cm
- Otras Descripciones
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
