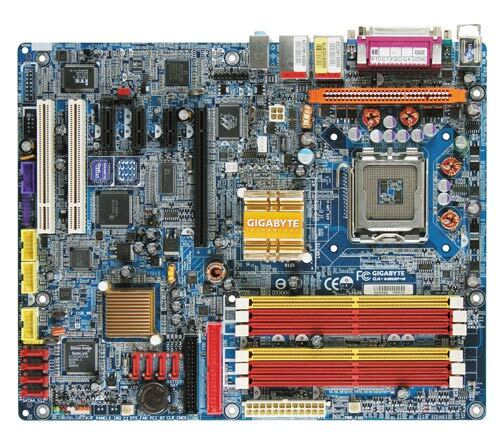

GA-8GNXP-D ‏(rev. 1.x)‏

GA-8GNXP-D the flagship motherboard for GIGABYTE 8Σ series offers a complete range of features dedicated to satisfying all computing needs. Experience next-generation processing with the latest LGA 775 Intel^® Pentium^® 4 Processor with Hyper-Threading Technolgy! The GA-8GNXP-D supports DDR2 main memory. Along with enhanced performance is additional system stability with the GIGABYTE Universal Plus Dual Power System (U-Plus D.P.S.). U-Plus D.P.S. is a revolutionary eight-phase power circuit designed to withstand varying electrical current levels, ensuring future processor upgrades.
The GA-8GNXP-D provides an broad range of peripheral connections by offering IEEE 1394b and USB 2.0 for high-speed data transfer, and high speed Serial ATA for connection of storage devices. The GA-8GNXP-D also offers multimedia advancements through PCI-Express for outstanding graphics output, doubling that of the current AGP8X interface. For improved networking, Dual Gigabit LAN provides simultaneous WAN and LAN connection at a blazing fast network connection speed of up to 1,000 Mbps for both network types. Along with top-notch hardware is the addition of the GIGABYTE Shieldware. Shieldware includes 8 unique software feature elements that are easy to use and focused on making computing both simple and straightforward. Finally to round off the GA-8GNXP-D is home theater-quality sound with your PC using Intel^® High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability.

The new Intel^® 915G Express chipset with Hyper-Threading Technology delivers significant perfomance gains with variety of new generation architectures including dual-channel DDR main memory, PCI-Express inteface, revolutionary graphics experience with Intel^® Media Accelerator 900 Techonoloy,and Serial-ATA interface for improving storage performance.

With new 90nm technology, the world's most advanced chip-making process, it delivers significant gains in performance through the combination of lower-power transistors, strained silicon, high-speed copper interconnects and a new low-k dielectric material.

The new DDR2 main memory architecture delivers maximum bandwidth of 8.5GB/s in dual channel mode, providing highest performance for high memory resource demand applications.

Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface delivers the utmost graphics experience; PCI-E x1interface delivers twice the bandwidth.

U-Plus D.P.S. is a revolutionary eight-phase power circuit designed to withstand varying electrical current levels, ensuring future processor upgrades.

Dual Gigabit LAN connectivity Dual Gigabit LAN provides simultaneous WAN and LAN connection at a blazing fast network connection speed of up to 1,000 Mbps for both network types.

Dual Gigabit Ethernet with Teaming
Teaming allows the two connections to work together to provide up to twice the Ethernetbandwidth for transferring large amounts of data from home file servers to other PCs. It also provides network redundancy through fail-over capability.
TCP/IP Acceleration
Delivers the highest system performance by offloading CPU-intensive packet filtering tasks in hardware, providing users with a PC networking environment that is faster.

This motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video (A/V) appliances, and storage peripherals.

Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.

DualBIOS™ prevents BIOS from virus attacks or firmware damage and provides a double security to the system that assures the PC stability.

Experience home theater-quality sound with your PC using Intel® High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability.

A solid pack of unique software features focused on performing important system essentials with speed and ease. Find out what these great features can do for your system!
