  1. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  2. Supports 45nm Intel® Core™ 2 multi-core processors with FSB 1600 MHz
  3. Deal channel DDR2 1200 for remarkable system performance
  4. Advanced power phase design with virtual 12 power phases to provides highly efficient operation for 45nm CPU
  5. Embedded 2 power phases for NB chipset and 2 phases for memory power to excel at power efficiency
  6. 2 PCI-E 2.0 x16 graphic interface plus PCI-E x4 with CrossFireX ™ support for ultimate graphics performance
  7. Hardware Overvoltage Control IC Provides more voltage control options on CPU, North bridge and memory
  8. All Copper Heat pipe/Heat sink connecting NB, SB, and MOSFET and extra Hybrid Silent-Pipe design provides 30% cooler thermal performance
  9. Professed onboard Debug LED and OV-Alert LED, OC-Alert LED, TMP-Alert LED allows user to easily catch on to PC status
  10. 2 Gigabit Ethernet LAN with Teaming functionality
  11. Supports Dolby Home Theater® audio to create a stunning surround sound listening experience.
  12. DualBIOS solution gives a multiple security to the system
  13. Power/reset/Clr CMOS onboard button for easily operation on th workbench
  14. Maximum CPU keep out zone for extreme CPU cooling
  15. Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio
(Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
  • Introduction

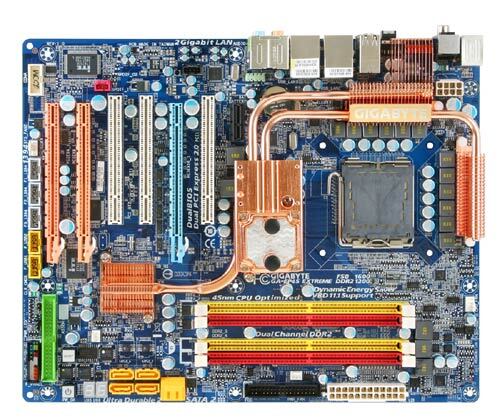

    Designed for overclocking enthusiasts with overwhelming overclocking experience, GIGABYTE GA-EP45-EXTREME is based on Intel P45 chipset, and supports the latest multi-core and 45nm processors up to FSB 1600MHz, featuring dual PCI-E 2.0x16 connectivity with CrossFireX™ supported and dual LAN with teaming for ultra bandwidth.

    GA-EP45-EXTREME equipped with all-copper heat pipe from North Bridge, South Bridge, to CPU MOSFET which provides comprehensive thermal solution, and can be further optimized by a special heat pipe between North Bridge heat sink and PCI socket on your option. Additionally, enhanced with special design around CPU circuit for maximum heat reducing and top quality electronics components, GA-EP45-EXTREME brings unprecedented cool and reliable platform for overclockers.

    Built with GIGABYTE patented Dynamic Energy Saver Advanced technology and Ultra Durable 2 design, GA-EP45-EXTREME delivers ultimate overclocking performance along with maximum stability and advanced power savings.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • کوچک تر، سریع تر و کم مصرف تر
    مادربرد GA-G41M-Combo با پردازنده های 45 نانومتری اینتل ترکیب شده است و ارائه دهنده بهترین پیکره بندی برای انجام کارهای چند منظوره، چند رسانه ای و بازی های ویدئویی سنگین است. مادربردهای جدید گیگابایت که بر پایه چیپ ست Eaglelake تولید می شوند از جدیدترین نسل پردازنده های 45 نانومتری چند هسته ای اینتل پشتیبانی می کنند.


  • Dual Channel DDR2 1333+ MHz
    Delivering native support for DDR2 memory up to 1333MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
    * DDR2 1333+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • PCI-E 2.‎0 Graphic Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIe 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
  • ATI CrossFireX
    With support for ATI CrossFireX, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI Express connectivity, the GA-EP45-EXTREME allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible with a dual graphics card solution.

    Attention: When attempting to enable ATI CrossfireX Technology on this board.In case of unable to get Crossfire Technology working normally, please make sure to use ATI graphic cards that have hardware Crossfire bridge.(Please refer to ATI official website for more Crossfire Technology supporting details: (http://ati.amd.com/technology/crossfire/charts.html)
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
    • Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
    • Designed to automatically deliver the best possible listening experience


  • Hybrid Silent-Pipe
    hybrid-silent pipe is all-copper thermal solution design which combines air cooling with liquid cooling to enable effective heat removal from the north bridge, south bridge and cpu area.

    hybrid-silent pipe combines liquid cooling and air cooling to provide up to 30% cooler operation


  • Dynamic Energy Saver Advanced
    GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 6-Gear* Switching. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

    GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
    * The 6-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.
  • 2‎ Power Phases for Both North Bridge and Memory
    GIGABYTE P45 motherboards are equipped with 2-Phase power for the North Bridge and memory, allowing users to reach higher memory frequencies and enjoy better performance. Compared with only one phase solutions, this ensures longer power component lifespan and higher overclockability due to cooler working temperatures and better efficiency.


  • High Velocity 2X Bandwidth Boost
    the dual lan with teaming functionality enabled allows 2 single connections to act as 1 single connection for 2x bandwidth, improving overall throughput.

    prevents network downtime by transferring the workload from a failed port to a working port.

    receive side scaling balances the network traffic load evenly between 2 cpu cores in order to improve performance.

    adjusts power consumption automatically according to your lan cable lengths, up to 10% power savings.

    (note) to enable teaming or bonding (ieee 802.3ad link aggregation) feature, it is required the connected network switch or router device supports 802.3.ad lacp function.
    please refer to your network switch or router device manual for further details.
  • Hardware Overvoltage Control ICs
    Hardware Overvoltage Control ICs which provide more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control. In addition, Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  • EasyTune6
    شركت گیگابایت با طراحی نرم‌افزار پیشرفته و اختصاصی Easy tune 6، یک امكان مدیریتی كامل را برای مدیریت دما و ولتاژ قطعات سخت‌افزاری در اختیار كاربر قرار می‌دهد كه با وجود آن می‌توان تنظیمات سیستم را به گونه‌ای انجام داد تا بدون بروز مشكل حداكثر كارایی را از قطعات سیستم خود بدست آورید. پس اگر شما یک كاربر علاقه‌مند به اوركلاک و یا كاربر مبتدی باشید به راحتی می‌توانید با استفاده از نرم‌افزار Easy Tune 6 سیستم خود را بهترین نحو تنظیم كنید.


  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
  • Debug LED
    Embedded post code LED display simplifies motherboard signals and indicates system status
  • OV-Alert LED
    Embedded 4 sets of overvoltage LEDs which indicate the OV level of the CPU, memory, NB and SB
  • OC-Alert LED
    The onboard OC-Alert LED indicates the level of CPU overclock, the higher the overclock level, the more the number of burning LEDs
  • TMP-Alert LED
    The two sets of temperature indicator LEDs show the temperature level of the CPU and NB
  • Onboard Quick Switches
    Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.
  • Ultra Durable 2 -Designed with Top Quality Highly Efficient Components

    ultra cooling - low rds(on) mosfet design
    low rds(on) mosfets specially designed to produce lower switching resistance for faster electric current charging and discharging...more


    low power loss - ferrite core choke design
    ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency...more

    longer life - all-solid capacitor design
    solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors...more
  • 5‎0 هزار ساعت عمر مفید خازن‌های جامد ژاپنی
    مادربرد‌های جدید شركت گیگابایت كه بر‌اساس فن آوری UD به بازار ارائه می‌شوند، همگی مجهز به خازن‌های جامدی هستند که توسط بهترین شرکت های ژاپنی تولید شده اند. این خازن‌ها كه 50 هزار ساعت عمر مفید دارند باعث افزایش ثبات و اطمینان سیستم و ماندگاری مادربرد در شرایط سخت كاری می‌شود. این عوامل باعث می شوند تا شما بتوانید از جدیدترین و قدرتمندترین پردازنده ها و قطعات روی سیستم خود اسفاده کنید و سنگین ترین برنامه ها و بازی ها را با آن اجرا کنید. *50000 ساعت عمر مفید خازن ها در دمای 85 درجه سانتیگراد اندازه گیری شده است
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد.‎ گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.‎
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است.‎ کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.‎
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.‎
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.‎
