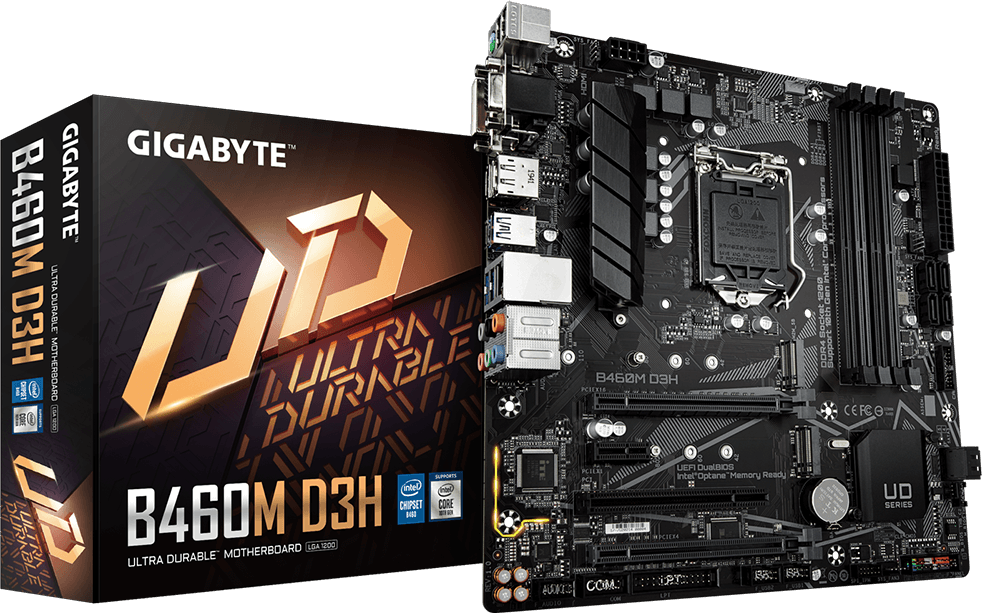

B460M D3H (Rev. 1.0)

Intel® B460 Chipset
Key FeaturesSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Processador
    1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® B460 Express Chipset
  • Memória
    1. Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Gráfica Integrada
  • Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      3. * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
    4. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.2.
    Support for up to 3 displays at the same time
    Maximum shared memory of 512 MB
  • Áudio
    1. Realtek® ALC1200 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
  • LAN
    1. Intel® GbE LAN chip (1 Gbit/100 Mbit)
  • Slots de Expansão
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 1 x PCI Express x1 slot
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    4. 1 x PCI slot
    Supports up to ASPM L1.2 power management protocols.
  • Tecnologias de Múltiplas Gráficas
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Interface de Armazenamento
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
    3. 6 x SATA 6Gb/s connectors
    4. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    5. Intel® Optane™ Memory Ready
      * System Acceleration with Intel® Optane™ Memory enabled on the M2M_SB connector only.
    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
  • USB
  • Chipset:
    1. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
    3. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Conectores I/O internos
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 2 x M.2 Socket 3 connectors
    6. 6 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 2 x USB 2.0/1.1 headers
    11. 2 x Thunderbolt™ add-in card connectors
    12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    13. 1 x serial port header
    14. 1 x parallel port header
    15. 1 x Clear CMOS jumper
  • Painel I/O Traseiro
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x DisplayPort
    5. 1 x HDMI port
    6. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
    7. 3 x USB 3.2 Gen 1 ports
    8. 2 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 6 x audio jacks
  • Controlador I/O
    1. iTE® I/O Controller Chip
  • Monitorização H/W
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Outras Características
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      Ambient LED
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Observação
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Processador
      1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® B460 Express Chipset
    • Memória
      1. Intel® Core™ i9/i7 processors:
        Support for DDR4 2933/2666/2400/2133 MHz memory modules
      2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
        Support for DDR4 2666/2400/2133 MHz memory modules
      3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      4. Dual channel memory architecture
      5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      7. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Gráfica Integrada
    • Integrated Graphics Processor-Intel® HD Graphics support:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
        3. * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
        * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
      4. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
        * Support for HDMI 1.4 version and HDCP 2.2.
      Support for up to 3 displays at the same time
      Maximum shared memory of 512 MB
    • Áudio
      1. Realtek® ALC1200 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
    • LAN
      1. Intel® GbE LAN chip (1 Gbit/100 Mbit)
    • Slots de Expansão
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      3. 1 x PCI Express x1 slot
        (All of the PCI Express slots conform to PCI Express 3.0 standard.)
      4. 1 x PCI slot
      Supports up to ASPM L1.2 power management protocols.
    • Tecnologias de Múltiplas Gráficas
      1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    • Interface de Armazenamento
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
      2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
      3. 6 x SATA 6Gb/s connectors
      4. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
        * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
      5. Intel® Optane™ Memory Ready
        * System Acceleration with Intel® Optane™ Memory enabled on the M2M_SB connector only.
      M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
    • USB
    • Chipset:
      1. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
      2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
      3. 2 x USB 2.0/1.1 ports on the back panel
      Chipset+USB 2.0 Hub:
      1. 4 x USB 2.0/1.1 ports available through the internal USB headers
    • Conectores I/O internos
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x CPU fan header
      4. 3 x system fan headers
      5. 2 x M.2 Socket 3 connectors
      6. 6 x SATA 6Gb/s connectors
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x USB 3.2 Gen 1 header
      10. 2 x USB 2.0/1.1 headers
      11. 2 x Thunderbolt™ add-in card connectors
      12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      13. 1 x serial port header
      14. 1 x parallel port header
      15. 1 x Clear CMOS jumper
    • Painel I/O Traseiro
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x DisplayPort
      5. 1 x HDMI port
      6. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
      7. 3 x USB 3.2 Gen 1 ports
      8. 2 x USB 2.0/1.1 ports
      9. 1 x RJ-45 port
      10. 6 x audio jacks
    • Controlador I/O
      1. iTE® I/O Controller Chip
    • Monitorização H/W
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Overheating warning
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Outras Características
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        Ambient LED
        EasyTune
        Fast Boot
        Game Boost
        ON/OFF Charge
        Smart Backup
        System Information Viewer
      2. Support for Q-Flash
      3. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
    • Sistema Operativo
      1. Support for Windows 10 64-bit
    • Form Factor
      1. Micro ATX Form Factor; 24.4cm x 24.4cm
    • Observação
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
