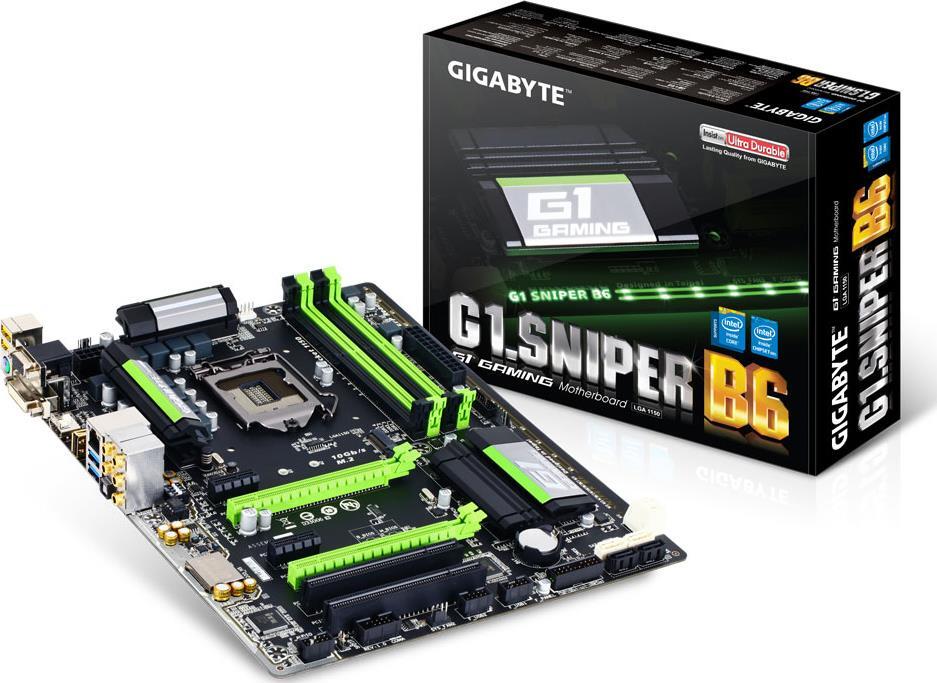

G1.Sniper B6 (Rev. 1.0)

Intel® B85 Chipset
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Processador
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® B85 Express Chipset
  • Memória
    1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 1600/1333 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Gráfica Integrada
  • Integrated Graphics Processor - Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160
      * Support for HDMI 1.4a version.
    4. Support for up to 3 displays at the same time
    5. Maximum shared memory of 1 GB
  • Áudio
    1. Realtek® ALC1150 codec
    2. TI Burr Brown® OPA2134 operational amplifier
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out
    • LAN
      1. Intel® GbE LAN chip (10/100/1000 Mbit)
    • Slots de Expansão
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)

      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        * The M.2 socket shares bandwidth with the PCIEX4 slot. When the M.2 socket is populated, the PCIEX4 slot will operate at up to x2 mode.

      3. 2 x PCI Express x1 slots
        (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

      4. 2 x PCI slots
    • Tecnologias de Múltiplas Gráficas
      1. Support for AMD CrossFire™ technology
    • Interface de Armazenamento
    • Chipset:
      1. 4 x SATA 6Gb/s connectors
      2. 2 x SATA 3Gb/s connectors
      3. 1 x M.2 Socket 3 connector
        * Support for M.2 PCIe SSDs only.
        * The M.2 socket shares bandwidth with the PCIEX4 slot. When the M.2 socket is populated, the PCIEX4 slot will operate at up to x2 mode.
    • USB
    • Chipset:
      1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
      2. 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
    • Conectores I/O internos
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x M.2 Socket 3 connector
      4. 4 x SATA 6Gb/s connectors
      5. 2 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 3 x system fan headers
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x S/PDIF Out header
      11. 1 x USB 3.0/2.0 headers
      12. 2 x USB 2.0/1.1 headers
      13. 1 x serial port header
      14. 1 x Clear CMOS jumper
      15. 1 x audio gain control switch
    • Painel I/O Traseiro
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 2 x USB 3.0/2.0 ports
      6. 3 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 1 x optical S/PDIF Out connector
      9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
    • Controlador I/O
      1. iTE® I/O Controller Chip
    • Monitorização H/W
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Outras Características
      1. Support for Q-Flash
      2. Support for Xpress Install
      3. Support for APP Center
        * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
        @BIOS
        EasyTune
        EZ Setup
        USB Blocker
      4. Support for ON/OFF Charge
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. Intel® Rapid Start Technology
      3. Intel® Smart Connect Technology
      4. cFosSpeed
    • Sistema Operativo
      1. Support for Windows 10/8.1/8/7
    • Form Factor
      1. ATX Form Factor; 30.5cm x 23.4cm
    • Observação
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
      • Processador
        1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
        2. L3 cache varies with CPU
        (Please refer "CPU Support List" for more information.)
      • Chipset
        1. Intel® B85 Express Chipset
      • Memória
        1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
          * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
        2. Dual channel memory architecture
        3. Support for DDR3 1600/1333 MHz memory modules
        4. Support for non-ECC memory modules
        5. Support for Extreme Memory Profile (XMP) memory modules
        (Please refer "Memory Support List" for more information.)
      • Gráfica Integrada
      • Integrated Graphics Processor - Intel® HD Graphics support:
        1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
        2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
          * The DVI-D port does not support D-Sub connection by adapter.
        3. 1 x HDMI port, supporting a maximum resolution of 4096x2160
          * Support for HDMI 1.4a version.
        4. Support for up to 3 displays at the same time
        5. Maximum shared memory of 1 GB
      • Áudio
        1. Realtek® ALC1150 codec
        2. TI Burr Brown® OPA2134 operational amplifier
        3. High Definition Audio
        4. 2/4/5.1/7.1-channel
        5. Support for S/PDIF Out
        • LAN
          1. Intel® GbE LAN chip (10/100/1000 Mbit)
        • Slots de Expansão
          1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
            * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
            (The PCIEX16 slot conforms to PCI Express 3.0 standard.)

          2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
            * The M.2 socket shares bandwidth with the PCIEX4 slot. When the M.2 socket is populated, the PCIEX4 slot will operate at up to x2 mode.

          3. 2 x PCI Express x1 slots
            (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

          4. 2 x PCI slots
        • Tecnologias de Múltiplas Gráficas
          1. Support for AMD CrossFire™ technology
        • Interface de Armazenamento
        • Chipset:
          1. 4 x SATA 6Gb/s connectors
          2. 2 x SATA 3Gb/s connectors
          3. 1 x M.2 Socket 3 connector
            * Support for M.2 PCIe SSDs only.
            * The M.2 socket shares bandwidth with the PCIEX4 slot. When the M.2 socket is populated, the PCIEX4 slot will operate at up to x2 mode.
        • USB
        • Chipset:
          1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
          2. 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
        • Conectores I/O internos
          1. 1 x 24-pin ATX main power connector
          2. 1 x 8-pin ATX 12V power connector
          3. 1 x M.2 Socket 3 connector
          4. 4 x SATA 6Gb/s connectors
          5. 2 x SATA 3Gb/s connectors
          6. 1 x CPU fan header
          7. 3 x system fan headers
          8. 1 x front panel header
          9. 1 x front panel audio header
          10. 1 x S/PDIF Out header
          11. 1 x USB 3.0/2.0 headers
          12. 2 x USB 2.0/1.1 headers
          13. 1 x serial port header
          14. 1 x Clear CMOS jumper
          15. 1 x audio gain control switch
        • Painel I/O Traseiro
          1. 1 x PS/2 keyboard/mouse port
          2. 1 x D-Sub port
          3. 1 x DVI-D port
          4. 1 x HDMI port
          5. 2 x USB 3.0/2.0 ports
          6. 3 x USB 2.0/1.1 ports
          7. 1 x RJ-45 port
          8. 1 x optical S/PDIF Out connector
          9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
        • Controlador I/O
          1. iTE® I/O Controller Chip
        • Monitorização H/W
          1. System voltage detection
          2. CPU/System temperature detection
          3. CPU/System fan speed detection
          4. CPU/System overheating warning
          5. CPU/System fan fail warning
          6. CPU/System fan speed control
            * Whether the fan speed control function is supported will depend on the cooler you install.
        • BIOS
          1. 2 x 64 Mbit flash
          2. Use of licensed AMI UEFI BIOS
          3. Support for DualBIOS™
          4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
        • Outras Características
          1. Support for Q-Flash
          2. Support for Xpress Install
          3. Support for APP Center
            * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
            @BIOS
            EasyTune
            EZ Setup
            USB Blocker
          4. Support for ON/OFF Charge
        • Bundled Software
          1. Norton® Internet Security (OEM version)
          2. Intel® Rapid Start Technology
          3. Intel® Smart Connect Technology
          4. cFosSpeed
        • Sistema Operativo
          1. Support for Windows 10/8.1/8/7
        • Form Factor
          1. ATX Form Factor; 30.5cm x 23.4cm
        • Observação
          1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
          2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

          * Os termos HDMI, HDMI High-Definition Multimedia Interface (interface multimédia de alta-definição), a apresentação comercial HDMI e os Logótipos HDMI são marcas comerciais ou marcas registadas da HDMI Licensing Administrator, Inc.
          * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
          * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
          * All trademarks and logos are the properties of their respective holders.
          * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
