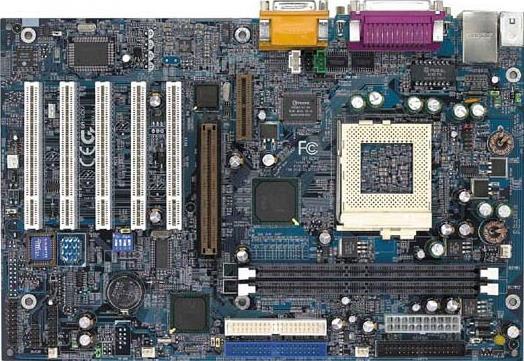

GA-6CX7-1

SpecificationsSupportWhere to Buy

Specifications

  • Processador
    1. Socket 370 for Intel® FC-PGA
    2. Pentium® III or other compatible processors
    3. Supports CPU multiplier 3.0~8.0 for future processors
    4. Auto/100/110*/120*/133/140*/150* MHz FSB
    5. AUTO detect CPU voltage
  • Chipset
    1. Intel® 820 AGPset
    2. AC97 codec
    3. Winbond W83627HF health chip
  • Memória
    1. 64MB to 1GB memory size
    2. 2 x RIMM sockets
    3. Supports 64/128/256/512 MB RAMBUS RIMM module
    4. Supports ECC type RIMM module
  • Slots de Expansão
    1. 1 x AGP slot supports 2X/4X mode
    2. 1 x AMR (Audio Modem Riser) slot
    3. 5 x PCI slots support 33MHz & PCI 2.2 compliant
  • Controlador I/O
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. IrDA header ready
  • Monitorização H/W
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors; Case open detection
    3. System health status detect & report by BIOS, LDCM®
    4. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. 4Mbit flash RAM
    2. BIOS with enhanced ACPI feature for PC99/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX , 4 layer PCB (30.5*20.6cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. Intel® LDCM® utility
    3. Intel® 820 patch utility for Windows 95/98
    4. Creative PCI sound driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN header (WOL); Includes Wake-On-Ring (WOR)
    3. Poly fuse for keyboard, USB & game overcurrent protection
  • Power
    1. ATX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 shut down & switch
    4. Supports USB device wake-up
    5. Suspend / Wake-on by ACPI & APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support
    7. Stop CPU fan during entering suspend mode
  • Processador
    1. Socket 370 for Intel® FC-PGA
    2. Pentium® III or other compatible processors
    3. Supports CPU multiplier 3.0~8.0 for future processors
    4. Auto/100/110*/120*/133/140*/150* MHz FSB
    5. AUTO detect CPU voltage
  • Chipset
    1. Intel® 820 AGPset
    2. AC97 codec
    3. Winbond W83627HF health chip
  • Memória
    1. 64MB to 1GB memory size
    2. 2 x RIMM sockets
    3. Supports 64/128/256/512 MB RAMBUS RIMM module
    4. Supports ECC type RIMM module
  • Slots de Expansão
    1. 1 x AGP slot supports 2X/4X mode
    2. 1 x AMR (Audio Modem Riser) slot
    3. 5 x PCI slots support 33MHz & PCI 2.2 compliant
  • Controlador I/O
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. IrDA header ready
  • Monitorização H/W
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors; Case open detection
    3. System health status detect & report by BIOS, LDCM®
    4. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. 4Mbit flash RAM
    2. BIOS with enhanced ACPI feature for PC99/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX , 4 layer PCB (30.5*20.6cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. Intel® LDCM® utility
    3. Intel® 820 patch utility for Windows 95/98
    4. Creative PCI sound driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN header (WOL); Includes Wake-On-Ring (WOR)
    3. Poly fuse for keyboard, USB & game overcurrent protection
  • Power
    1. ATX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 shut down & switch
    4. Supports USB device wake-up
    5. Suspend / Wake-on by ACPI & APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support
    7. Stop CPU fan during entering suspend mode

* Os termos HDMI, HDMI High-Definition Multimedia Interface (interface multimédia de alta-definição), a apresentação comercial HDMI e os Logótipos HDMI são marcas comerciais ou marcas registadas da HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
